Off Grid Solar Inverter

off grid 30kw three phase inverter 100kw solar inverter with IGBT material

Product Specification:
  • Brand Name : TANFON
  • Model Number : T30K~200K
  • Output Power : 30kw~200kw
  • Output Type : Three phase
Inquiry Now
Product Details

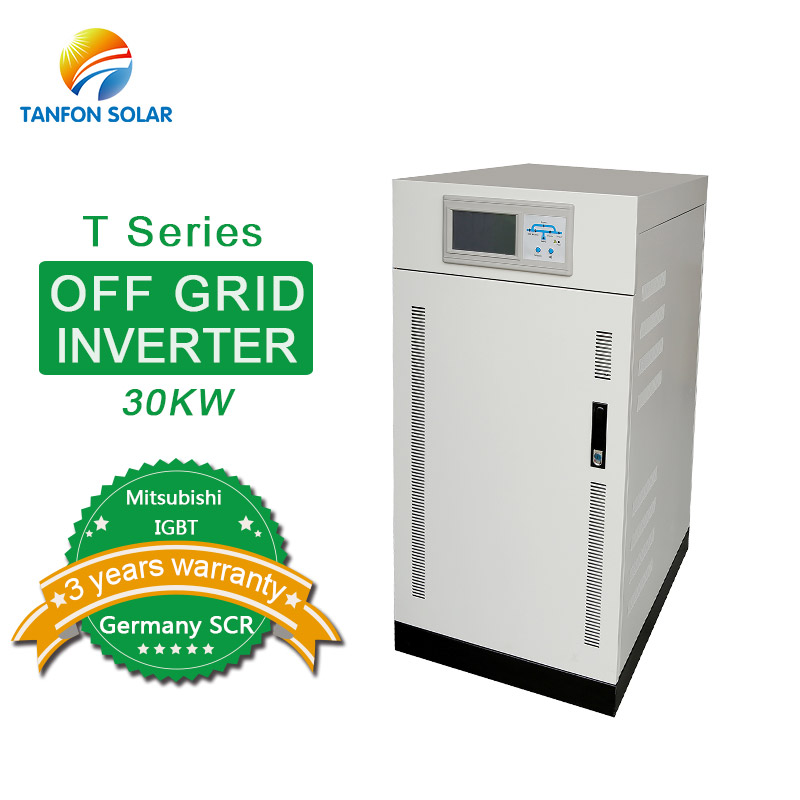

30KW three phase inverter

T series 30kw~200kw three phase solar inverter feature:

1. With AC reactor  (Protect against city power current shock)

2. Double protection. (Two fuses, including the city power security and battery power security)

3. Thyristor charging. (The thyristor charging current is larger than charging board one.The thyristor charging current could reach to 40-50a while the charging board is only 10a-15a)

4. IGBT converter. (High 95% transfer efficiency and strong anti-loading shock capacity)

5. AC filter capacitor.( Have stabilizing voltage function and pure sine wave output)

6. Under normal working condition when taking the loads, the machine can run as usual even when cut out the battery power.(Strong capacity for anti-shock, stable function)

7. IGBT brand: Mitsubishi (import from Japan), Thyristor charging brand: Simon Kang Brand(import from German)

8. single to 3 phase converter with transformer,IGBT materials, Isolation, output reactance,easy take hostipal's surgical equipment



Product Details

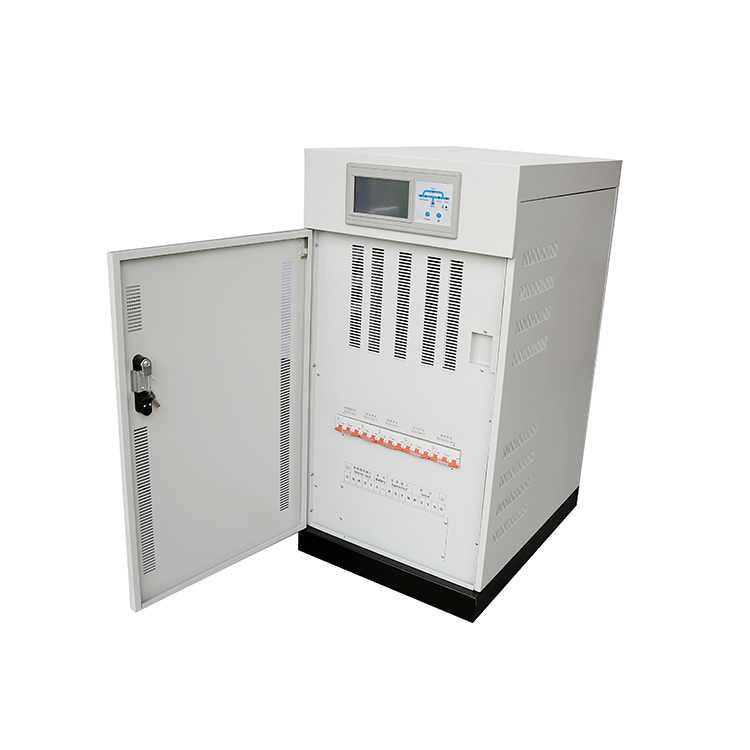

30KW three phase inverter

Technical Data

T series 30kw~200kw three phase inverter

Model T30K T40K T60K T100K T150K T200K
Power 30KW 40KW 60KW 100KW 150KW 200KW
Input Phase 3 phase 4 wire and ground

Voltage Range

380V±20%(3 phase), phase voltage 220V
Frequency Range 45-65HzV
Rectifier 3 phase 6 pulses, 12 pulses is optional
Output Phase 3 phase 4 wire and ground
Wave form Pure sine wave
Crest Factor 3:01
Rated Voltage 380/400/415V optional ±1% for static load, 5% forfluctuant load
Phase Voltage setting 200-244VAC, pls confirm when order
Transient Response ±5%,10ms
Frequency 50/60 Hz ±0.05%
Total-harmonic distortion < 3% linear load, <5%(nonlinear load)
short circuit current Short current for 0.1s(200% current)
Overload Capacity Overload 125% for 10 Mins, 125%-150% for 1min, automatically resume when load become normal
Bypass Type Static state +manual maintenance bypass
Input Phase 3 phase 4wire and ground
Input Voltage Range 15% - 25% (the front control panel selectable)
Transfer Time Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms
Efficiency Whole unit >85%
Inverter 93
Remote Signaling Dry contact (battery low, battery discharging, bypass / fault); output 12vdc/80mA, Optional parts
Environment Temperature 0-40 degree Celsius
Relative Humidity Less than 95% (without condensing)
Noise <60dB
Degree of protection IP20
Dimension(mm) 1000*660*1460 1100*660*1460 1500*840*1800
Package Size(mm) 1150*780*1700  1280*1080*1700 1680*1020*2000
Net Weight(kg) 190 350 690 800 1050 1100
Gross Weight(kg) 215 380 750 930 1100 1130

Application

T series three phase inverter for off grid solar system

30KW three phase inverter

Case

30KW three phase inverter

T series three phase inverter for Haiti 100KW off grid solar system project

Certificate

We have ISO9001, CE, RoHS etc.

Tanfon Certificate

Inverter Packing

solar inverter packing

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
