Off Grid Solar Inverter
HOME/Off Grid Solar Inverter

Off Grid Solar Inverter

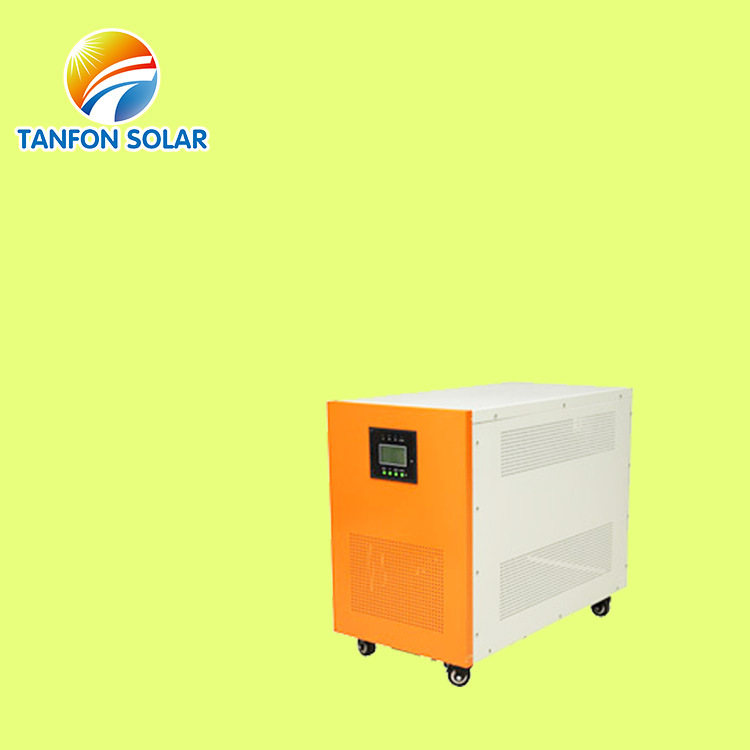

5KW off grid solar inverter with mppt charge controller

Product Specification:
  • Brand Name : TANFON
  • Model Number : SC5K
  • Output Power : 5KW
  • Output Type : Single
Inquiry Now
Product Details

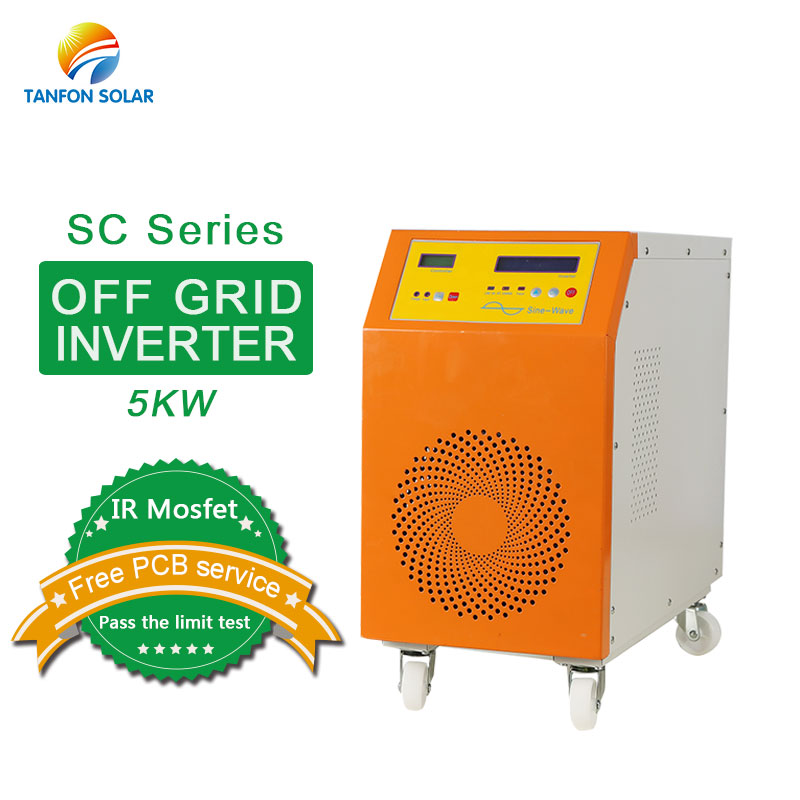

SC series 5kw off grid solar inverter feature

1.Combine with solar power controller and inverter hybrid function.

2.Completely controlled by CPU.output have 5V and 12V USB,can take LED light and mobile phone

3.Inverter use copper transformer, pure sine wave output.

4..LCD displays, clearly to know the status.

5.have bypass function and AC charger (UPS function,working automatically)

6.Perfect protection. Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection ,etc.

7.city grid power and solar power complementary. When there are not sunshine and battery power used off ,inverter will charge from city power automatically to take the loads and charge battery ,keep the solar power system working 24 hours ,have switch city power charge and solar power charge,you can change any time

SC series 5kw off grid solar inverter data sheet

Model SC5000
Rated power(W) 5000W
Rated DC voltage(V) 48Vor 96V
Line input Input voltage(V) 145-280V, 90-127V
Charge current(A) 10-30A
Inverter output Output voltage(V) 110V or 120V or 220V or 230V or 240VAC±5%, &5V,12V DC port
Output frequency 50Hz/60Hz±1%
Wave form Pure Sine Wave, THD<4%(Full Load)
Solar input Maximum voltage(V) (48v)88v; (96v)176v
Rated power(Wp) 5000Wp
Solar Controller Charge current(A) 60A
MPPT range(V) 48V(40-68), 96V(80-136)
Charging efficiency 90%-95%, Peak on 97%
Other Over charge protective voltage of battery(V) 48V(57.2V); 96V(114V)
Over charge recover-voltage of battery(V) 48V(54.7V); 96V(109.6V)
Voltage drop between solar
module and battery(V)
≤0.5V
Voltage drop between loads
and battery(V)
≤0.25V
Start speed of cooling fan Have
Environment Humidity 0-90% Maximum,non-condensable
Protective Functions Protection against anti-charge at night;
Battery over charge;over discharge protection; Joint-reversed of solar modules
Control method MPPT
Size :D*W*H(mm) 465*220*480
N.W&G.W(kg) 45/52

Project

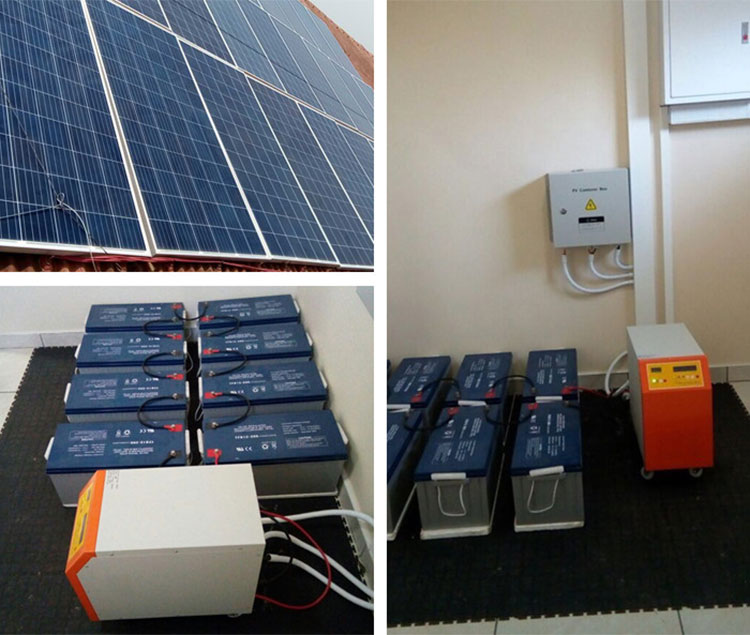

SC series 5kw off grid solar inverter for solar system

5kw off grid solar inverter for solar system

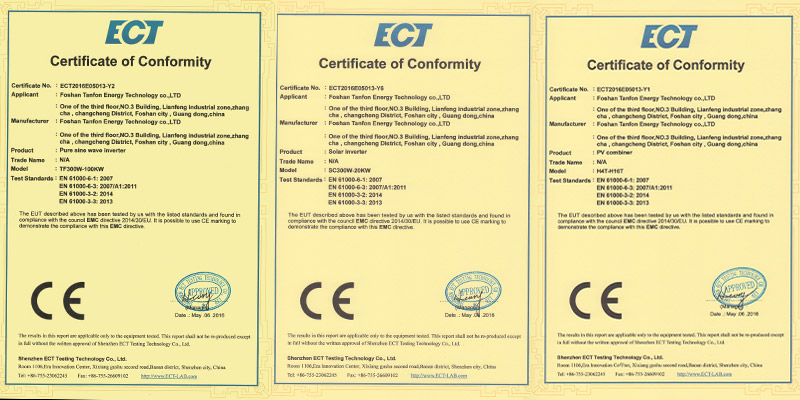

Certifications:

5kw off grid solar inverter

Why Choose Tanfon?

Power peak power is three times of the rated power.

Multifunctional operating interface:

      1. Ajustable charging current: End user can adjust AC charging current according to their own needs

  1. Optional battery mode: Different working mode for different battery type, which makes our inverter work under best situation

  2. Adjustable mains priority and inverter priority mode:

          Mains priority: when AC mains and DC battery are connected at the same time, inverter choose AC mains for priority AC output

          Inverter priority: when AC mains and DC battery are connected at the same time,inverter converts DC battery power for priority AC output.

          Customers can choose mains priority or inverter priority mode according to their own needs, and can switch them at any time.

  1. AC main input frequency automatic recognition:our inverter can automatically recognize 50HZ and 60HZ AC input, we guarantee our inverter provides 50HZ AC output from 50HZ AC mains, and provide 60HZ AC output from 60HZ AC mains, to ensure inverter provides normal input and output and to ensure the loading works properly.

Inverter Packing

5kw off grid solar inverter

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
