FOSHAN TANFON ENERGY TECHNOLOGY CO.,LTD
Off Grid Solar Inverter
HOME/Off Grid Solar Inverter

Off Grid Solar Inverter

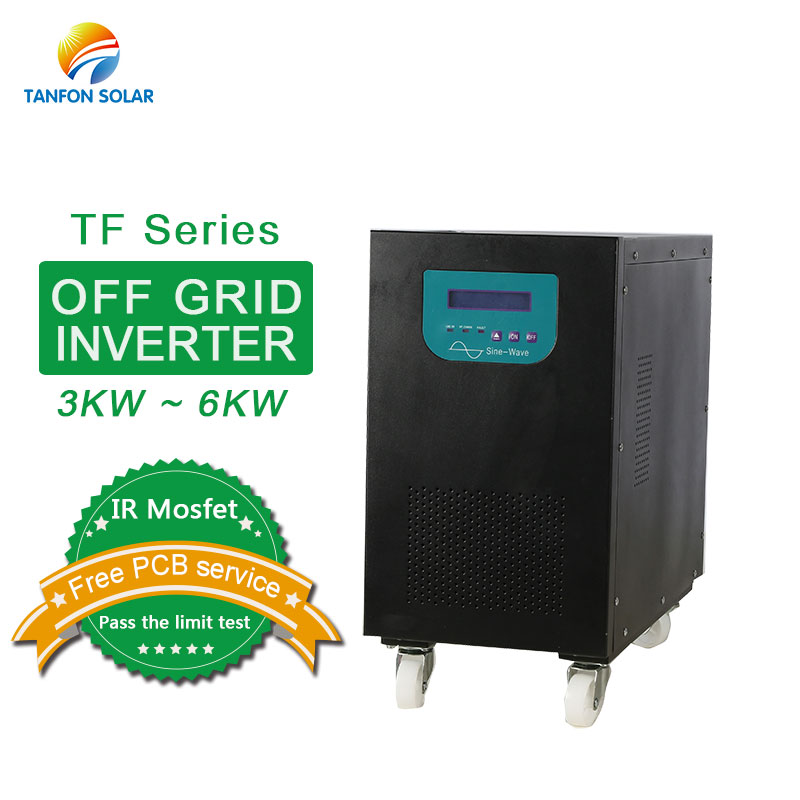

Off grid single phase 3KW 4KW 5KW 6KW solar inverter

Product Specification:
  • Brand Name : TANFON
  • Model Number : TF3K-6K
  • Output Power : 3KW-6KW
  • Output Type : Single phase
Inquiry Now
Product Details

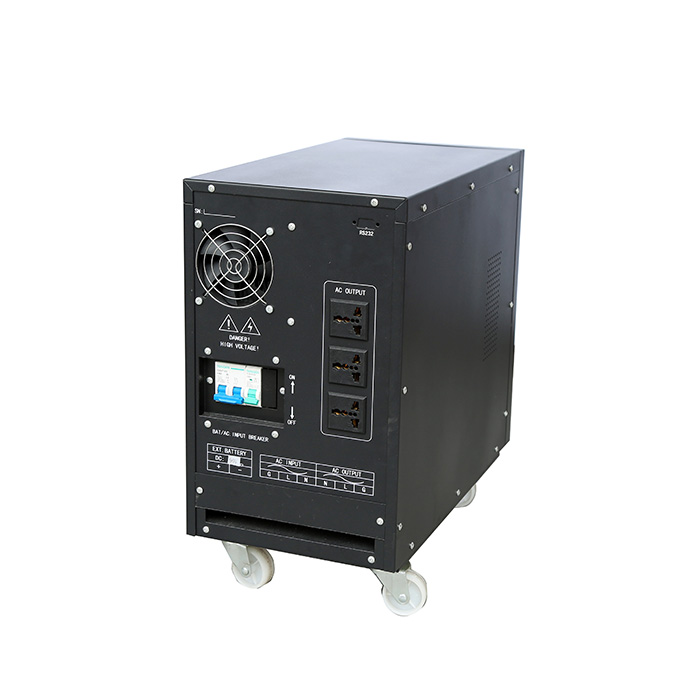

tanfon inverter

TF series solar inverter for home feature:

  • Super wide input voltage: 145V---280VAC;
  • Completely controlled by CPU,
  • Protection against output short-circuit; Against overload, and when you throw off its load, it will turn on the unit automatically.
  • Functions that when the AC comes in, it will start the unit automatically.
  • Different DC volage: 12V, 24V, 36V, 48V, 96V, 192V, 240V for optional
  • Output pure sine wave: 220V+-3%.
  • It can drive impactive loads, such as lightings, TV sets, fans, refrigerators and air-conditioner, wind power motor, solar panel etc.
  • It's humanized design, when the AC comes, it will start the unit automatically; And when it overload, it will also close the unit automatically, when you cancel the load, then it will return to work automatically.
  • ATM inverter, RS232 software, SNMP card for optional.

TF series solar inverter for home details:

TF series solar inverter for home technical data:

Model TF3K TF4K TF5K TF6K
Capacity(W) 3000 4000 5000 6000
DC voltage(V) 48 48/96 48/96 48/96
Input voltage(V) 160-265VAC
Input frequency 45-65HZ
Output voltage Four steps AVR, 110V/120V/220V/230V for optional
Output wave form Pure sine wave
THD ≤ 3%
Low-voltage protection(V) 39/78 39/78 39/78 39/78
Over voltage protection(V) 60/120 60/120 60/120 60/120
Recharge current 15-25A 15-25A 20-30A 15-25A
Unit size(mm) 473*220*386 473*230*490
Transfer efficiency 87%--90%
Protections Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection
Over load 120% of the rate capacity
Short circuit 300% of the rate capacity

Application

TF series solar inverter for solar system

Certificate

We have ISO9001, CE, RoHS etc.

Tanfon Certificate

Inverter Packing

solar inverter packing

Tanfon inverter factory

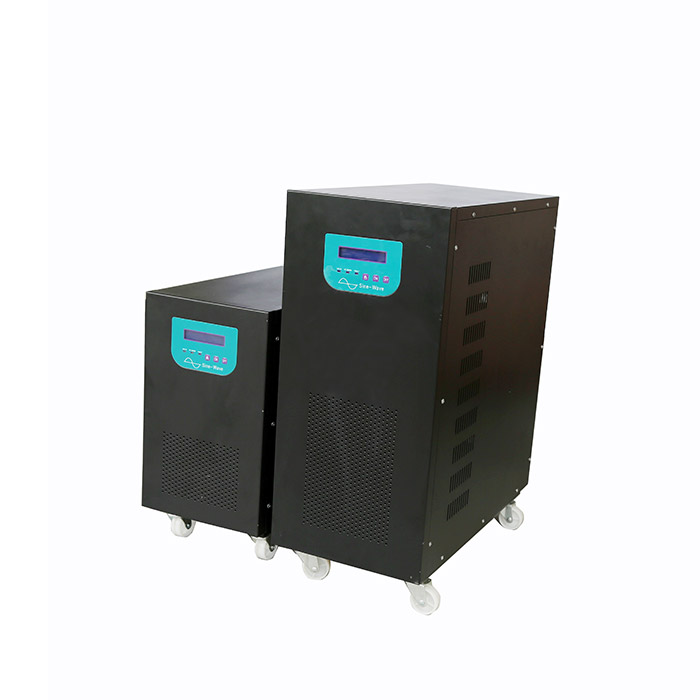

6kw solar inverter

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
