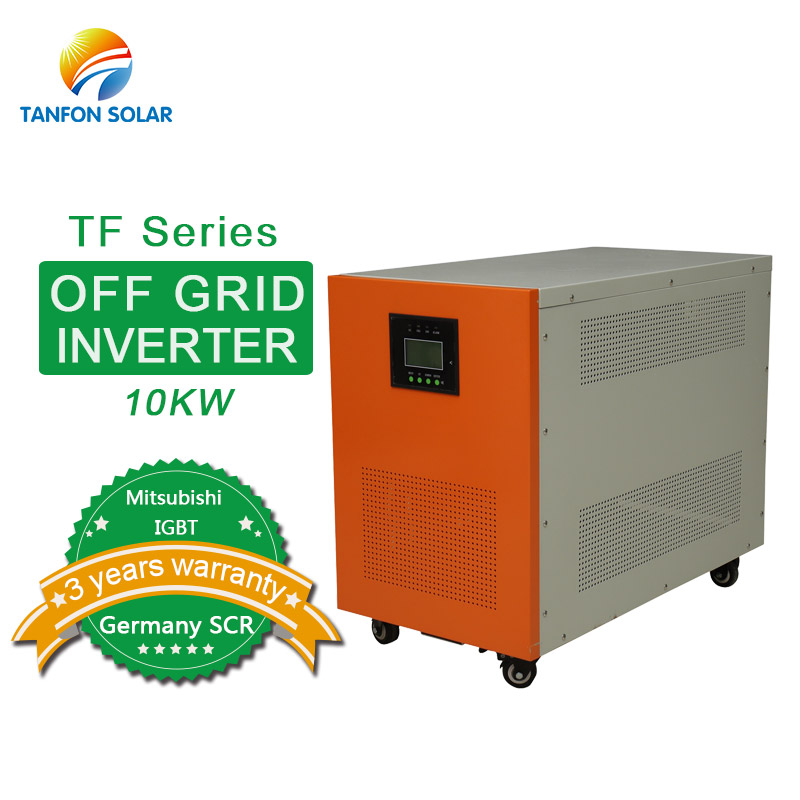

Off grid single phase 10KW IGBT solar inverter

Product Specification:
  • Brand Name : TANFON
  • Model Number : TF10K-IGBT
  • Output Power : 10KW
  • Output Type : Single
Inquiry Now
Product Details

IGBT solar inverter

TF series IGBT solar inverter features:

  • Super wide input voltage: 160V---280VAC;
  • Completely controlled by CPU,
  • Protection against output short-circuit; Against overload, and when you throw off its load, it will turn on the unit automatically.
  • Functions that when the AC comes in, it will start the unit automatically.
  • Different DC volage: 12V, 24V, 36V, 48V, 96V, 192V, 240V for optional
  • Output pure sine wave: 220V+-3%.
  • It can drive impactive loads, such as lightings, TV sets, fans, refrigerators and air-conditioner, wind power motor, solar panel etc.
  • It's humanized design, when the AC comes, it will start the unit automatically; And when it overload, it will also close the unit automatically, when you cancel the load, then it will return to work automatically.
  • ATM inverter, RS232 software, SNMP card for optional.
  • 100% import IGBT, IGBT brand: Mitsubishi (import from Japan)

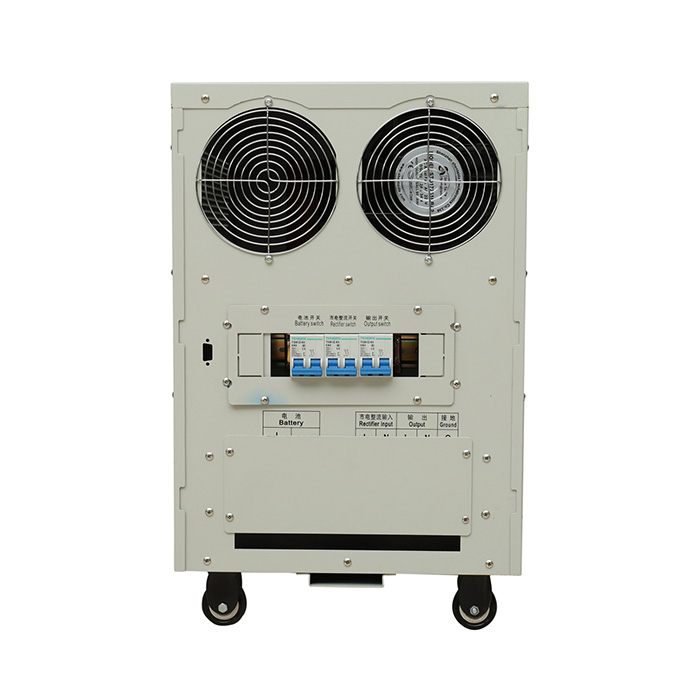

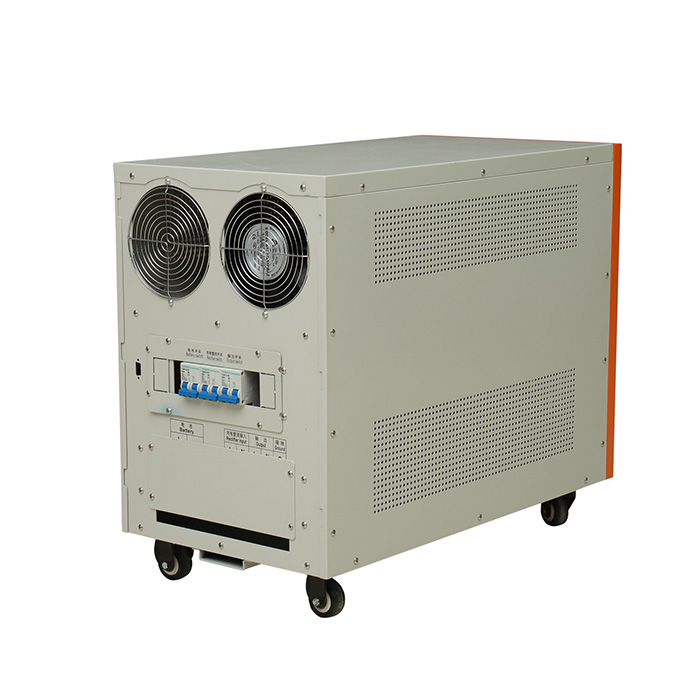

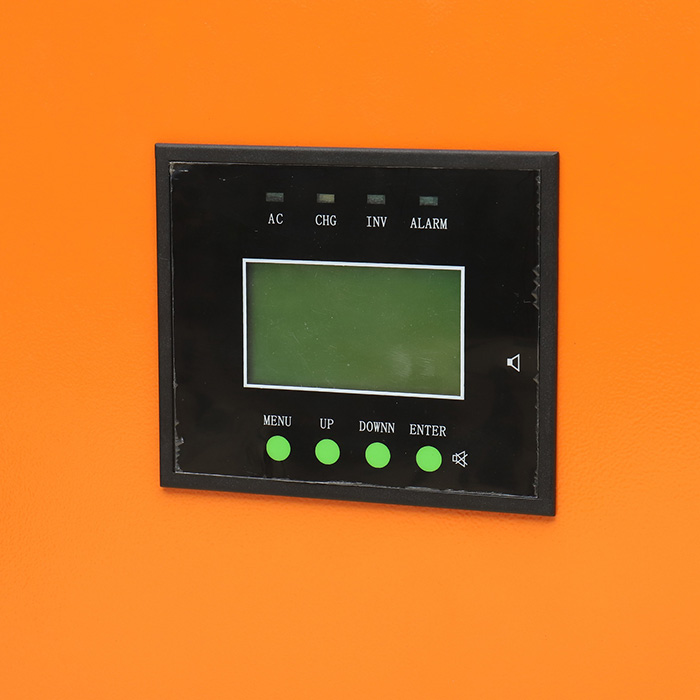

TF series 10KW IGBT solar inverter details:

IGBT solar inverter

TF series 10KW IGBT solar inverter technical data:

Model TF10K- IGBT
Capacity(KW) 10KW
DC voltage(V) 96V
Input voltage(V) 160-280VAC
Input frequency 45-65HZ
Output voltage Four steps AVR, 110V/120V/220V/230V for optional
Output wave form Pure sine wave
THD ≤ 3%
Low-voltage protection(V) 78
Over voltage protection(V) 120
Recharge current 20-30A
Unit size(mm) 570*290*200
Transfer efficiency 87%--90%
Protections Protection against short-circuit, over load, high-voltage, reverse polarity protection and low-voltage protection
Over load 110% of the rate capacity
Short circuit 120% of the rate capacity

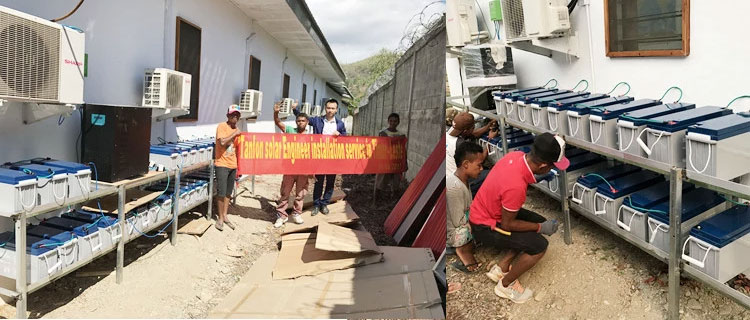

Application

TF series solar inverter for solar system

IGBT solar inverter

Certificate

We have ISO9001, CE, RoHS etc.

IGBT solar inverter

Inverter Packing

IGBT solar inverter

Tanfon inverter factory

12 years experience in the inverter industry, can design as per customer needs, and OEM/ODM production.

ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate.

Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable.

Pre-sale: VIP service attitude, reply to inquiry within 5 minutes, design suitable products for customers.

In-sale: Update production information for customers every day to inform production status.

After-sale: One-to-one installation service support; engineer team provides technical support in 24 hours.

IGBT solar inverter

What is IGBT inverter,click to know more.

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
