Off Grid Solar Inverter

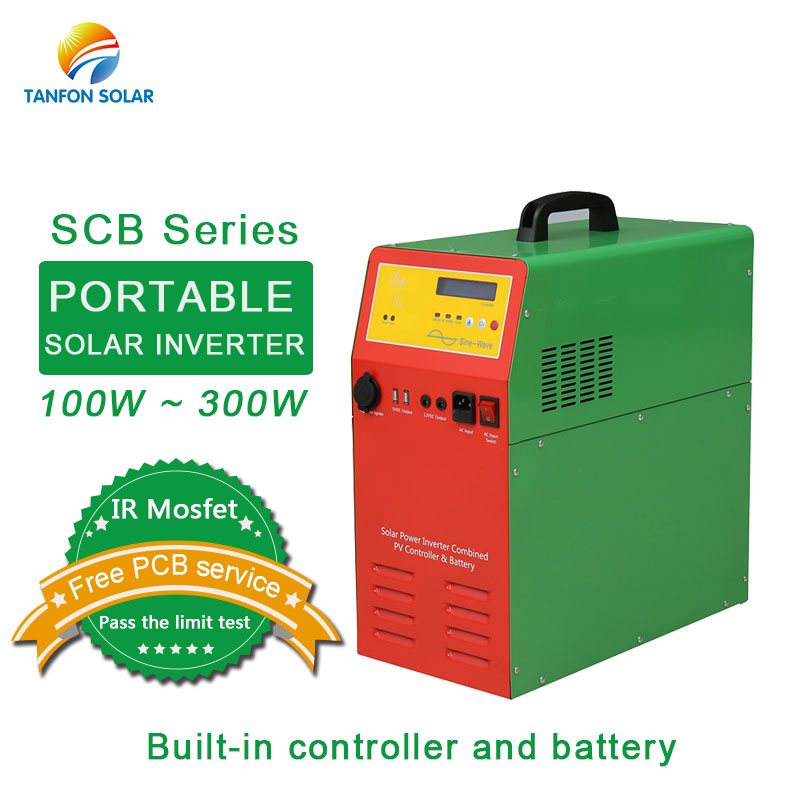

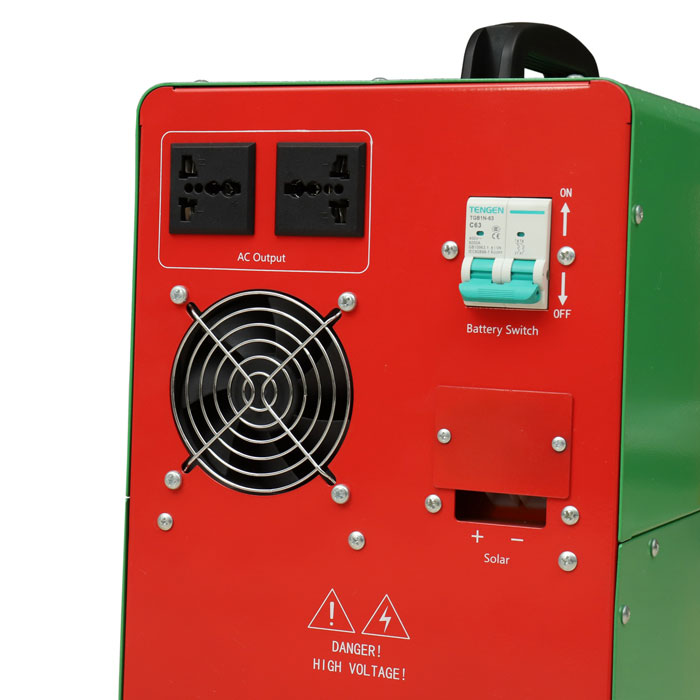

SCB series portable solar inverter generator

Product Specification:
  • Brand Name : TANFON
  • Model Number : SCB100W~SCB300W
  • Output Power : 100W~300W
  • Output Type : Single
Inquiry Now
Product Details

portable solar inverter generator

SCB series portable solar inverter generator features:

1.Solar power controller and inverter with AGM free maintenance battery together
2.Completely controlled by CPU.
3.Inverter use copper transformer, pure sine wave output.
4.Have 5V,12V DC output.

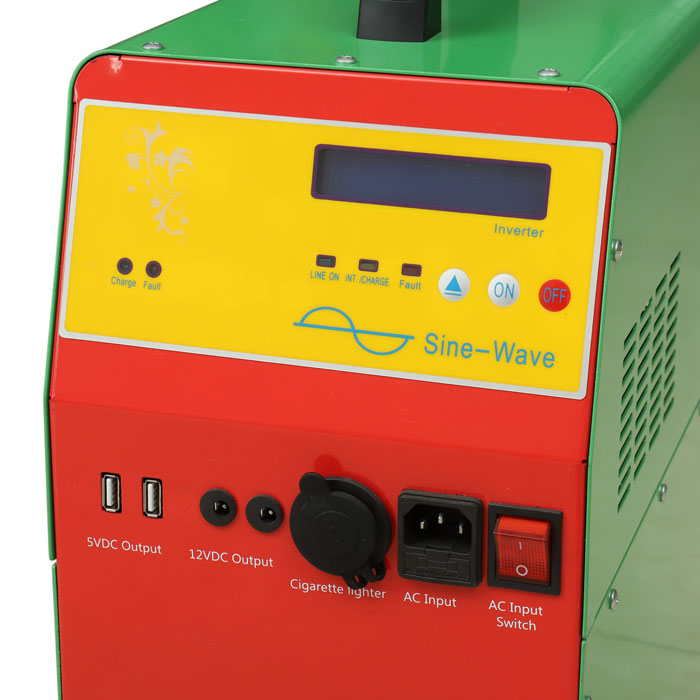

5.Two LCD displays, clearly to know the status.
6.have bypass function and AC charger (UPS function)
7.Protect against anti-charge at night, battery over charger/over discharge, output short-circuit, against overload, against over-voltage, over-current protection ,etc.



SCB series portable solar inverter generator technology parameter:

SCB100W ~ 300W

Model SCB100W SCB200W   SCB300W
Rated power(W) 100W 200W 300W
Rated DC voltage(V) 12V 12V 12V

Line input
Input voltage(V) 165-275V
Charge current(A) 8.3A 16.6A 25A
Inverter output AC Output voltage(V) 220VAC±5%
DC output voltage(V) 5V&12V
Output frequency 50Hz/60Hz±1%
Wave form Pure Sine Wave, THD<4%(Full Load)
Solar input Maximum voltage(V) 21 21 21
Rated power(Wp) 100 200 300
Charge current(A) 20 20 20
MPPT range(V) 12V-25V
Charging efficiency 90%-95%, Peak on 97%
Battery Capacity(AH) 55AH*1 55AH*1 55AH*1 or 100AH*1
Over charge
protective voltage(V)
14.3
Over charge
recover voltage(V)
13.7
Over discharge
alarm voltage(V)
20
Over discharge recover
voltage of battery(V)
12.5
other Voltage drop between solar
module and battery(V)
≤0.3V
Voltage drop between
loads and battery(V)

≤0.15V
Start speed of cooling fan Have
Environment Humidity 0-90% Maximum,non-condensable
Protective Functions Protection against anti-charge at night;Battery over charge/
over discharge protection; Joint-reversed of solar modules
Control method MPPT
Product Size :D*W*H(mm) 343*225*443
Package size 420*290*490
N.W./G.W.(kg) 21/23 22/24 25/28

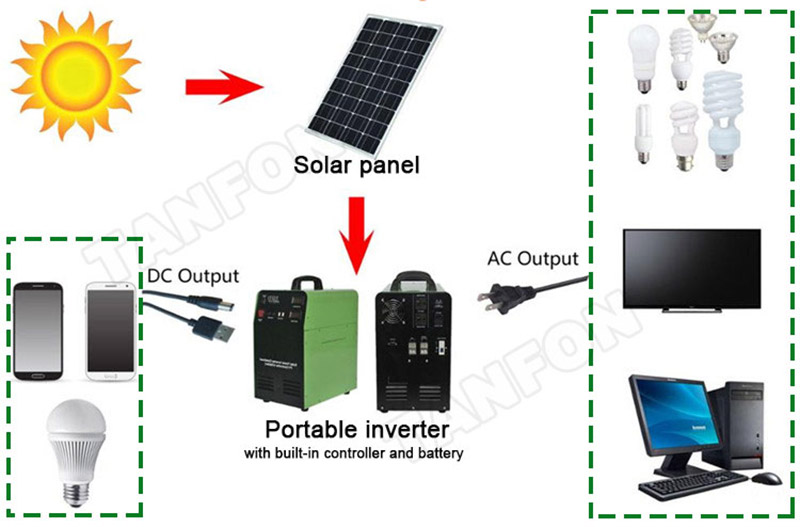

SCB series portable solar inverter generator application

portable solar inverter generator

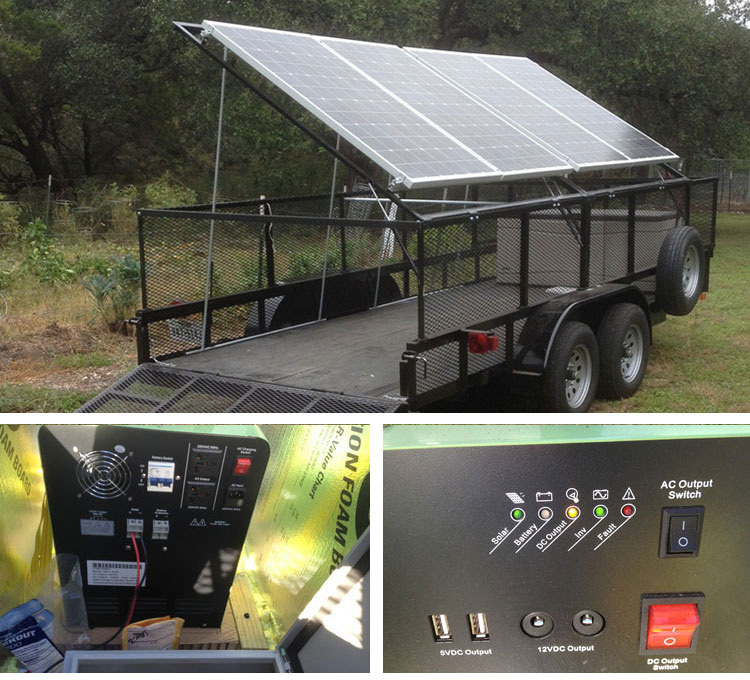

Case

portable solar inverter generator

Tanfon inverter packing

portable solar inverter generator

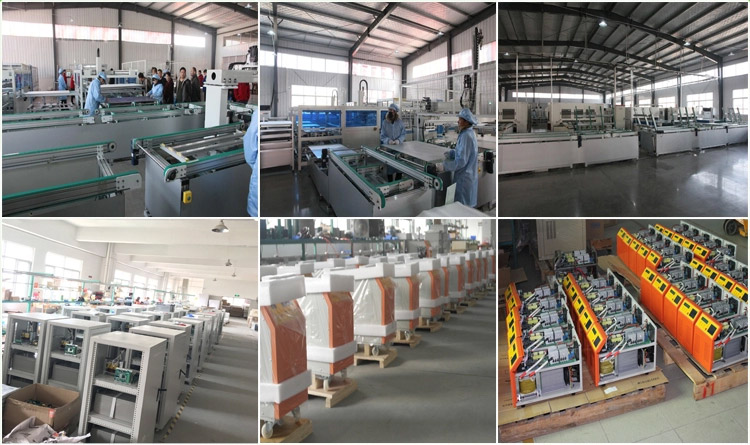

Tanfon factory

12 years experience in the inverter industry, can design as per customer needs, and OEM/ODM production.

ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate.

Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable.

Pre-sale: VIP service attitude, reply to inquiry within 5 minutes, design suitable products for customers.

In-sale: Update production information for customers every day to inform production status.

After-sale: One-to-one installation service support; engineer team provides technical support in 24 hours.

portable solar inverter generator

Tanfon certificate

We have ISO9001, CE, RoHS etc.

portable solar inverter generator

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
