FOSHAN TANFON ENERGY TECHNOLOGY CO.,LTD
Off Grid Solar Inverter
HOME/Off Grid Solar Inverter

Off Grid Solar Inverter

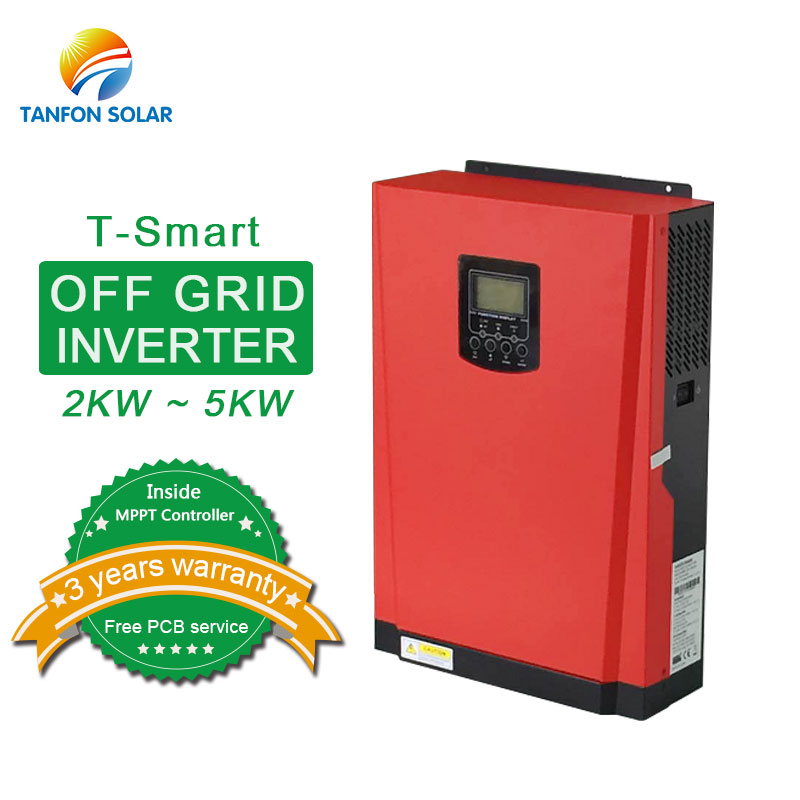

Off grid single phase 2kw 5kw solar inverter without battery

Product Specification:
  • Brand Name : TANFON
  • Model Number : T-Smart
  • Output Power : 2~5kw
  • Output Type : Single
Inquiry Now
Product Details
One-stop service
Customer Feedback

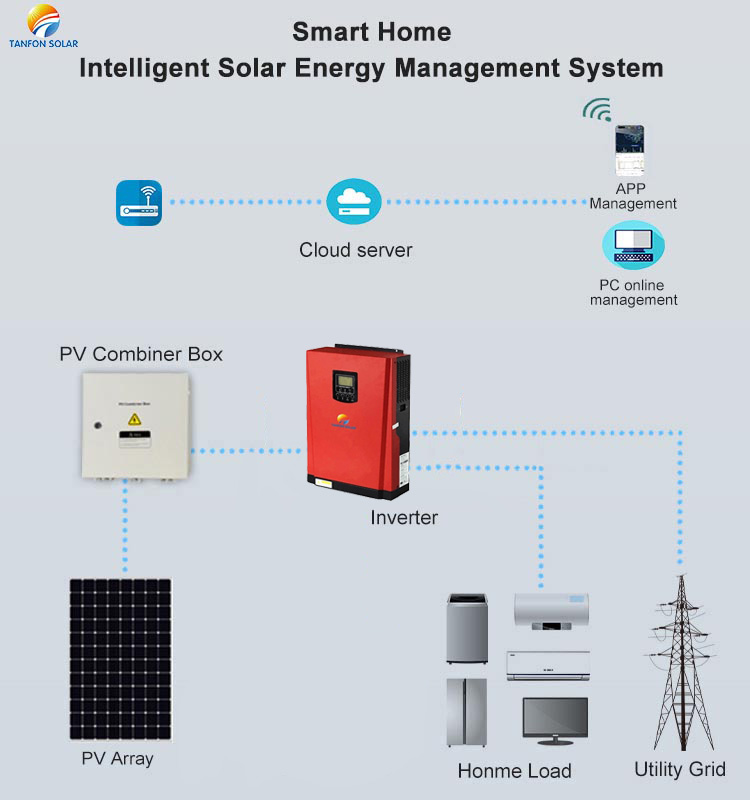

Tanfon solar APP Super advantage:
1)One Phone remote control ALL solar system, water pump, and street lights, CCTV.
2)Troubleshoot and reduce maintenance costs
3)Develop your brand APP to enhance competitiveness,call us to know more !

Solar inverter without battery

Off grid inverter work without battery Technical advantages:

1) Solar off grid system without battery, 35% cost off compared to traditional solar system

2) Connect generator And PV complementary

3) Wide input voltage range, can adapt to many areas and complex power grid

4) GPRS &WIFI network

Solar inverter without battery

Technology date

Model TF-smart-2000-24 TF-smart-3200-24 TF-smart-5000-48
RATED POWER 2000VA/2000W 3200VA/3200W 5000VA/5000W
INPUT
Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers)
90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 6400VA 10000VA
Efficiency (Peak) PV to INV. 97%
Efficiency (Peak) Battery to INV. 94%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY & AC CHARGER
Battery Voltage 24 VDC 48 VDC
Floating Charge Voltage 27 VDC 54 VDC
Overcharge Protection 33 VDC 63 VDC
Maximum Charge Current 80 A 60 A
SOLAR CHARGER
Maximum PV Array Power 4000W 5000W
MPPT Range @ Operating Voltage 120 ~ 450 VDC
Maximum PV Array Open Circuit Voltage 500 VDC
Maximum Charging Current 80A
Maximum Efficiency 98%
PHYSICAL
Dimension, D x W x H (mm) 100 x 300 x 440
Net Weight (kgs) 11.5 12.1
Communication interface USB/RS232
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature –15°C - 60°C
Product specifications are subject to change without further notice

Application

Use for the off grid solar system but without battery

Home solar system

Office solar system

Solar inverter without battery

Project

Tanfon factory

Tanfon certificate

We have ISO9001, CE, RoHS etc.

Solar inverter without battery

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
