On Grid Solar Inverter

Single phase 1KW 2KW 3KVA on grid solar inverter

Product Specification:
  • Brand Name : TANFON
  • Model Number : HBF1K~HBF3K
  • Output Power : 1KW~3KW
  • Output Type : Single phase
Inquiry Now
Product Details

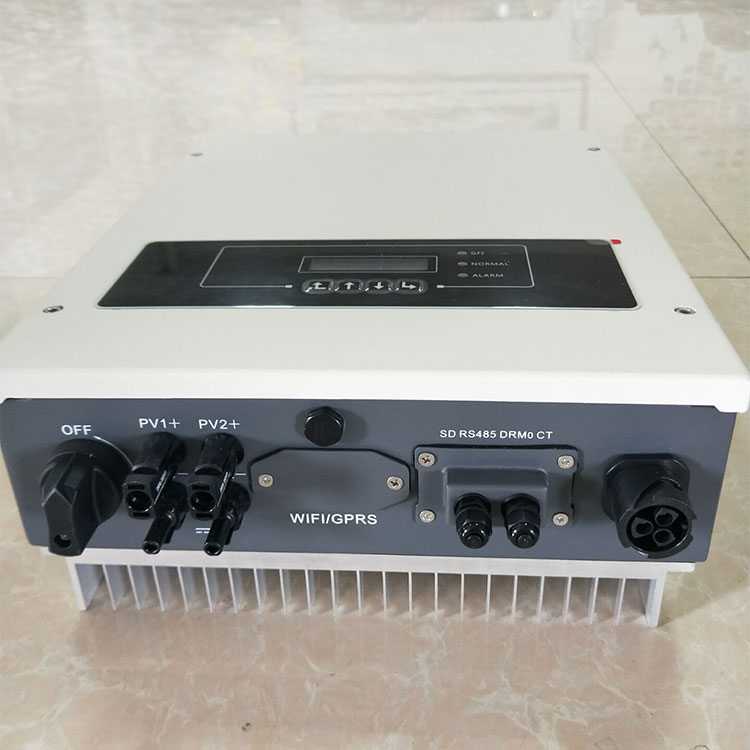

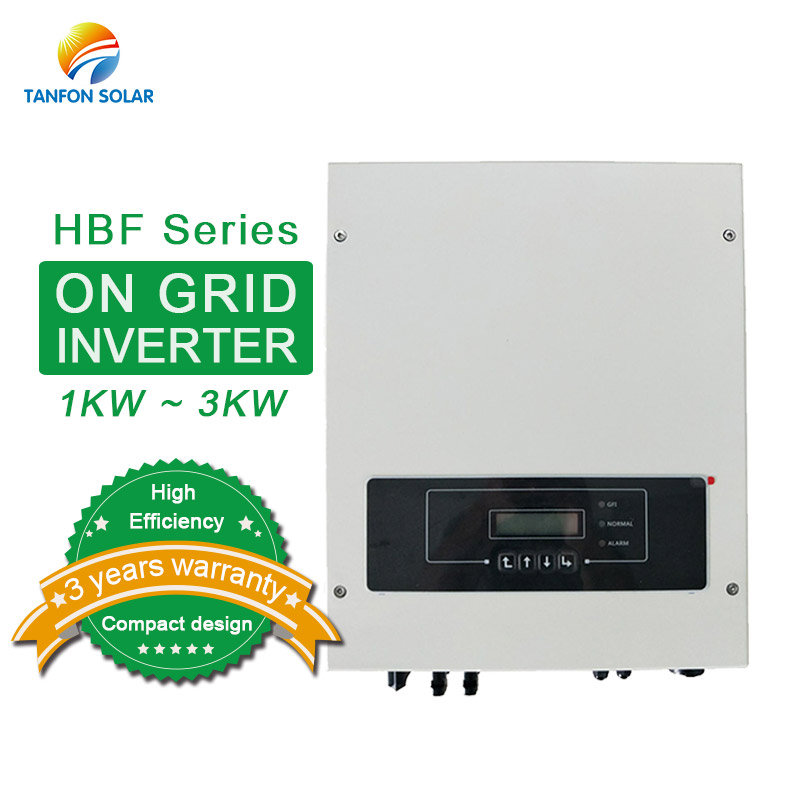

Tanfan HBF series 1kva to 3kva on grid solar inverter

HBF series on grid solar inverter description
1. Real time monitors inverters remotely by data logger
2. Multilingual support available
3. Efficient non-isolated topological structure
4. Temperature range -25ºC to 60ºC, Compact design, easy to install

Product Feature
1. Controlled by TI Digital DSP
2. Controlled by high efficient MPPT to track the maximum PV output, MPPT rate >99%
3. Pure sine wave output, automatic synchronization to grid, low harmonics
4. Anti-island protected by disturbance detection
5. Excellent functions of protection and alarm
6. Optional CAN, Ethernet, RS485, Bluetooth ports and remote data collection

Technical Data

Tanfan HBF series on grid solar inverter 1kw to 3kw
Model HBF1K HBF2K HBF3K
Delivery period(Week) 4
Type Outdoor
Input Max DC power 1.9KW 2.8KW 3.9KW
Max. DC input voltage 450V
MPPT voltage range 90-450V 100-500V 100-500V
Rated input voltage (V) 380V
Maximum input current 12A 15A 22A
Number of MPPT inputs 1
Number of DC inputs 1
Output Rated power 1KW 2KW 3KW
Rated AC voltage 120/230V
Rated frequency (Hz) 50Hz/60Hz
Max. output current (A) 7A 12A 13A
THD (rated power) <2%
Power factor at rated power ≥0.99
Connection phases Single-phase
Efficiency Max. efficiency 98%
European efficiency 96.70%
Physical Dimensions (W) (mm) 405*314*135
Weight (Kg)/per unit 17
Degree of Protection IP65

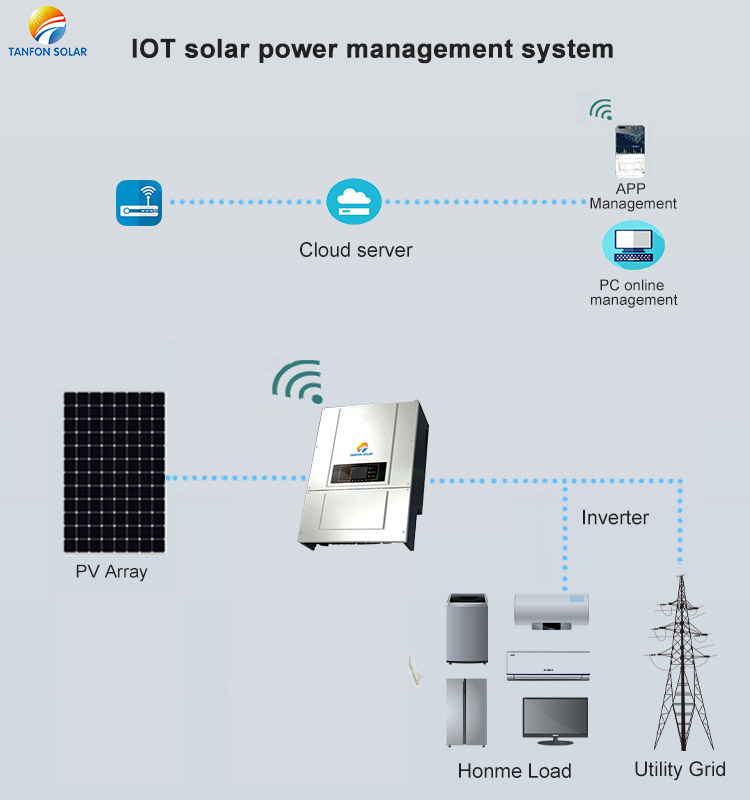

HBF series on grid solar inverter use for grid tie solar system

Tanfan HBF series 1kva to 3kva on grid solar inverter

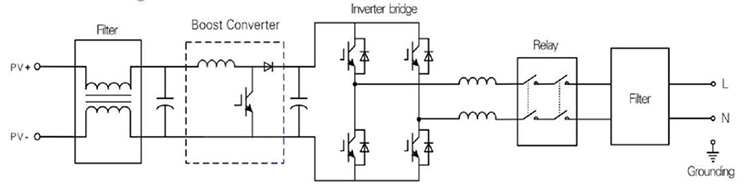

Working circuit diagram

Tanfan HBF series 1kva to 3kva on grid solar inverter

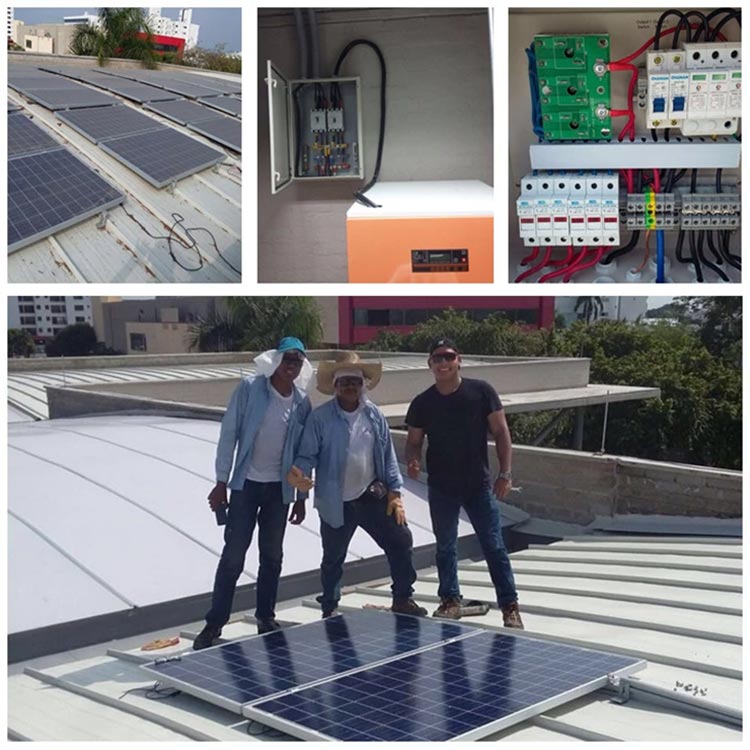

Project

Tanfan HBF series 1kva to 3kva on grid solar inverter

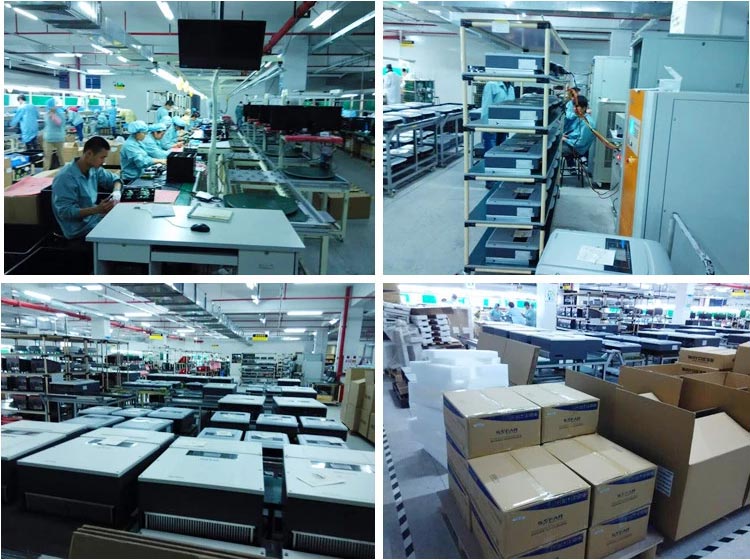

Workshop

Tanfan HBF series 1kva to 3kva on grid solar inverter

Tanfon Certificate

Tanfon Certificate

Inverter Packing

Tanfan HBF series 1kva to 3kva on grid solar inverter
