Solar Charge Controller

PWM 24V 40A 60A solar charge controller

Product Specification:
  • Brand Name : TANFON
  • Model Number : CP series
  • Charge Current : 40A 60A
Inquiry Now
Product Details
One-stop service
Customer Feedback

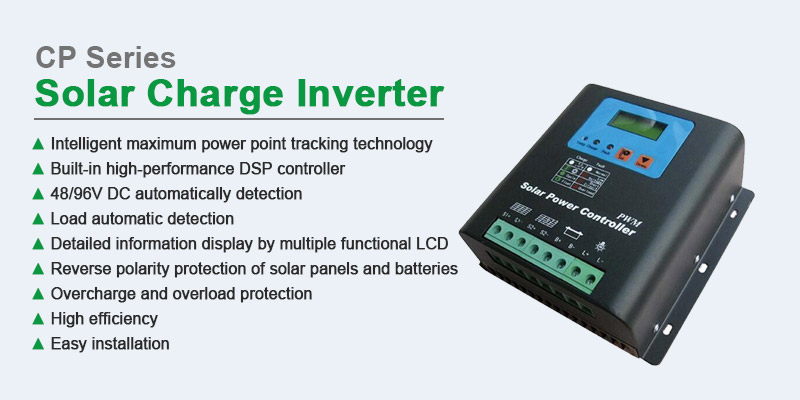

CP series PWM 24V 40A 60A solar charge controller

CP series 40A 60A solar charge controller features

  1. Advanced maximum power point tracking technology to optimize using the solar system.
  2. Peak conversion efficiency of 95%, high Tracking efficiency of 97%.
  3. Very fast sweeping of the entire I-V curve several seconds tracking speed.
  4. Widely used, automatic recognize day/night.
  5. Timer function with 1-17 hours option for street light system.
  6. Unique dual timer function, enhance the flexibility of street light system.
  7. Sealed, Gel and Flooded battery be suitable.
  8. Adopting temperature compensation and correcting the charging and discharging parameters automatically, improving the battery lifetime.
  9. Electronic protection: over charging, over discharging ,overload short circuit.
  10. Reverse protection: any combination of solar module and battery, without causing damage to any component.
  11. Excellent thermal design and nature air cooling.

CP series 40A 60A solar charge controller data sheet

Model CP40 CP60
Rated Charge current(A) 40 60
Rated DC voltage(V) 24/48V
Input Max voltage(V) 42/84
Battery Over charge protective voltage(V) 28.6/57.2
Over charge recover voltage(V) 27.4/54.8/
Constant charge voltage(V) 27/54
Over discharge alarm voltage(V) 20/40

Others

Environment Humidity and temperature 0-90% No condense,55℃
Protective Functions Protection against anti-charge at night,battery over charge,over discharge protection,Joint-reversed of solar modules
Control method PWM

Project

CP series PWM 24V 40A 60A solar charge controller

CP series 40A 60A solar charge controller production

CP series PWM 24V 40A 60A solar charge controller

Tanfon Certificate

CP series PWM 24V 40A 60A solar charge controller

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
