Solar Charge Controller

50A 75A 100A solar charge controller

Product Specification:
  • Brand Name : TANFON
  • Model Number : HCP series
  • Charge Current : 50A~100A
Inquiry Now
Product Details

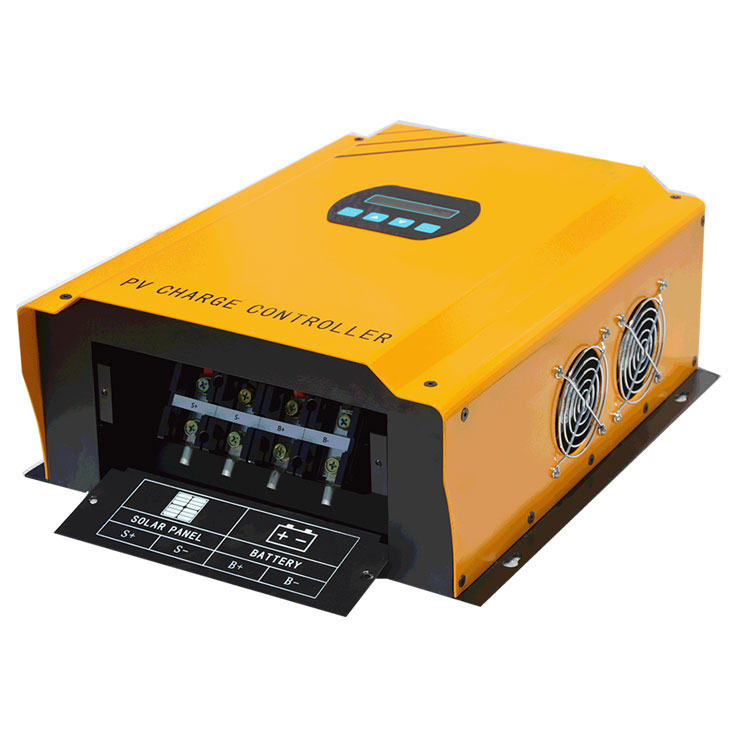

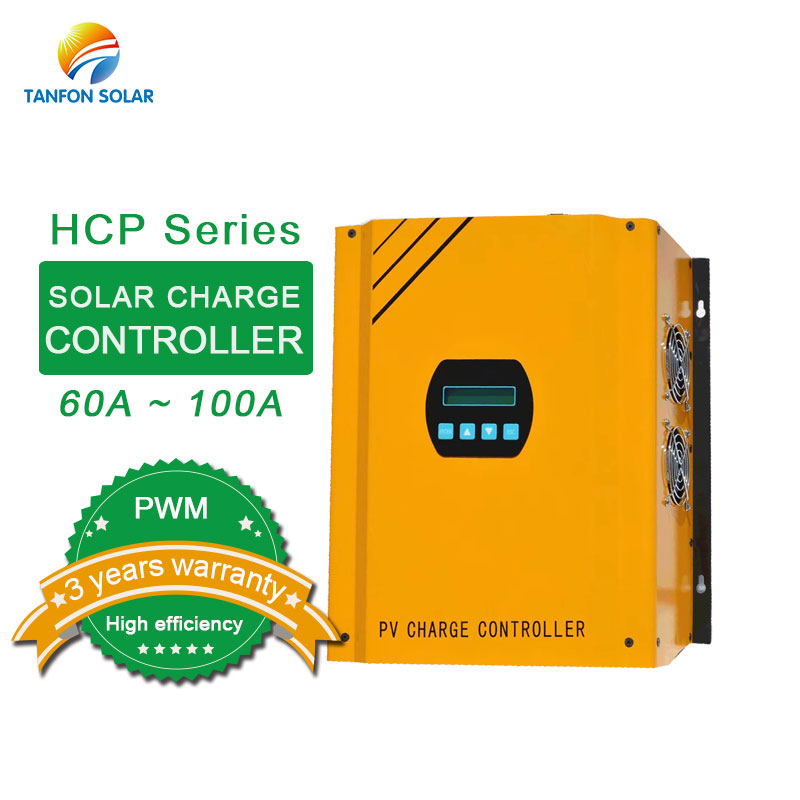

Tanfon HCP series 50A 75A 100A solar charge controller

HCP series 50A 75A 100A solar charge controller features

  1. Advanced maximum power point tracking technology to optimize using the solar system.
  2. Peak conversion efficiency of 95%, high Tracking efficiency of 97%.
  3. Very fast sweeping of the entire I-V curve several seconds tracking speed.
  4. Widely used, automatic recognize day/night.
  5. Timer function with 1-17 hours option for street light system.
  6. Unique dual timer function, enhance the flexibility of street light system.
  7. Sealed, Gel and Flooded battery be suitable.
  8. Adopting temperature compensation and correcting the charging and discharging parameters automatically, improving the battery lifetime.
  9. Electronic protection: over charging, over discharging ,overload short circuit.
  10. Reverse protection: any combination of solar module and battery, without causing damage to any component.
  11. Excellent thermal design and nature air cooling.

HCP series 50A 75A 100A solar charge controller data sheet

Model HCP40 HCP75 HCP100
Rated Charge current(A) 40 75 100
Rated DC voltage(V) 120V/192V 240V/384V
Input Max voltage(V) 420/672
Battery Over charge protective voltage(V) 286/457.6
Over charge recover voltage(V) 274/438.4
Constant charge voltage(V) 270/432
Over discharge alarm voltage(V) 200/320
Others Environment Humidity and temperature 0-90% No condense,55℃
Protective Functions Protection against anti-charge at night,battery over charge,over discharge protection,Joint-reversed of solar modules
Control method PWM

Project

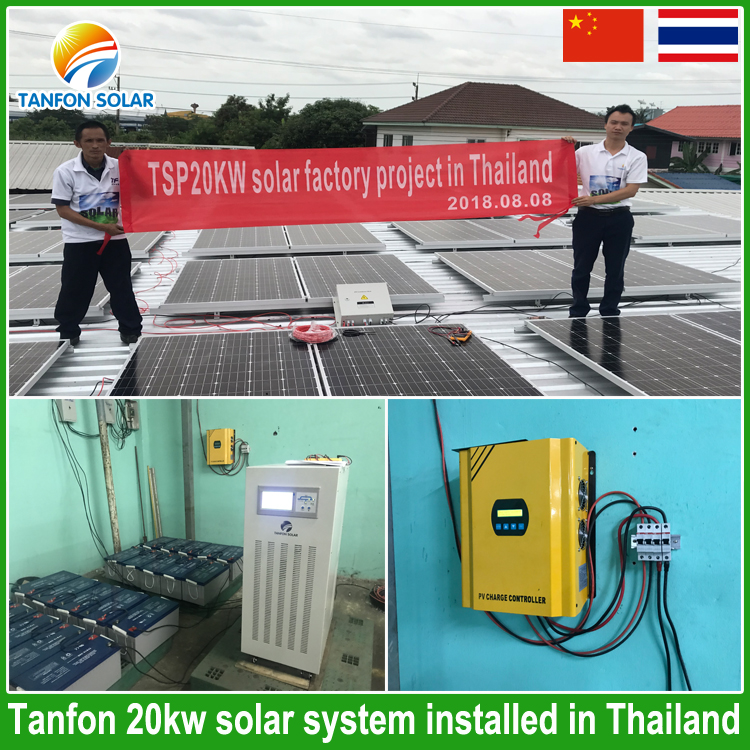

HCP series 50A 75A 100A solar charge controller for 20kw solar system

Tanfon HCP series 50A 75A 100A solar charge controller

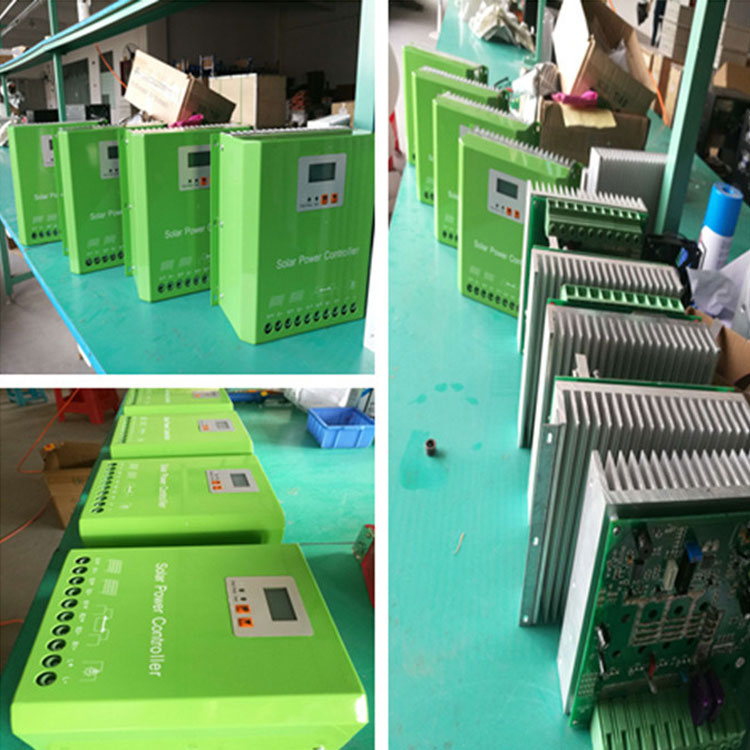

HCP series 50A 75A 100A solar charge controller production

Tanfon HCP series 50A 75A 100A solar charge controller

Tanfon Certificate

Tanfon HCP series 50A 75A 100A solar charge controller

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
