PV Combiner Box

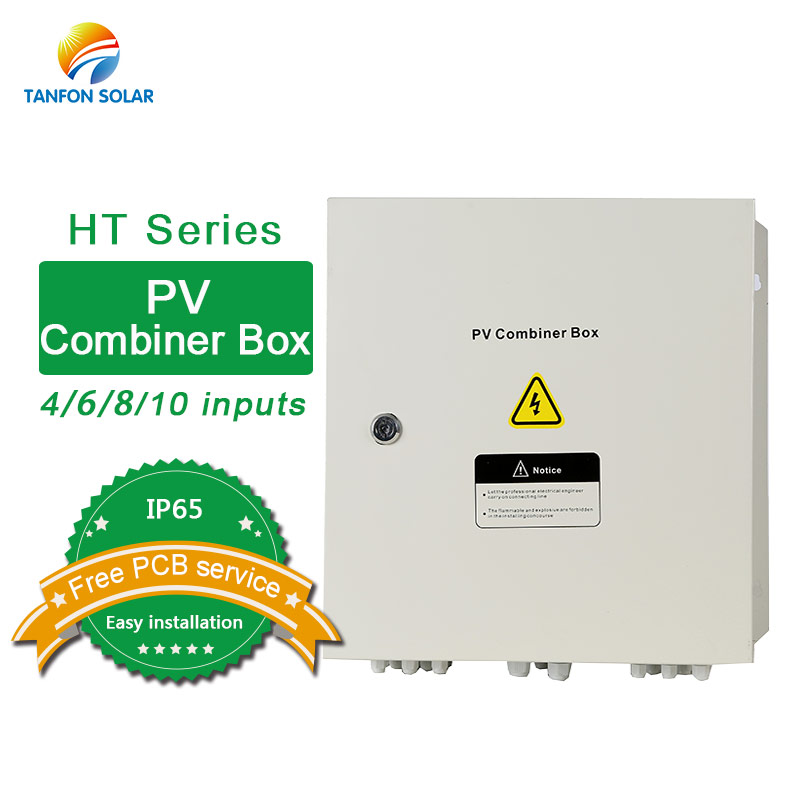

Tanfon HT series pv array combiner box

Product Specification:
  • Brand Name : TANFON
  • Model Number : HT Series
  • :
Inquiry Now
Product Details
One-stop service
Customer Feedback

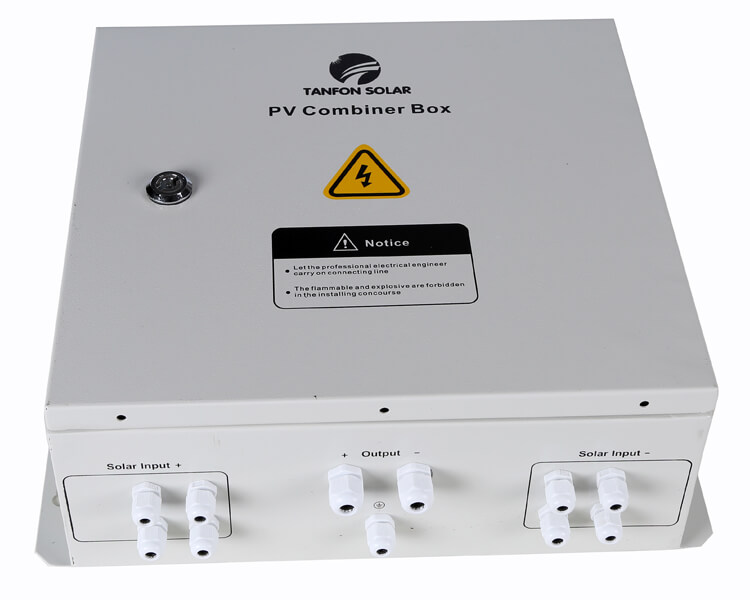

pv combiner box

Tanfon HT series pv array combiner box features:

1. Use to connect to multiple PV array strings inputs, Simplify wiring between PV array and controller, protections to controller.

2. It is equipped with the solar DC lightning protection devices. Both the positive pole and negative pole have the dual lightning protection function.

3. It adopts the professional DC breaker, capable to withstand voltage not lower than DC1000V. So it is safe and reliable.

4. The protection class is IP65, which meets the outdoor installation and usage requirements.

5. Easy and convenient installation and maintenance, long-term service life.

6. Reliable thunderstorm & surge protection

Tanfon HT series pv array combiner box data sheet:

Model H4T H6T H8T H10T
Number of inputs 4 5 8 10
Max single current 10A
Fuse for each input 10A
Wire number of each input PG7/4mm²
Number of output 1 or 2
Max output current 40A 60A 80A 100A
Max output voltage 800V DC
Temperature -30℃ ~ +60℃
Weight 5.3kg/ 8.4kg/12.9kg 9.5kg/14.3kg 10.8kg/15.6kg
Packing size 470*450*255mm 530*510*255mm

pv combiner box

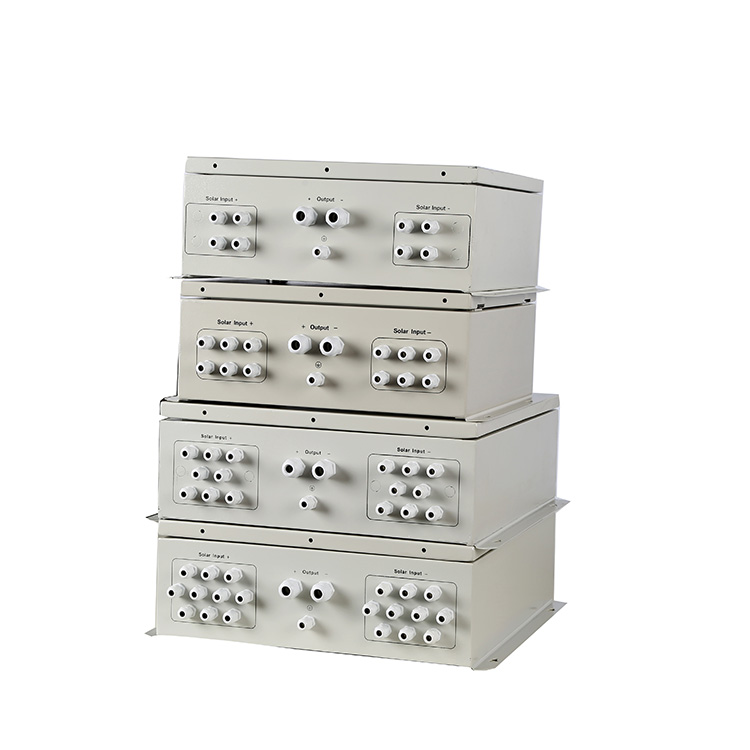

Tanfaon PV combiner box production

pv combiner box

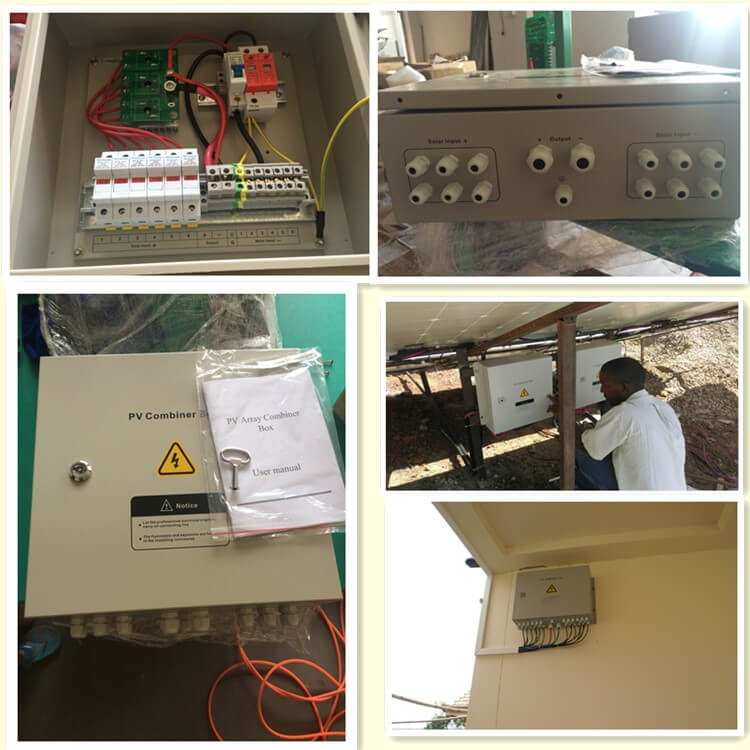

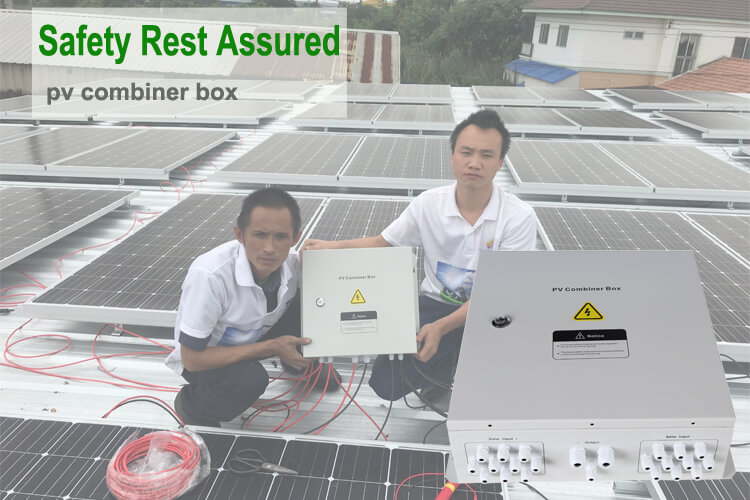

Tanfon PV combiner box for solar power system

pv combiner box
