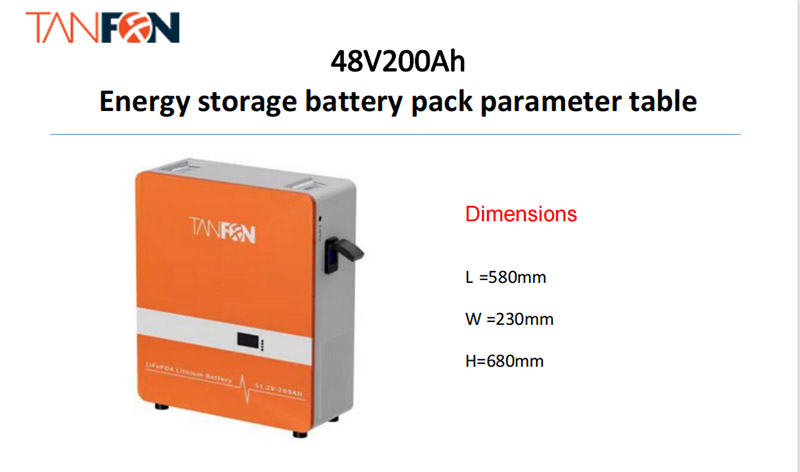

48V 200Ah battery pack

Product Specification:
  • Brand Name : TANFON
  • Model Number : 48V 200Ah
  • Warranty : 5-Year
Inquiry Now
Product Details
One-stop service
Customer Feedback



48V 200Ah Solar energy storage battery pack

Technical parameters of energy storage battery system

1.single cell Parameters

Project Indicators
BatteryImplementationStandards GB/T36276-2018
Model

12229265-50000mAh

(cell)

Typeofcore LFP
Unitratedcapacity 50Ah
Nominalcellvoltage 3.2V
Singlecellweight 1400g±5
Self-discharge

<15%(25±2C,28DAY)

<12%(55±2C,7DAY)

Internalresistance ≤8mΩ(50%SOC)
Singlecapacitydeviation(%) <3%
Cyclelifeofmonomers

≥1000

(25C,0.5C/1C

2.2V-3.6V,80%DOD)

Batteryoperatingtemperature

Discharge:-20C~60C

Charging:0C-50C



Project Indicators
Batteryvoltagerange

40V~58.4V

(cell2.50~3.65V)

Ratedvoltage/Ratedcapacity 51.2V/200AH/10.24wh
Deliverydetectioncapacity >60%
Combinationmode 16s4p
Batterylifecycle(Cycleconditions)

≥1000

(80%DOTat77F(25C))

Self-discharge

<8%(25±2C

30%~70%SOC28DAY)

Insulationperformance

>100MΩ(25C

40%RH,1000VDC)

Waterproofanddustproofgrade IP55
Batterycasesize 580*230*680cm
Batterycasestatus Ironbox
Totalbatterypack 95kg±0.5kg
