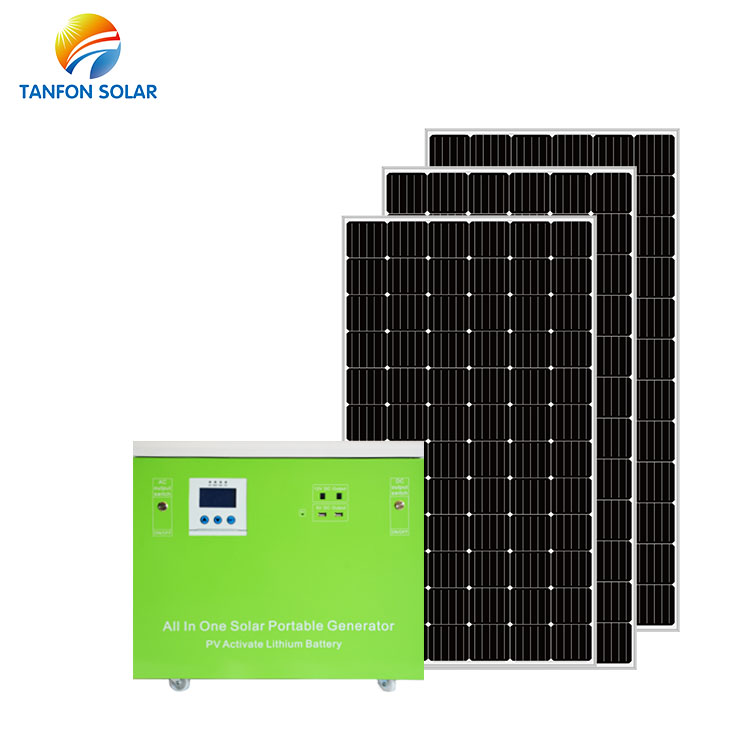

500w-3000w Portable Solar Generator
Product Specification:- Brand Name : TANFON SOLAR
- Model Number : solar inverter 500w
- DC voltage : 48V
- Output voltage : 110V/220V
- Advantage : German Technology
- Certificate : ISO, ETL, TUV, CE, RoHS
- Payment : T/T, L/C, Paypal, Western Union
You May Like
Product Details
One-stop service
Customer Feedback
TANFON advantages:
1. The most competitive price in the whole network
2. 12 years of installation experience, with global service centers
Product advantages:
1. Small size, light weight, environmental protection, no noise, maintenance-free, portable.
2. Gel battery and lithium battery optional
3. Universal socket, suitable for all countries
4. Easy to install, even an 80-years elder can install well.

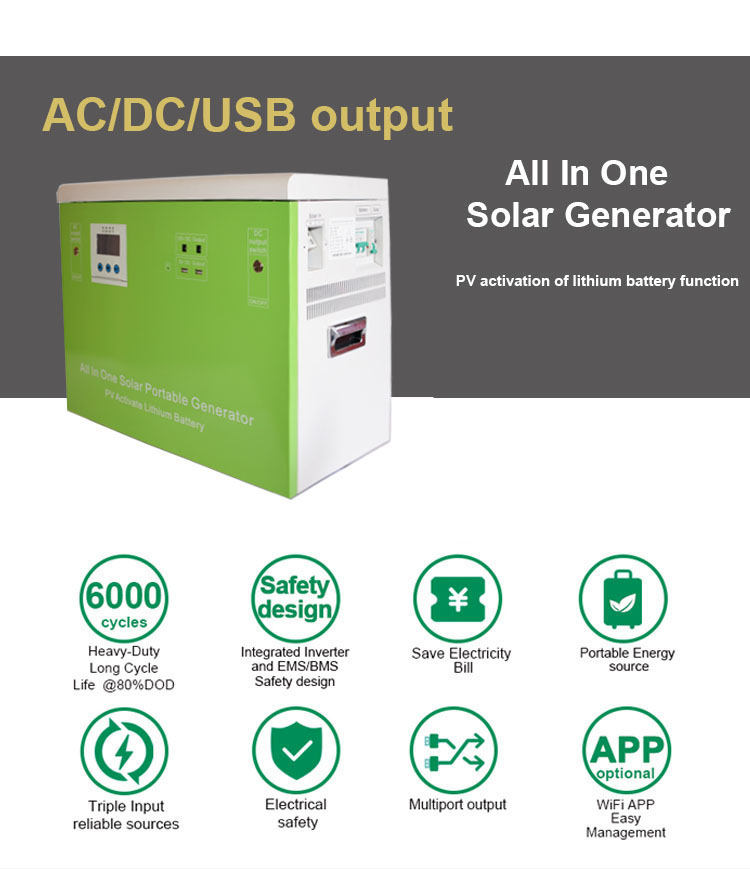

| Features and function: | ||||||||
| 1.Excellent performance because of double CPU intelligent control technology; | ||||||||
| 2.3000 cycles lithium battery and has a 5 years service life ; | ||||||||
| 3.The mains supply mode/energy-saving mode/battery mode can be set for flexible; | ||||||||
| 4.Convenient and practical 5VDC-USB output port and 12VDC output port; | ||||||||
| 5.MPPT Controller greatly improving the charging efficiency more than 20%; | ||||||||
| 6.Overall automatic protection and alarms including AC output overload protection,short circuit protection,etc | ||||||||
| 7.In the solar charging mode, you can manually turn on the mains for charging to speed up the full charging. | ||||||||
| 8.China's advanced high-end technology:PV activation of lithium battery function. Lithium battery can also be directly activated by photovoltaic if it is protected by BMS. |
| Model | SCL-500W | SCL-1000W | SCL-1500W |
| Battery Voltage | 12V | 24V | 24V |
| Inverter | |||
| RATED POWER | 500W | 1000W | 1500W |
| Input Voltage Range | 140-275V | ||
| Input Frequency | 45-65Hz | ||
| Output Voltage | 220-240VAC | ||
| Output Frequency | 50/60Hz | ||
| Output Wave | Sine Wave | ||
| Speficifation Of Built-in lifepo4 Battery | 12V50AH | 24V50AH | 24V65AH |
| 600WH | 1200WH | 1560WH | |
| Communication | RS232(optional) | ||
| working model | 01:City power priority 02:Energy saving mode 03:solar power priority | ||
| Solar Input | |||
| Max. PV Power | 360W | 720W | 960W |
| Range Of Charging Voltage | 34V-150V | 34V-150V | 34V-150V |
| Rated Charge Current | 30A | 30A | 30A |
| Voltage For Overcharge Protection | 14.2VDC | 28.4VDC | 28.4VDC |
| Voltage For Overcharge Recovery | 14VDC | 28VDC | 28VDC |
| Voltage For Floating Charge | 13.7VDC | 27.4VDC | 27.4VDC |
| DC Output | |||
| Voltage For High Voltage Protection | 16VDC | 32VDC | 32VDC |
| High Voltage Recovery Voltage | 15.2VDC | 30.2VDC | 30.2VDC |
| Low Voltage Recovery Voltage | 12.6VDC | 25.2VDC | 25.2VDC |
| Low Voltage Protecton Voltage | 11VDC | 22VDC | 22VDC |
| 5VDC USB Output | 2pcs*2A | 2pcs*2A | 2pcs*2A |
| 12VDC Output Ports | 2pcs*2A | 2pcs*2A | 2pcs*2A |
| Low Voltage Protecton Voltage | 11VDC | 22VDC | 22VDC |
| PHYSICAL | |||
| Heat Dissipation/Cooling | Temperature control by intelligent exhaust fan | ||
| Display | Digital LCD | Digital LCD | Digital LCD |
| Electricity Charging | Yes | Yes | Yes |
| External Size：W*D*H（mm） | 480*230*370mm | 480*230*370mm | 480*230*370mm |
| Package Size：W*D*H（mm） | 520*275*450mm | 520*275*450mm | 520*275*450mm |
| G.W.(Gross Weight) | 19kg | 30kg | 45kg |
| Model | SCL-3000W | SCL-5000W | SCL-6000W |
| Battery Voltage | 24V | 48V | 48V |
| Inverter | |||
| RATED POWER | 3000W | 5000W | 6000W |
| Input Voltage Range | 140-275V | ||
| Input Frequency | 45-65Hz | ||
| Output Voltage | 220-240VAC | ||
| Output Frequency | 50/60Hz | ||
| Output Wave | Sine Wave | ||
| Speficifation Of Built-in lifepo4 Battery | 24V/150AH | 48V100AH | 48V150AH |
| 3600WH | 4800WH | 7200WH | |
| Communication | RS232(optional) | ||
| working model | 01:City power priority 02:Energy saving mode 03:solar power priority | ||
| Solar Input | |||
| Max. PV Power | 3000W | 3000W | 3000W |
| Range Of Charging Voltage | 65V-150V | 65V-150V | 65V-150V |
| Rated Charge Current | 60A | 60A | 60A |
| Voltage For Overcharge Protection | 56.8VDC | 56.8VDC | 56.8VDC |
| Voltage For Overcharge Recovery | 56VDC | 56VDC | 56VDC |
| Voltage For Floating Charge | 54.8VDC | 54.8VDC | 54.8VDC |
| DC Output | |||
| Voltage For High Voltage Protection | 64VDC | 64VDC | 64VDC |
| High Voltage Recovery Voltage | 60VDC | 60VDC | 60VDC |
| Low Voltage Recovery Voltage | 51VDC | 51VDC | 51VDC |
| Low Voltage Protecton Voltage | 44VDC | 44VDC | 44VDC |
| 5VDC USB Output | 2pcs*2A | 2pcs*2A | 2pcs*2A |
| 12VDC Output Ports | 2pcs*2A | 2pcs*2A | 2pcs*2A |
| Low Voltage Protecton Voltage | 43VDC | 43VDC | 43VDC |
| PHYSICAL | |||
| Heat Dissipation/Cooling | Temperature control by intelligent exhaust fan | ||
| Display | Digital LCD | Digital LCD | Digital LCD |
| Electricity Charging | Yes | Yes | Yes |
| External Size：W*D*H（mm） | 500*420*510mm | 560*350*700mm | 560*350*700mm |
| Package Size：W*D*H（mm） | 570*465*625mm | 590*380*770mm | 590*380*770mm |
| G.W.(Gross Weight) | 61kg | 108kg | 118kg |
All inverters are free to send new spare boards within the warranty. For more services, please contact our teamAfter sales service:

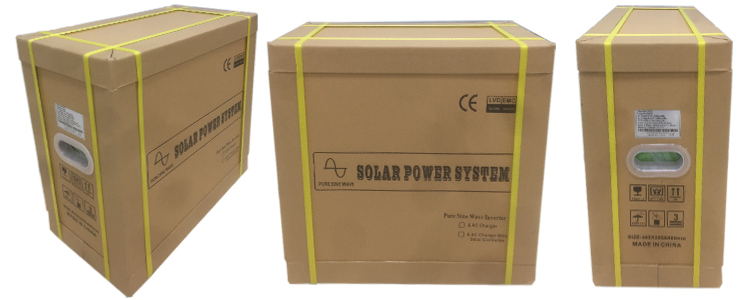

Packing:
