Solar Panel

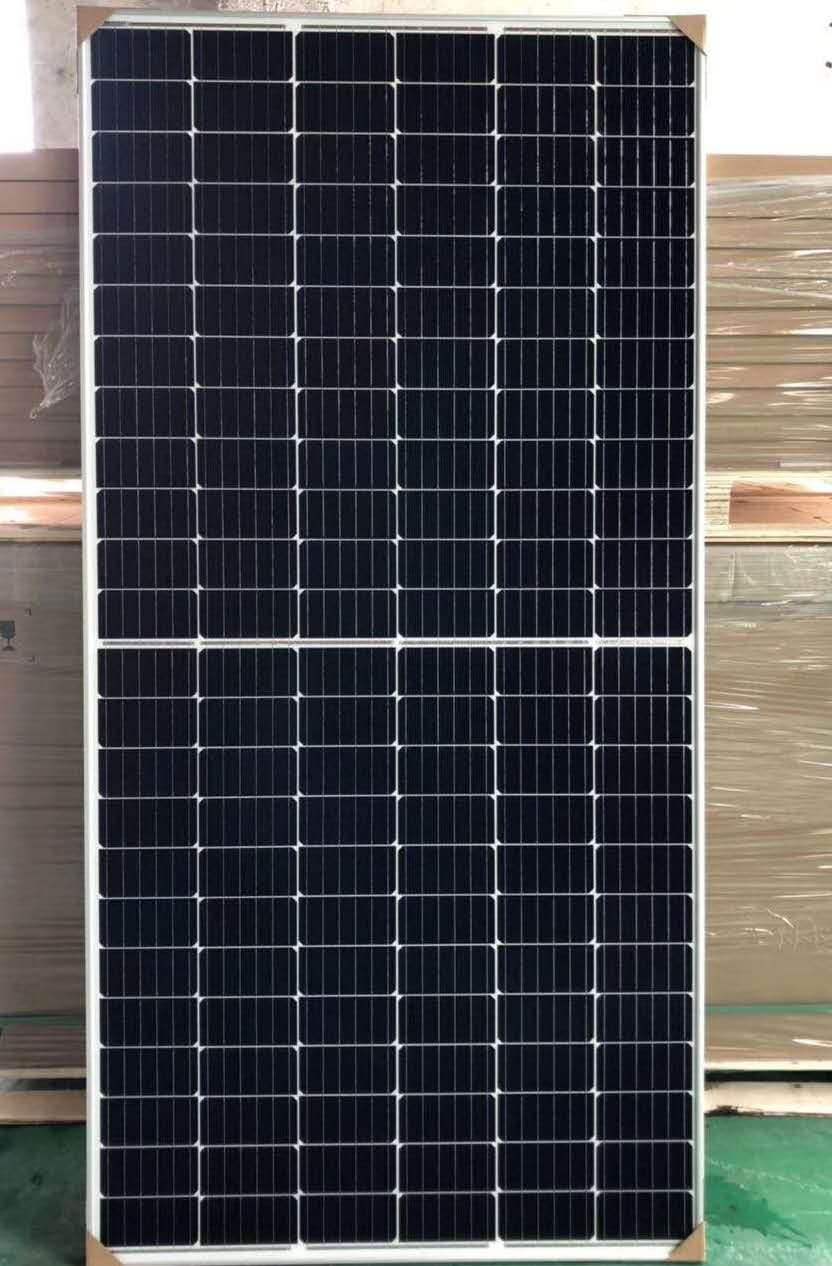

solar mono Half cell solar panels 450 Watt photovoltaic solar panels

Product Specification:
  • Brand Name : TANFON
  • Model Number : FS450M
  • Warranty : 25-Year
Inquiry Now
Product Details
One-stop service
Customer Feedback

320w Solar Panel



Tanfon solar panel advantages:

1. IP68 Junction Box, Connector

2. 15A current

3. Super strong frame

4. Current division

5. Salt spray, Ammonia and PID test

6. Strong Mechanical load capacity

7. Color Classification



▍ ELECTRICAL PARAMETERS AT STC

TYPE

FS78M-450

FS78M-460

FS78M-470

FS78M-480

Rated Maximum Power(Pmax) [W]

450

460

470

480

Open Circuit Voltage(Voc) [V]

51.38

51.68

51.98

52.28

Short Circuit Current(Isc) [A]

11.69

11.88

12.06

1223

Maximum Power Voltage(Vmp) [V]

42.12

42.42

42.72

43.02

Maximum Power Current(Imp) [A]

10.44

10.60

10.76

10.92

Module Efficiency [%]

18. 80

19.23

19.65

20.08

Power Tolerance

±3%

Maximum System Voltage

DC 1000V

Maximum Series Fuse Rating

20A

STC

Irradiance 1000W/m², cell temperature 25℃, AM1.5G



▍ Temperature Characteristics

Pmaximum Temperature Coefficient

-0.36 %/℃

Voc Temperature Coefficient

-0.28 %/℃

Isc Temperature Coefficient

+0.05 %/℃

Operating Temperature

-40~+85 ℃

Normal Working Cell Temperature

45.0±2℃



▍Mechanical Specifications

External Dimensions

2280x 1035 x 40 mm

Weight

26.50KG

Solar Cells

PERC Mono Crystalline 83x 166 mm(156片)

Front Glass

3.2 mm AR coating tempered glass,low iron

 Frame

Anodized aluminum alloy

Junction Box

IP68,3 diodes

Output Cable

4.0mm² ,1000mm

Connector

MC4/MC4 Compatible

Mechanical load

5400 pa



▍Packing Configuration

Size

2280×1035 x 40 mm

Container

20’GP

40’GP

40’HQ

Pieces per Pallet

26

26

26+5

Pallet per Container

10

20

20

Pieces Per Container

260

520

570

 320w Solar Panel



320w Solar Panel



320w Solar Panel

320w Solar Panel

Products have been sold to more than 130 countriesImportantly, we have one professional installation team, has been to 32 countries and regions for installation service as well as win good feedback from the customers.

Tanfon 2 set of 200kw solar system in Papua New Guinea

320w Solar Panel

1.2MW mono photovoltaic solar panels roof grid tie project

320w Solar Panel

320w Solar Panel





320w Solar Panel

320w Solar Panel

320w Solar Panel

We accept OEM and small trial orders, contacting with us now for more information. All inquiries will be replied with in 24 hours.

SOLAR POWER SYSTE ALL PARTS: CABLE, SOLAR RACKING, SOLAR INVERTER WITH CONTROLLER, BATERY
