TANFON 500W Solar Panel

Product Specification:
  • Brand Name : TANFON
  • Model Number : FS500M
  • Warranty : 25-Year
  • Certificate : ISO, ETL, TUV, CE, RoHS
  • Payment : T/T, L/C, Paypal, Western Union
Inquiry Now
Product Details
One-stop service
Customer Feedback



TANFON Solar Manufacturer since 2007, German technical solar products, Home solar system, Industrial & Commercial Solar System, Serving 160 countries, Professional Solar Solutions

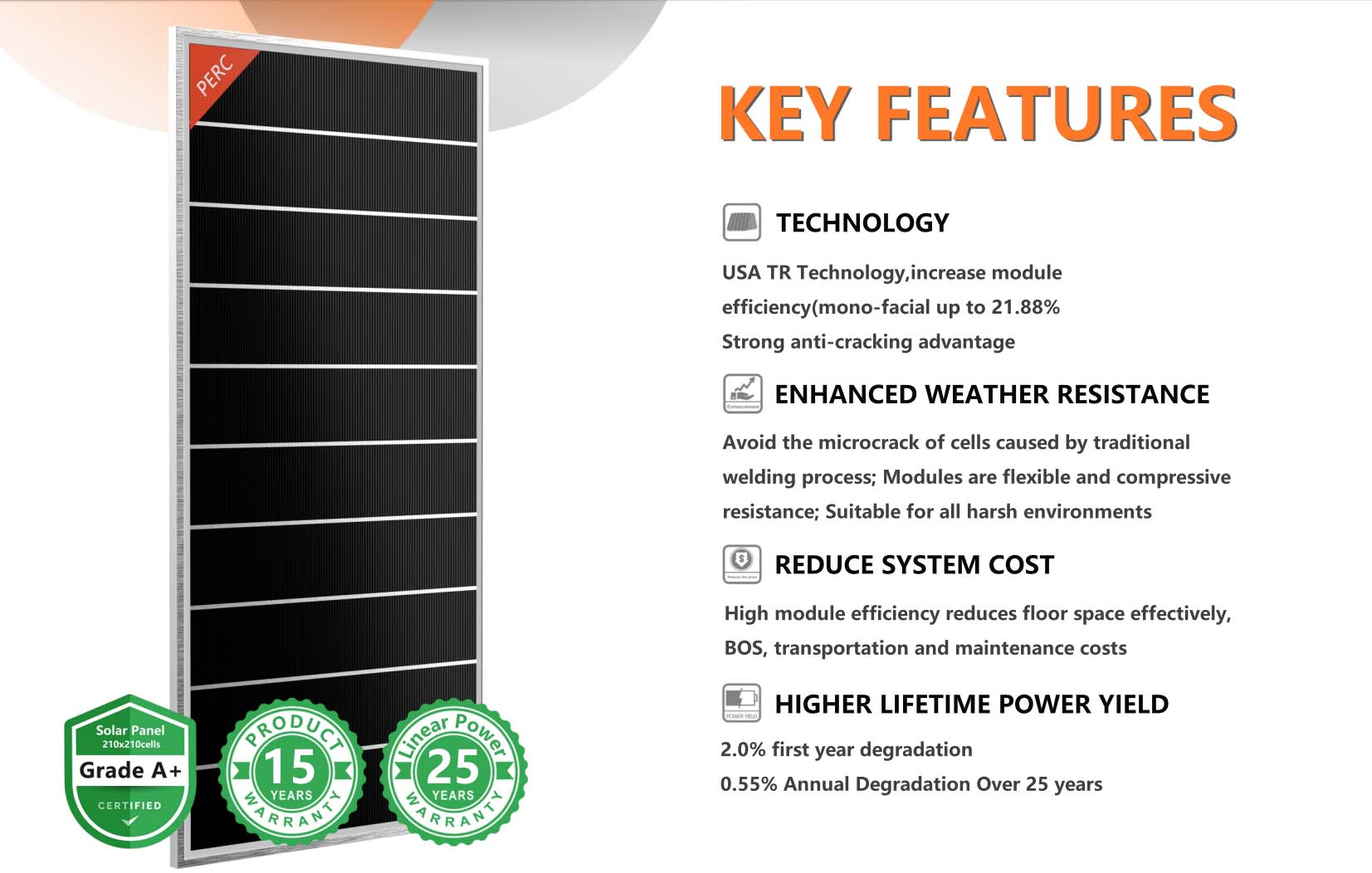

Tanfon solar panel advantages:

1. IP68 Junction Box, Connector

2. 15A current

3. Super strong frame

4. Current division

5. Salt spray, Ammonia and PID test

6. Strong Mechanical load capacity

7. Color Classification







Electrical Characteristics at Standard Test Conditions(STC)

TFL-210X30_10_36 510 505 500 495 490
Maximum Power-Pm [W] 510 505 500 495 490
Open Circuit Voltage-Voc [V] 49.81 49.55 49.42 49.29 49.29
Short Circuit Current-Isc [A] 12.98 12.91 12.82 12.71 12.58
Maximum Power Voltage-Vm [V] 41.5 41.29 41.18 41.08 41.08
Maximum Power Current-Im [A] 12.28 12.23 12.14 12.04 11.92
Module Efficiency-η [%] 21.88 21.66 21.45 21.23 21.02



Mechanical Characteristics

Temperature Characteristics

Dimensions 2090×1106×35mm (L×W×H) NMOT 42.3℃(±2)
Weight 25.6kg Temperature Coefficient of Voc -0.27%/℃
Front Glass White toughened safety glass, 3.2mm Temperature Coefficient of Isc 0.04%/℃
Cells 210*210 PERC solar cells Temperature Coefficient of Pm -0.34%/℃
Back Sheet high weatherability backsheet Maximum Ratings
Frame Anodized aluminum profile Maximum System Voltage [V] DC 1500IEC)
Junction Box IP68,TUV,two diodes Series Fuse Rating [A] 20
Cable Length 1200mm, 1×4mm² Maximum Surface Load Capacity [Pa] 5,400
Connector Compatible with MC4 Temperature Range [°C] – 40~+ 85
Withstanding Hail Maximum diameter of 25 mm with

impact speed of 23 m/s
Package
Container 40’GP
Number of pallets per container 31
Number of modules per ontainer 700




Electrical Characteristics at NMOT

Maximum Power-Pm [W] 388 384 380 376 372
Open Circuit Voltage-Voc [V] 47.47 47.23 47.1 47.01 46.99
Short Circuit Current-Isc [A] 10.46 10.41 10.33 10.25 10.14
Maximum Power Voltage-Vm [V] 39.57 39.35 39.26 39.15 39.15
Maximum Power Current-Im [A] 9.8 9.75 9.67 9.6 9.5
NOTE:

1. Standard Test Conditions [STC]: irradiance 1000 W/m²; AM 1.5;ambient temperature 25℃ according to EN 60904-3;

2. Nominal Module Operating Temperature (NMOT): Irradiance 800W/ m²; wind speed 1m/s ; ambient temperature 20℃

3. Tolerance of Pm: 0~+5W, Measuring uncertainty of power: ±3%. Performance deviation of Voc [V], Isc [A], Vm [V] and Im [A]: ±3%.
