FOSHAN TANFON ENERGY TECHNOLOGY CO.,LTD
Off Grid Solar Inverter
HOME/Off Grid Solar Inverter

Off Grid Solar Inverter

1kw pure sine wave inverter solar system use

Product Specification:
  • Brand Name : TANFON
  • Model Number : WSC-1K
  • Output Power : 1kva
  • Output Type : Single phase
Inquiry Now
Product Details
One-stop service
Customer Feedback



inverter solar



Foshan Tanfon Energy Technology Co., Ltd is a professional manufacturer of green energy products with great commitment, contribution heart, and responsibility.
We are specialized in the R&D, manufacture, and sale of high-quality inverters, all kinds of pure sine wave inverter(off-grid and on-grid, single-phase and three-phase).

inverter solar1.The chassis is thick, resistant to falling, shockproof and not easily deformed.

2.MOS tubes, ICs, and triodes are all new imported raw materials.

3.Toroidal transformer, small no-load current, low loss, high efficiency

4.The process is good, the wiring is complete, the circuit board wire head is not easy to loose, and the failure rate is reduced.

5.Power board brushed three anti-paint, moisture-proof, dust-proof, anti-static, improve work efficiency

6.Design life is 10 years

WSC series solar inverter with mppt charge controller data sheet

Model

WSC1K WSC2K WSC3K

Rated power(W)

1KW 2KW 3KW

Rated DC voltage(V)

24V 48V

Line input

Input voltage(V)

145-280V, 90-127V

Charge current(A)

10-30A

Inverter output



Output voltage(V)

110V or 220VAC±5% &5V,12V DC

Output frequency

50Hz/60Hz±1%

Wave

Pure Sine Wave, THD<4%(Full Load)

Solar input

Maximum voltage(V)

42V or 88V or 176V

Rated power(Wp)

1000W 2000W 3000W
Solar Controller

Charge current(A) 60A
MPPT range(V) 24v(20-34)48v(40-68)
Charging efficiency

90%-95%, Peak on 97%

Product Details

WSC1K off grid 1000w solar inverter with built-in MPPT controller, wall mount design, easy installation.

Solar inverter with mppt charge controller



Solar inverter with mppt charge controller

Why Choose TANFON Products?

inverter solar

1.Sample service:Applicable to quality test,function test etc

2.Repair service:Two year warranty

3.perfect after sales service system:Contact us ,we will help you quickly find the problem,then give you fast service .

4.ODM service:Powerful R&D department can provide professional technical support

5.OEM services:More than 100 pieces ,you can decide the trademark and package

6:quality utmost:Each inverter has tested by power-off test of 100 times per hour.



pure sine wave inverter solar Seven Management Systems:

Name Picture  Advantage
Supply System inverter solar



Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier.

MOS tube adopts an imported IR brand.

QC System inverter solar



ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate.

Production System 1kw inverter solar



Wall-mounted inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability

Factory Inspection System inverter solar power



Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable.



solar inverter packing&load container:

inverter solar





Certificate

We have ISO9001, CE, RoHS ;have pass COC,IEC62109,The test report will be applied to Algeria, Botswana, Côte d'Ivoire, Ethiopia, Gabon, Ghana, Kenya (PVoC), Kuwait (KUCAS), Lebanon, Libya, Mauritius, Nigeria (SONCAP), Philippines, Qatar, Russia, Saudi Arabia, Tanzania / Sangria Zimbabwe, Zimbabwe and Morocco countries

Solar inverter with mppt charge controller

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.

TANFON have set up 3 more service centers in 2019.

1) Successfully established the Senegalese Service Center, named TANFON ENVISOLAR PRESTIGE SARL

2) Tanfon Solar Kenya Ltd in Kenya and Tanfon solartec Mozambique E servicos,SA

In Mozambique both Successfully obtained a business license.

After 12 years of deep cultivation, we have successfully helped some of our customers to grow up and cooperate together to develop the local market more comprehensively.



Our vision is to open 120 service centers all over the world, and we are constantly working hard for it.

Tanfon can provide you with all professional services, Tanfon will go with you all the way.We sincerely invite you to work with us together.

inverter solar

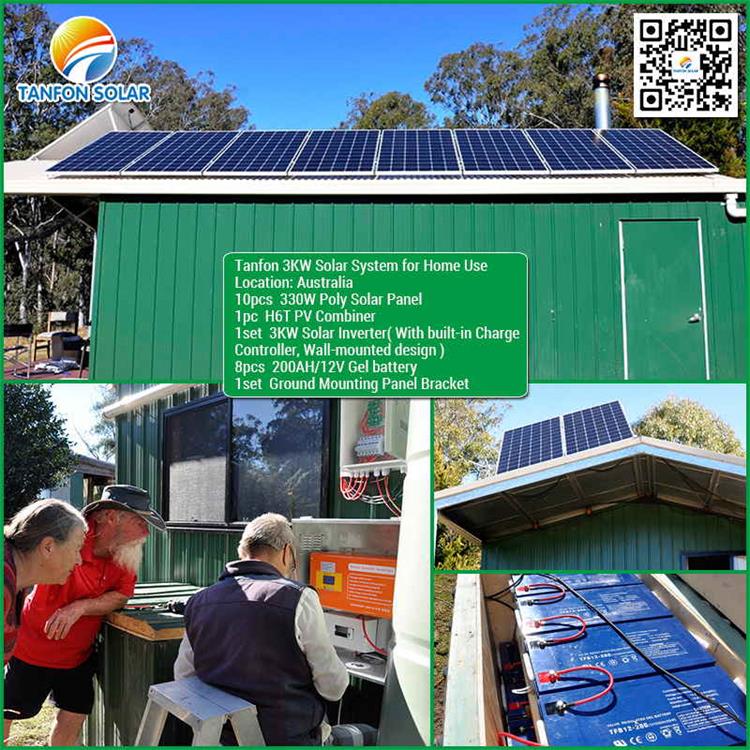

inverter solar system case:

inverter solar power

inverter solar customer feedback:



solar inverter
