Off Grid Solar Inverter

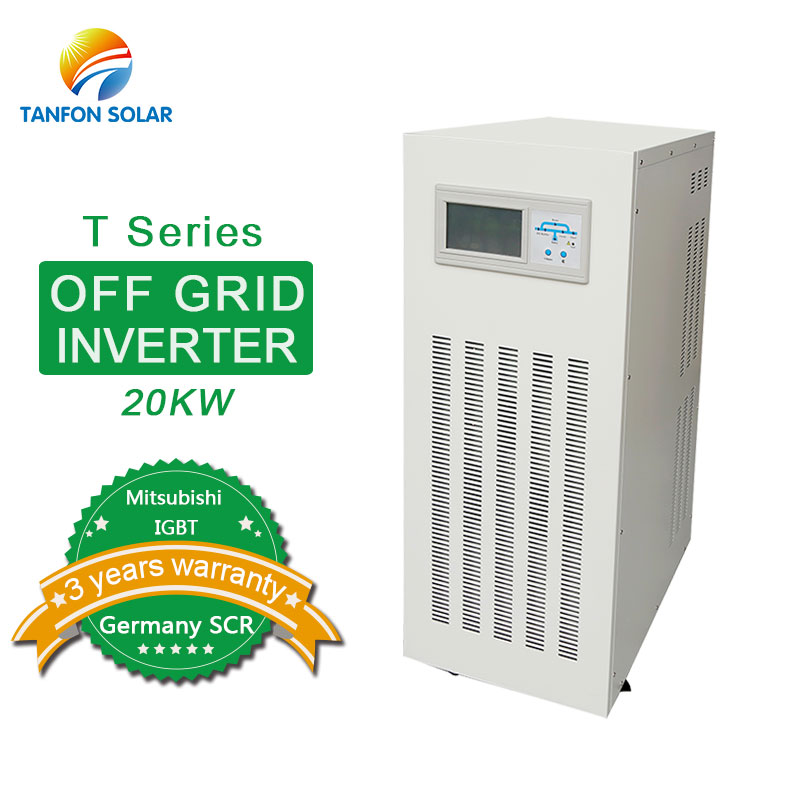

Three phase off grid 20kw solar inverter with IGBT

Product Specification:
  • Brand Name : TANFON
  • Model Number : T20K
  • Output Power : 20KW
  • Output Type : Thase phase
Inquiry Now
Product Details
One-stop service
Customer Feedback

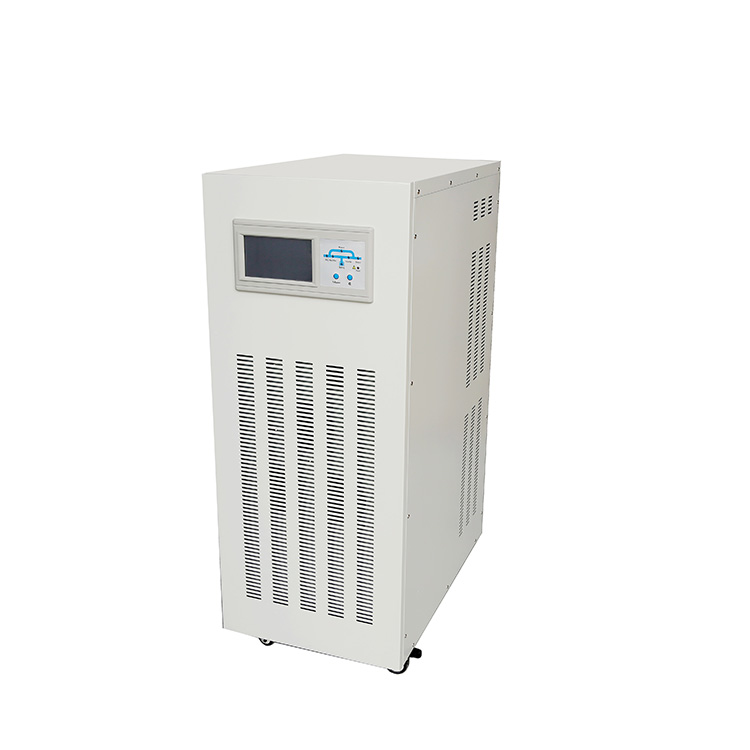

20kw solar inverter

T series off grid 20kw solar inverter feature:

1. With AC reactor  (Protect against city power current shock)

2. Double protection. (Two fuses, including the city power security and battery power security)

3. Thyristor charging. (The thyristor charging current is larger than charging board one.The thyristor charging current could reach to 40-50a while the charging board is only 10a-15a)

4. IGBT converter. (High 95% transfer efficiency and strong anti-loading shock capacity)

5. AC filter capacitor.( Have stabilizing voltage function and pure sine wave output)

6. Under normal working condition when taking the loads, the machine can run as usual even when cut out the battery power.(Strong capacity for anti-shock, stable function)

7. IGBT brand: Mitsubishi (import from Japan), Thyristor charging brand: Simon Kang Brand(import from German)

8. single to 3 phase converter with transformer,IGBT materials, Isolation, output reactance,easy take hostipal's surgical equipment



Product Details

20kw solar inverter

Technical Data

T series off grid 20ksolar inverter

Model T20K
Power 20KW
Input Phase 3 phase 4 wire and ground

Voltage Range

380V±20%(3 phase), phase voltage 220V
Frequency Range 45-65HzV
Rectifier 3 phase 6 pulses, 12 pulses is optional
Output Phase 3 phase 4 wire and ground
Wave form Pure sine wave
Crest Factor 3:01
Rated Voltage 380/400/415V optional ±1% for static load, 5% forfluctuant load
Phase Voltage setting 200-244VAC, pls confirm when order
Transient Response ±5%,10ms
Frequency 50/60 Hz ±0.05%
Total-harmonic distortion < 3% linear load, <5%(nonlinear load)
short circuit current Short current for 0.1s(200% current)
Overload Capacity Overload 125% for 10 Mins, 125%-150% for 1min, automatically resume when load become normal

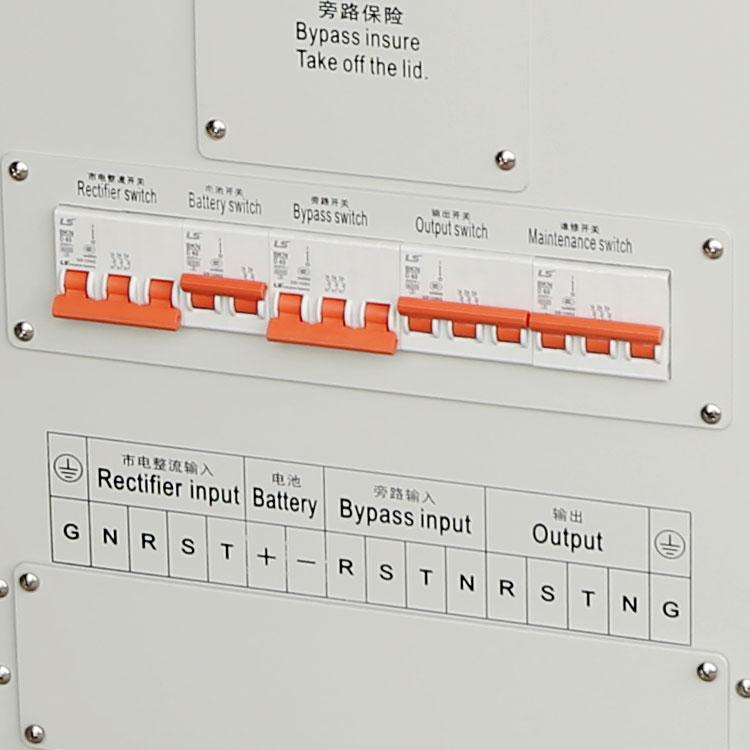

Bypass Type Static state +manual maintenance bypass
Input Phase 3 phase 4wire and ground
Input Voltage Range 15% - 25% (the front control panel selectable)
Transfer Time Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms
Efficiency Whole unit >85%
Inverter 93
Remote Signaling Dry contact (battery low, battery discharging, bypass / fault); output 12vdc/80mA, Optional parts
Environment Temperature 0-40 degree Celsius
Relative Humidity Less than 95% (without condensing)
Noise <60dB
Degree of protection IP20
Dimension(mm) 785*580*1200
Package Size(mm) 960*730*1410
Net Weight(kg) 125
Gross Weight(kg) 145

Application

T series off grid 20kw solar inverter for solar system

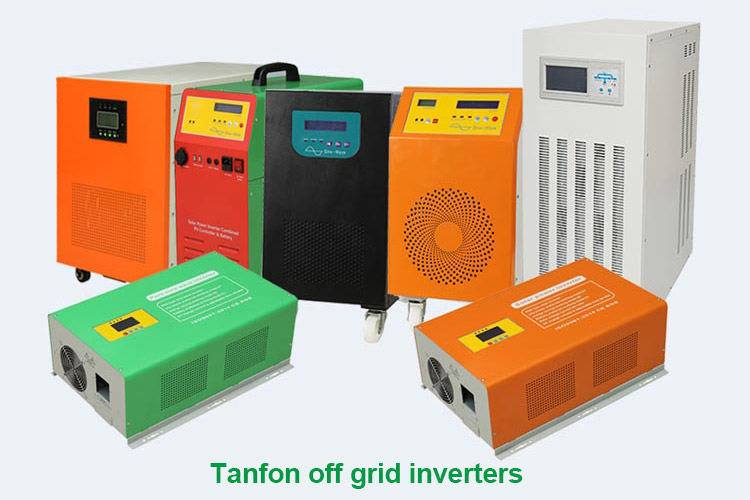

off grid 10kw solar inverter for solar system

Case

20kw solar inverter

T series three phase inverter for Haiti 100KW off grid solar system project

Certificate

We have ISO9001, CE, RoHS etc.

20kw solar inverter

Inverter Packing

20kw solar inverter

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
