FOSHAN TANFON ENERGY TECHNOLOGY CO.,LTD
Off Grid Solar Inverter
HOME/Off Grid Solar Inverter

Off Grid Solar Inverter

3000W 3KW Single Phase Off Grid Solar Power Inverter

Product Specification:
  • Brand Name : TANFON SOLAR
  • Model Number : 3KW Solar Inverter
  • DC voltage : 48V
  • Output voltage : 110V/220V
  • Advantage : German Technology
Inquiry Now
Product Details
One-stop service
Customer Feedback

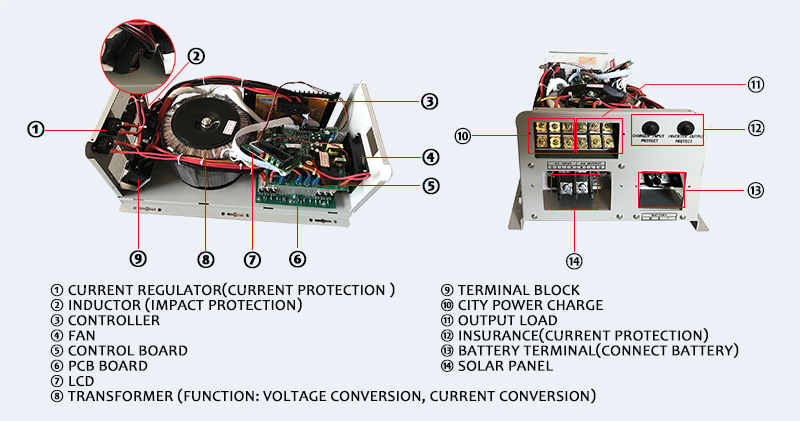

3KW Off Grid Solar inverter

1.The chassis is thick, resistant to falling, shockproof and not easily deformed.

2.MOS tubes, ICs, and triodes are all new imported raw materials.

3.Toroidal transformer, small no-load current, low loss, high efficiency

4.The process is good, the wiring is complete, the circuit board wire head is not easy to loose, and the failure rate is reduced.

5.Power board brushed three anti-paint, moisture-proof, dust-proof, anti-static, improve work efficiency

6.Design life is 10 years



WSC Series 3KW Solar Inverter With Mppt Charge Controller Data Sheet

Model

WSC1K WSC2K WSC3K

Rated power(W)

1KW 2KW 3KW

Rated DC voltage(V)

24V 48V

Line input

Input voltage(V)

145-280V, 90-127V

Charge current(A)

10-30A

Inverter output



Output voltage(V)

110V or 220VAC±5% &5V,12V DC

Output frequency

50Hz/60Hz±1%

Wave

Pure Sine Wave, THD<4%(Full Load)

Solar input

Maximum voltage(V)

42V or 88V or 176V

Rated power(Wp)

1000W 2000W 3000W
Solar Controller

Charge current(A) 60A
MPPT range(V) 24v(20-34)48v(40-68)
Charging efficiency

90%-95%, Peak on 97%

What's the difference between off grid and on grid solar inverter?

Off Grid Solar Inverter

On Grid Solar Inverter

Off grid solar inverter doesn't connect to the power grid. In general, it includes solar panels, charger controller, batteries and inverter. This system will store the solar power into the batteries, batteries energy will be converted the electricity power to supply the appliances working through the inverter.

On grid solar inverter connects to the power grid. In general, it includes solar panels, grid-connected inverter, the solar power will be converted the electricity power to appliance working directly. When the solar power is off, the power grid will replenish the electricity power to appliances working.

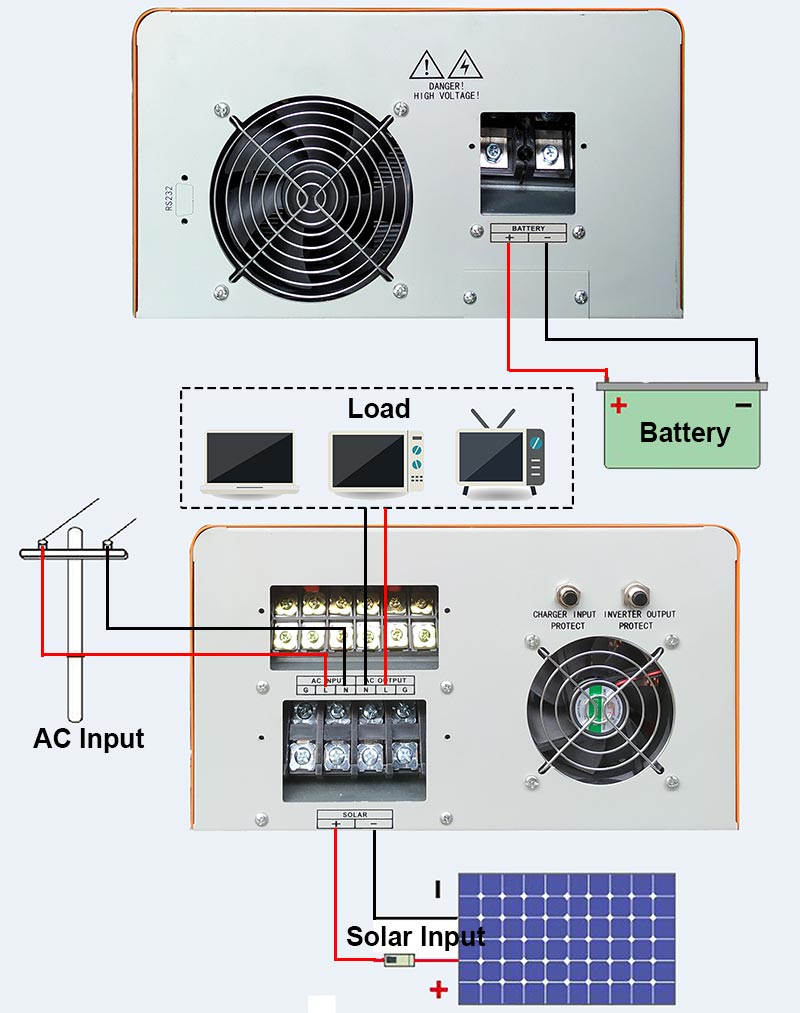

Solar System Installation Case



Product Details

WSC3K off grid 3000w Hybrid solar system inverter with built-in MPPT controller, wall mount design, easy installation.

3KW Off Grid Solar inverter



3KW Off Grid Solar inverter

Foshan Tanfon Energy Technology Co., Ltd is a professional manufacturer of green energy products with great commitment, contribution heart, and responsibility.
We are specialized in the R&D, manufacture, and sale of high-quality inverters, all kinds of pure sine wave Hybrid solar inverter(off-grid and on-grid, single-phase and three-phase).

Get Price Now



Why Choose TANFON solar inverter Products?

3KW Off Grid Solar inverter

1.Sample service:Applicable to quality test,function test etc

2.Repair service:Two year warranty

3.perfect after sales service system:Contact us ,we will help you quickly find the problem,then give you fast service .

4.ODM service:Powerful R&D department can provide professional technical support

5.OEM services:More than 100 pieces ,you can decide the trademark and package

6:quality utmost:Each inverter has tested by power-off test of 100 times per hour.



Solar  inverter solar Seven Management Systems:

Name Picture  Advantage
Supply System 3KW Off Grid Solar inverter



Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier.

MOS tube adopts an imported IR brand.

QC System 3KW Off Grid Solar inverter



ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate.

Production System 3KW Off Grid Solar inverter



Wall-mounted inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability

Factory Inspection System 3KW Off Grid Solar inverter



Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable.

solar inverter packing&load container:

3KW Off Grid Solar inverter



Certificate

We have ISO9001, CE, RoHS ;have pass COC,IEC62109,The test report will be applied to Algeria, Botswana, Côte d'Ivoire, Ethiopia, Gabon, Ghana, Kenya (PVoC), Kuwait (KUCAS), Lebanon, Libya, Mauritius, Nigeria (SONCAP), Philippines, Qatar, Russia, Saudi Arabia, Tanzania / Sangria Zimbabwe, Zimbabwe and Morocco countries

3KW Off Grid Solar inverter

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
