Off Grid Solar Inverter

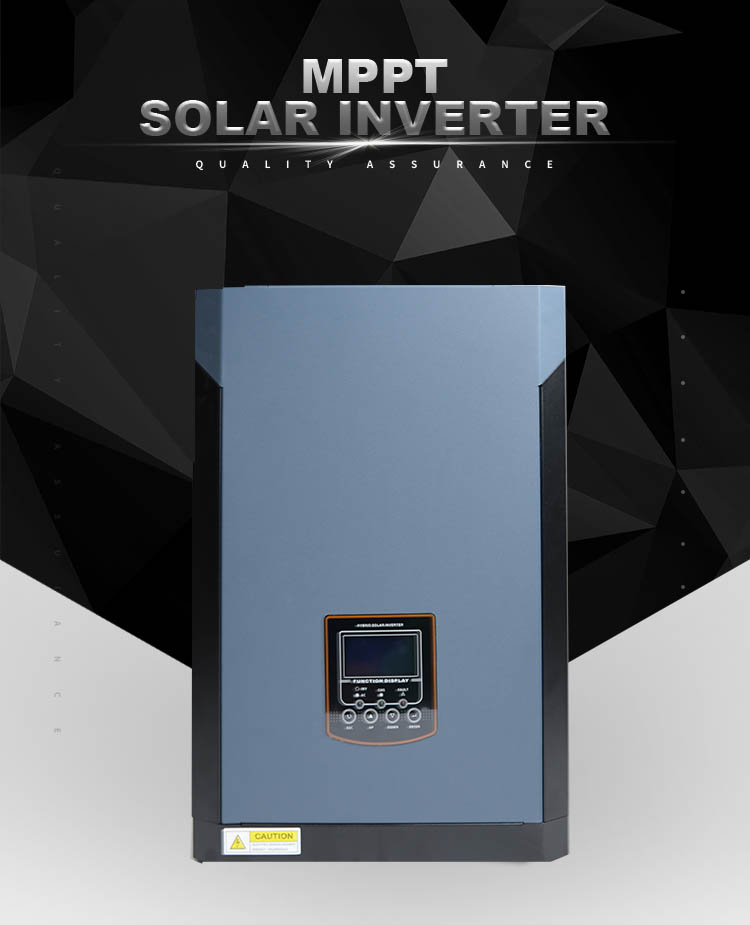

5kw High Voltage Mppt Solar Inverter

Product Specification:
  • Brand Name : TANFON SOLAR
  • Model Number : solar inverter 5kw
  • DC voltage : 48V
  • Output voltage : 110V/220V
  • Advantage : German Technology
Inquiry Now
Product Details
One-stop service
Customer Feedback



Features:

  • Pure sine wave inverter
  • Built-in MPPT solar charge controller
  • Selectable input voltage range for home appliances
  • and personal computers.
  • Selectable charging current based on applications

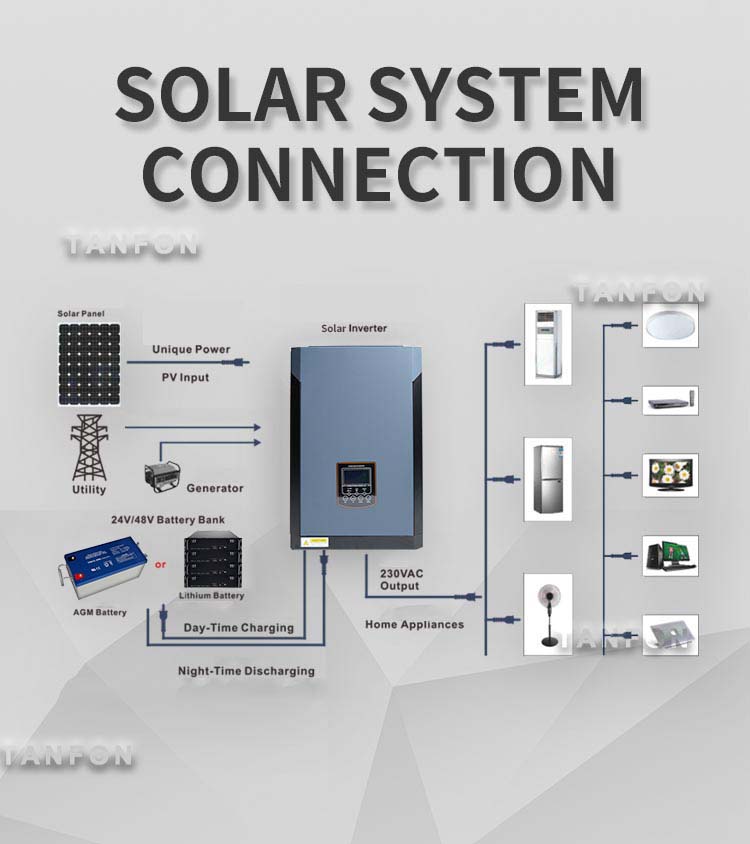

  • Configurable AC/Solar input priority via LCD setting
  • Compatible to mains voltage or generator power
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Smart battery charger design for optimized battery
  • performance





MODEL

Victor NM II-2000-24

Victor NM II-3200-24

Victor NM II-5200-48

Rated Power

2000VA/2000W

3200VA/3200W

5200VA/5200W

INPUT

Voltage

230VAC

Selectable Voltage Range

170-280VAC(for personal computers)

90-280VAC(for home appliances)

Frequency Range

50Hz/60Hz (Auto sensing)

OUTPUT

AC Voltage Regulation (Batt.Mode)

230VAC±5%

Surge power

4000VA

6400VA

10400VA

Efficiency(Peak)

97%

Efficiency(Peak) Battery to INV 94%

Transfer Time

10ms (for personal computers)

20ms (for home appliances)

Wave form

Pure Sine Wave

BATTERY & AC CHARGER

Battery Voltage

24VDC

24VDC

48VDC

Floating Charge Voltage

27VDC

27VDC

54VDC

Overcharge Protection

33VDC

33VDC

63VDC

Maximum charge current

40A

80A

63A

SOLAR CHARGER

MAX.PV Array Power

2000W

4000W

5000W

MPPT [email protected] Operating Voltage

120~450VDC

Maximum PV Array Open Circuit Voltage

500VDC

Maximum Charging Current

60A

80A

80A

Maximum Efficiency

98%

PHYSICAL

Dimension.D*W*H(mm)

100*300*440

Net Weight (kgs)

8kg

9kg

10kg

Communication interface USB/RS232/GPRS/WIFI

OPERATING ENVIRONMENT

Humidity

5% to 95% Relative Humidity(Non-condensing)

Operating Temperature

0°C to 55°C

Storage Temperature

-15°C to 60°C





Why Choose TANFON solar inverter Products?

3KW Off Grid Solar inverter



1.Sample service:Applicable to quality test,function test etc

2.Repair service:Two year warranty

3.perfect after sales service system:Contact us ,we will help you quickly find the problem,then give you fast service .

4.ODM service:Powerful R&D department can provide professional technical support

5.OEM services:More than 100 pieces ,you can decide the trademark and package

6:quality utmost:Each inverter has tested by power-off test of 100 times per hour.



Solar  inverter solar Seven Management Systems:

Name Picture  Advantage
Supply System 3KW Off Grid Solar inverter



Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier.

MOS tube adopts an imported IR brand.

QC System 3KW Off Grid Solar inverter



ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate.

Production System 3KW Off Grid Solar inverter



Wall-mounted inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability

Factory Inspection System 3KW Off Grid Solar inverter



Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable.



solar inverter packing&load container:

3KW Off Grid Solar inverter



Certificate

We have ISO9001, CE, RoHS ;have pass COC,IEC62109,The test report will be applied to Algeria, Botswana, Côte d'Ivoire, Ethiopia, Gabon, Ghana, Kenya (PVoC), Kuwait (KUCAS), Lebanon, Libya, Mauritius, Nigeria (SONCAP), Philippines, Qatar, Russia, Saudi Arabia, Tanzania / Sangria Zimbabwe, Zimbabwe and Morocco countries

3KW Off Grid Solar inverter

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
