Victor THF Series High Frequency Off-Grid Solar Inverter

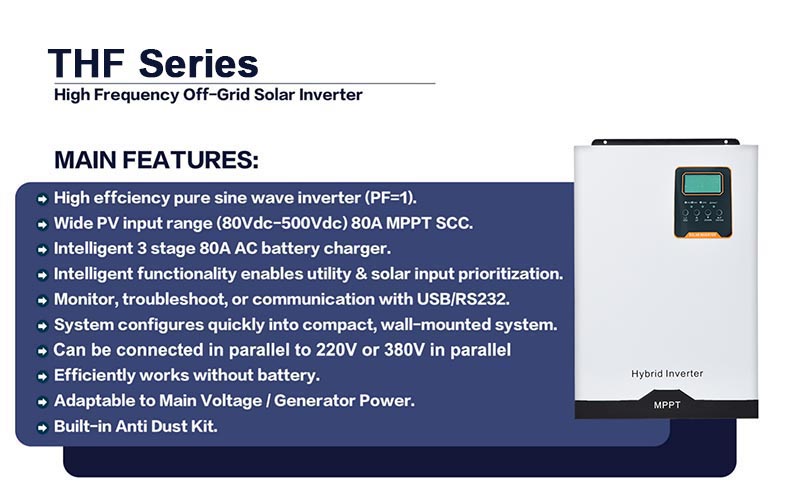

INTRODUCTION:

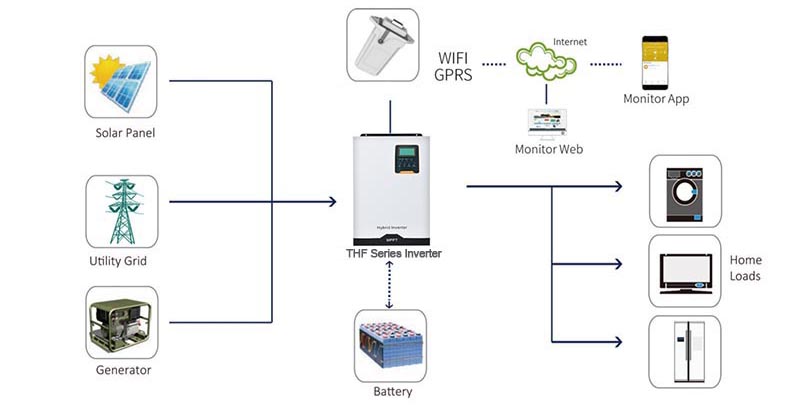

The THF Series all in one solar system is the perfect go-to solution for off-grid,backup power for homes,small business, and it also delivers a value added,easy to install system that provides efficient power globally for every need. Combined with a 80A MPPT Solar Charge Controller ,80A AC charge Controller and Pure Sinewave Inverter. Efficiently works without battery.

1500W Solar inverter
SPECIFICATION
Victor THF Plus 1500
Rated Power	1500W
System DC voltage	230 VAC
Monitoring Option	Wifi or Gprs
Inverter Output
Inverter Output	230VAC土5%
Surge Power	3000VA
Peak Efficiency	94%
Tansfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure Sine Wave
Solar Charger&AC Charger
Max. PV Array Open Circuit Voltage	450 VDC
Max. PV Array Power	2000W
Operating Voltage MPPT Range	80 ~ 430VDC
Battery Overcharge Protection	16 VDC
Max. Solar Charge Current	80A
Max. AC Charge Current	80A
Max. Charge Current	80A
Physical
Dimension	100 x 300 x 440mm
Net Weight	6.9KG
Communication Interface	USB/RS232
Environment
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C-55°C
Storage	-15°C-60°C

2500W Solar inverter
SPECIFICATION
Victor THF Plus 2500
Rated Power	2500W
System DC voltage	230 VAC
Monitoring Option	Wifi or Gprs
Inverter Output
Inverter Output	230VAC土5%
Surge Power	5000VA
Peak Efficiency	94%
Tansfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure Sine Wave
Solar Charger&AC Charger
Max. PV Array Open Circuit Voltage	450 VDC
Max. PV Array Power	3000W
Operating Voltage MPPT Range	80 ~ 430VDC
Battery Overcharge Protection	31 VDC
Max. Solar Charge Current	80A
Max. AC Charge Current	80A
Max. Charge Current	80A
Physical
Dimension	100 x 300 x 440mm
Net Weight	7.2KG
Communication Interface	USB/RS232
Environment
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C-55°C
Storage	-15°C-60°C

3200W Solar inverter
SPECIFICATION
Victor THF Plus 3200
Rated Power	3200W
System DC voltage	230 VAC
Monitoring Option	Wifi or Gprs
Inverter Output
Inverter Output	230VAC土5%
Surge Power	6400VA
Peak Efficiency	94%
Tansfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure Sine Wave
Solar Charger&AC Charger
Max. PV Array Open Circuit Voltage	500 VDC
Max. PV Array Power	5000W
Operating Voltage MPPT Range	120 ~ 450VDC
Battery Overcharge Protection	33 VDC
Max. Solar Charge Current	100A
Max. AC Charge Current	100A
Max. Charge Current	100A
Physical
Dimension	100 x 300 x 440mm
Net Weight	7.8KG
Communication Interface	USB/RS232
Environment
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C-55°C
Storage	-15°C-60°C

5200W Solar inverter
SPECIFICATION
Victor THF Plus 5200
Rated Power	5200W
System DC voltage	230 VAC
Monitoring Option	Wifi or Gprs
Inverter Output
Inverter Output	230VAC土5%
Surge Power	10400VA
Peak Efficiency	94%
Tansfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure Sine Wave
Solar Charger&AC Charger
Max. PV Array Open Circuit Voltage	500 VDC
Max. PV Array Power	6000W
Operating Voltage MPPT Range	120 ~ 450VDC
Battery Overcharge Protection	63 VDC
Max. Solar Charge Current	100A
Max. AC Charge Current	100A
Max. Charge Current	100A
Physical
Dimension	100 x 300 x 440mm
Net Weight	10.2KG
Communication Interface	USB/RS232
Environment
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C-55°C
Storage	-15°C-60°C
