single phase 1kw 2kw 3kw PV on grid solar inverter

Product Specification:
  • Brand Name : TANFON
  • Model Number : HBF1K-HBF3K
  • Output Power : 1kw-3kw
  • Output Type : Single
Inquiry Now
Product Details

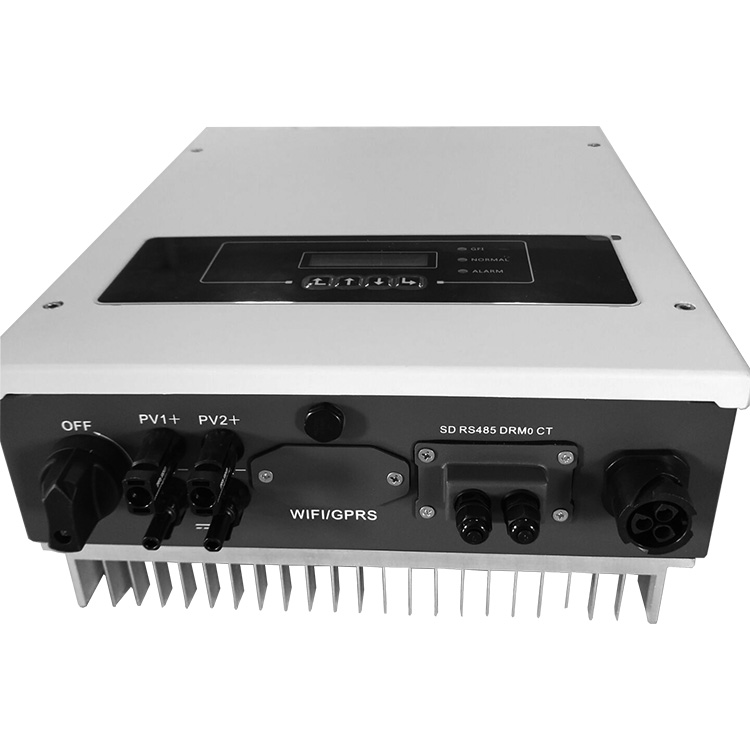

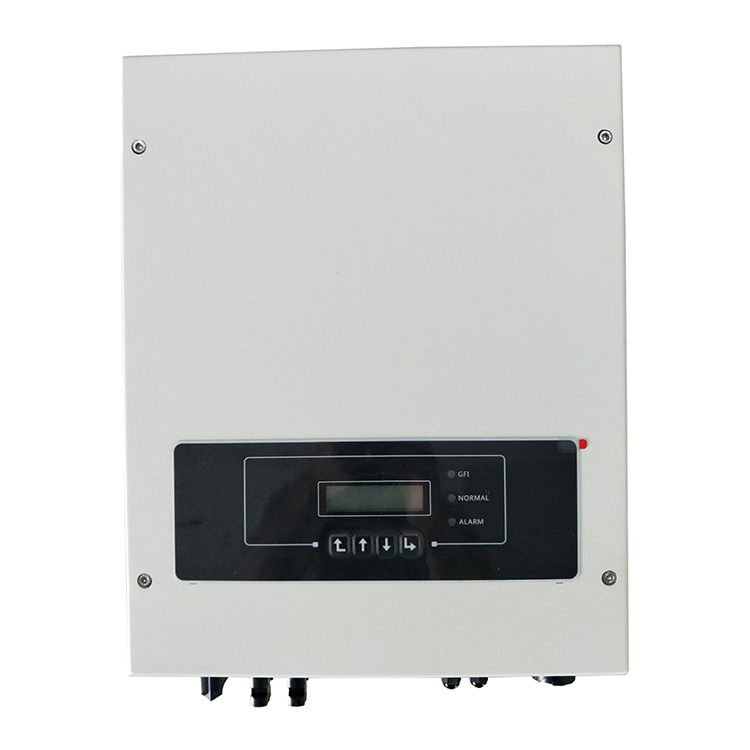

PV on-grid inverter

Description of this PV on-grid inverter

  1. Real time monitors inverters remotely by data logger
  2. Multilingual support available
  3. Efficient non-isolated topological structure
  4. Temperature range -25’C to 60’C, Compact design, easy to install

Performance Feature

  1. Controlled by TI Digital DSP
  2. Controlled by high efficient MPPT to track the maximum PV output, MPPT rate >99%
  3. Pure sine wave output, automatic synchronization to grid, low harmonics
  4. Anti-island protected by disturbance detection
  5. Excellent functions of protection and alarm
  6. Optional CAN, Ethernet, RS485, Bluetooth ports and remote data collection

Working circuit diagram

PV on-grid inverter

PV on-grid inverter

Specification



Item

HBF1K

HBF2K

HBF3K

Delivery period (Week)

4

4

4

Type

Outdoor

Outdoor

Outdoor

Input DC

Max DC power

1.9KW

2.8KW

3.9KW

Max. DC input voltage

450V

450V

5000V

MPP voltage range

90-450V

100-500V

100V-500V

Rated input voltage (V)

360V

360V

360V

Maximum input current

10A

15A

15A

Number of MPPT inputs

1

1

1

Number of DC inputs

1

1

1

Output AC

Rated power

1KVA

2KVA

3KVA

Rated AC voltage

120/230V

120/230V

120/230V

Rated frequency (Hz)

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

Max. output current (A)

7A

12A

13A

THD (rated power)

<2%

<2%

<2%

Power factor at rated power

≥0.99

≥0.99

≥0.99

Connection phases

Single-phase

Single-phase

Single-phase

Efficiency

Max. efficiency

97.40%

97.40%

97.40%

European efficiency

96.70%

96.70%

96.70%

Protection

Input-side disconnection device

no

no

no

Output-side disconnection device

no

no

no

Grid monitoring

Ground fault monitoring

Insulation monitoring

Electrical isolation

no

no

no

Physical

Dimensions (W) (mm)

405*314*135

405*314*135

405*314*135

Package

3800/40HQ

3800/40HQ

3800/40HQ

Weight (Kg)/per unit

17

17

17

Weight (Kg)/per 40HQ

64600 KGS

64600 KGS

64600 KGS

Operating temperature range (℃)

-25~+60

-25~+60

-25~+60

Max self-consumption

20W/0W

20W/0W

20W/0W

Cooling concept

Self- cooling

Self- cooling

Self- cooling

Degree of Protection

IP65

IP65

IP65

Application

Relative humidity range (non-condensation)

0~95%

0~95%

0~95%

Max operating altitude above MSL

2000 m

2000 m

2000 m

Feature

Display

LCD

LCD

LCD

Communication interface

RS485

RS485

RS485

Certification

CE

CE

CE



Item

HBF4K

HBF5K

HBF6K

Delivery period (Week)

1

1

1

Type

Outdoor

Outdoor

Outdoor

Input DC

Max DC power

4.4KW

5.5KW

6.6KW

Max. DC input voltage

550v

600v

600v

MPP voltage range

90V-580V

Rated input voltage (V)

360V

360V

360V

Maximum input current

20A

20A

20A

Number of MPPT inputs

2

2

2

Number of DC inputs

1

1

1

Output AC

Rated power

4KVA

5KVA

6KVA

Rated AC voltage

120/230V

120/230V

120/230V

Rated frequency (Hz)

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

Max. output current (A)

20A

25A

25A

THD (rated power)

<2%

<2%

<2%

Power factor at rated power

≥0.99

≥0.99

≥0.99

Connection phases

Single-phase

Single-phase

Single-phase

Efficiency

Max. efficiency

97.40%

97.40%

97.40%

European efficiency

96.30%

96.30%

96.30%

Protection

Input-side disconnection device

no

no

no

Output-side disconnection device

no

no

no

Grid monitoring

Ground fault monitoring

Insulation monitoring

Electrical isolation

no

no

no

Physical

Dimensions (W) (mm)

478*344*170

478*344*170

478*344*170

Weight (Kg)/per unit

16.8

16.8

16.8

Operating temperature range (℃)

-25~+60

-25~+60

-25~+60

Max self-consumption

20W/0W

20W/0W

20W/0W

Cooling concept

Forced cooling

Forced cooling

Forced cooling

Degree of Protection

IP65

IP65

IP65

Application

Relative humidity range (non-condensation)

0~95%

0~95%

0~95%

Max operating altitude above MSL

2000 m

2000 m

2000 m

Feature

Display

LCD

LCD

LCD

Communication interface

RS485

RS485

RS485



Item

HBF10K

HBF15K

HBF20K

Delivery period (Week)

1

1

1

Type

Outdoor

Outdoor

Outdoor

Input DC

Max DC power

10.4KW

15.6KW

20.6KW

Max. DC input voltage

1000v

1000v

1000v

MPP voltage range

160V-960V

250V-960V

250V-960V

Rated input voltage (V)

600V

600V

600V

Maximum input current

24A

42A

42A

Number of MPP inputs

2

2

2

Number of DC inputs

2

2

2

Output AC

Rated power

10KVA

15KVA

20KVA

Rated AC voltage

220/380V

380V

380V

Rated frequency (Hz)

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

Max. output current (A)

16.1A

24.2A

31A

THD (rated power)

<2%

<2%

<2%

Power factor at rated power

≥0.99

≥0.99

≥0.99

Connection phases

Three-phase

Three-phase

Three-phase

Efficiency

Max. efficiency

97.40%

97.40%

97.40%

European efficiency

96.30%

96.30%

96.30%

Protection

Input-side disconnection device

no

no

no

Output-side disconnection device

no

no

no

Grid monitoring

Ground fault monitoring

Insulation monitoring

Electrical isolation

no

no

no

Physical

Dimensions (W) (mm)

483*452*200

709*452*246

709*452*246

Weight (Kg)/per unit

22

45

45

Operating temperature range (℃)

-25~+60

-25~+60

-25~+60

Max self-consumption

20W/0W

20W/0W

20W/0W

Cooling concept

Forced cooling

Forced cooling

Forced cooling

Degree of Protection

IP65

IP65

IP65

Application

Relative humidity range (non-condensation)

0~95%

0~95%

0~95%

Max operating altitude above MSL

2000 m

2000 m

2000 m

Feature

Display

LCD

LCD

LCD

Communication interface

RS485

RS485

RS485



Item

HBF30K

HBF50K

HBF100K

Delivery period (Week)

1

1

1

Type

Outdoor

Outdoor

Indoor

Input DC

Max DC power

31KW

52KW

110KW

Max. DC input voltage

1000v

1000v

1000v

MPP voltage range

250V-960V

250V-960V

480V-960V

Rated input voltage (V)

600V

600V

600V

Maximum input current

42A

42A

42A

Number of MPP inputs

2

2

2

Number of DC inputs

4

4

4

Output AC

Rated power

30KVA

50KVA

100KVA

Rated AC voltage

220/380V

220/380V

220/380V

Rated frequency (Hz)

50Hz/60Hz

50Hz/60Hz

50Hz/60Hz

Max. output current (A)

16.1A

24.2A

31A

THD (rated power)

<2%

<2%

<2%

Power factor at rated power

≥0.99

≥0.99

≥0.99

Connection phases

Three-phase

Three-phase

Three-phase

Efficiency

Max. efficiency

97.40%

97.40%

97.40%

European efficiency

96.30%

96.30%

96.30%

Protection

Input-side disconnection device

no

no

no

Output-side disconnection device

no

no

no

Grid monitoring

Ground fault monitoring

Insulation monitoring

Electrical isolation

no

no

no

Physical

Dimensions (W) (mm)

767*564*291

767*564*291

737*713*297

Weight (Kg)/per unit

68

70

125

Operating temperature range (℃)

-25~+60

-25~+60

-25~+60

Max self-consumption

20W/0W

20W/0W

20W/0W

Cooling concept

Forced cooling

Forced cooling

Forced cooling

Degree of Protection

IP65

IP65

IP65

Application

Relative humidity range (non-condensation)

0~95%

0~95%

0~95%

Max operating altitude above MSL

2000 m

2000 m

2000 m

Feature

Display

LCD

LCD

LCD

Communication interface

RS485

RS485

RS485

On grid inverter price list:

MODEL

PRICE(USD)

PRICE(USD)

HBF1K(60V-420V)

USD550(110V)

USD303(220V)single phase

HBF2K(60V-420V)

USD572(110V)

USD320(220V)single phase

HBF3K(260V-420V)

USD715(110V)

USD340(220V)single phase

HBF4K(260V-420V)

USD953(110V)

USD395(220V)single phase

HBF5K(260V-420V)

USD965(110V)

USD410(220V)single phase

HBF6K(260V-420V)

USD989(110V)

USD422(220V)single phase

HBF10K(380V-800V)

USD753(380V)

USD1680(220V)three phase

HBF15K(380V-800V)

USD974(380V)

USD2520(220V)three phase

HBF20K(468V-800V)

USD1102(380V)

USD2668(220V)three phase

HBF30K(468V-800V)

USD1507(380V)

USD4123(220V)three phase

HBF50K(468V-800V)

US1893(380V)

USD5648(220V)three phase

HBF100K(468V-800V)

USD3787(380V)

USD14926(220V)three phase



Remark:

1) All price are FOB foshan sample price ,discount base on the quantity

2)Payment term:T/T full in advance for sample order .quantity order can accept OEM

3)Warranty :5 years.during the warranty ,will ship the free parts for after sales service .

4)Delivery time :sampel for 3-7 days.

5)50pcs or more:need 15 days.

6)after sales service:during the warranty ,ship the free PCB parts for service
