Solar Charge Controller

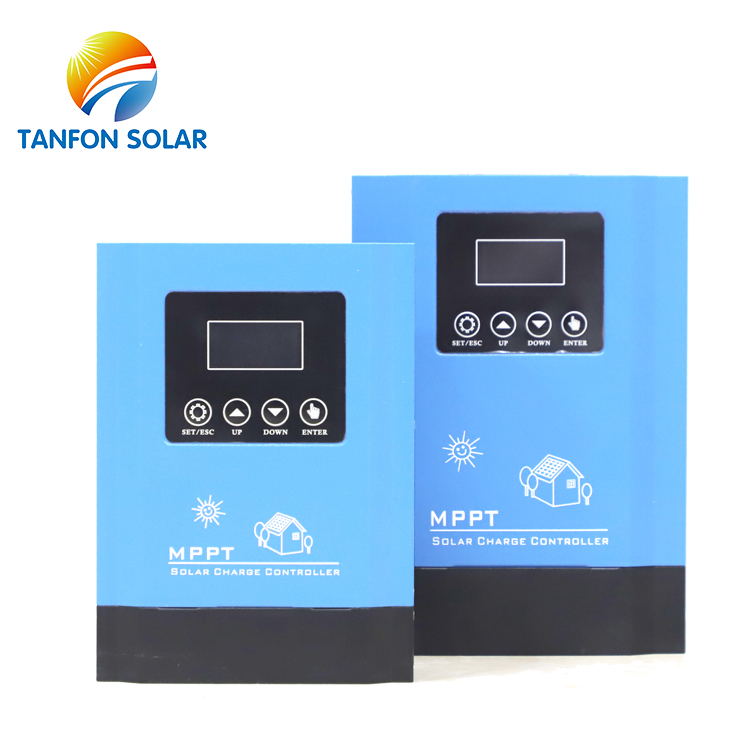

20A-60A MPPT solar charge controller

Product Specification:
  • Brand Name : TANFON
  • Model : TC
  • Voltage : 12V 24V 48V Auto
  • Current : 20A-60A
Inquiry Now
Product Details
One-stop service
Customer Feedback

solar charge controller

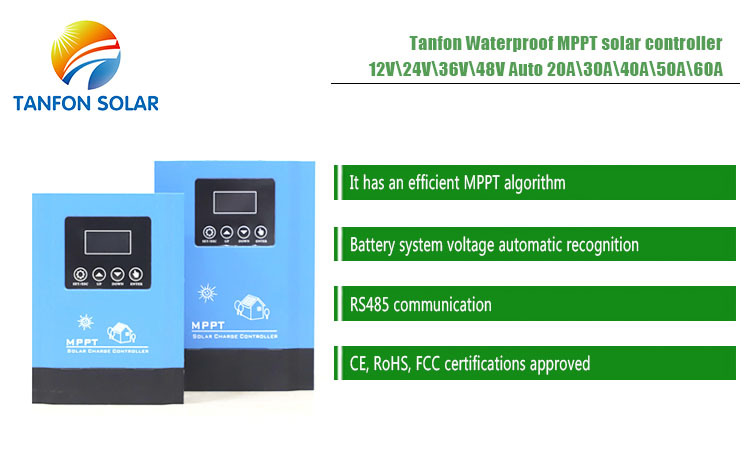

Feature:

  1. MPPT efficiency ≥99.5%,and converter efficiency up to 98%
  2. Charge mode: three stages,it prolongs service life of the batteries.
  3. Battery system voltage automatic recognition
  4. Four stage charge way,Full automatic electronic protect function
  5. With RS485 and USB communication port
  6. Electronic protection: over charging, over discharging, overload, short circuit.
  7. Support PC software monitoring
  8. 3 years warranty, and 3~10 years extended warranty service also can be provided
  9. Reverse protection: any combination of solar module and battery,no damage to any component.
  10. Widely used, automatic recognize day/night

Specification:

TC

20A

30A

40A

50A

60A

charge mode

Three phases: (MPPT) with constant current, constant voltage, floating

overall efficiency

12V/24V/36V/48V

60V/72V96V optional

≥99%

Input characteristics

MPPT working voltage range

12V 24V system DC34V-DC150V

36V 48V system DC65V-DC150

48V 60V system DC65V-DC170V

72V96V system DC85V-DC180V

PV maximum open-circuit voltage input

82V/82V/164V

The largest solar panels power input

12V system(W)

290W

460W

570W

700W

900W

24V system(W)

570W

900W

1130W

1400W

1700W

48V system(W)

1130W

1700W

2270W

2800W

3400W

charge characteristic

Battery types

12V/24V/48V system

Sealed lead acid battery, discharge type pool, gel battery, nickel cadmium batteries ternary lithium battery lithium iron phosphate batteries (can also be customized for other kinds of battery)

Rate current

12V/24V/48V system

20A

30A

40A

50A

60A

Product size length * width * height

276*241*100mm

N.W(kg)

3

3

3

3

3.5

50A and 60A  developing stage
