Solar Charge Controller

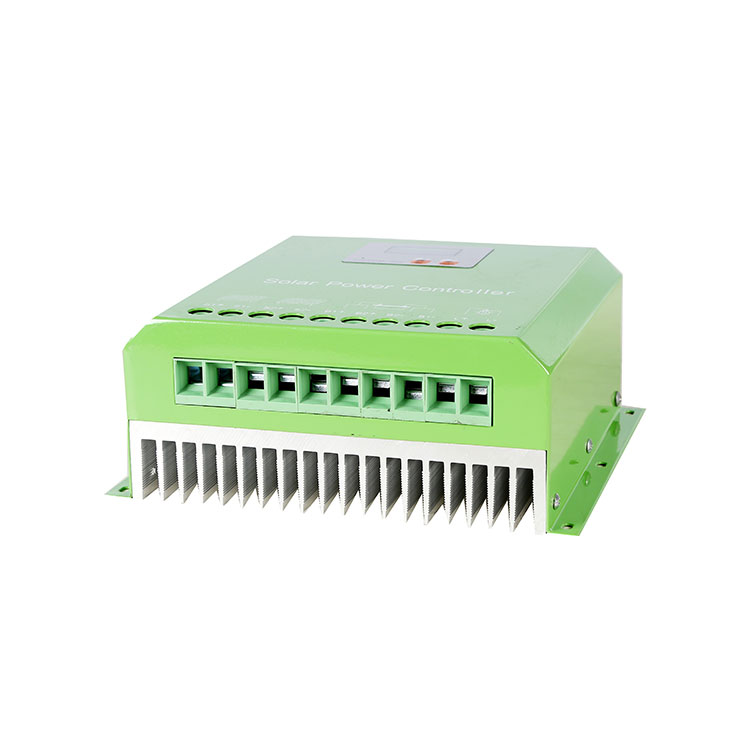

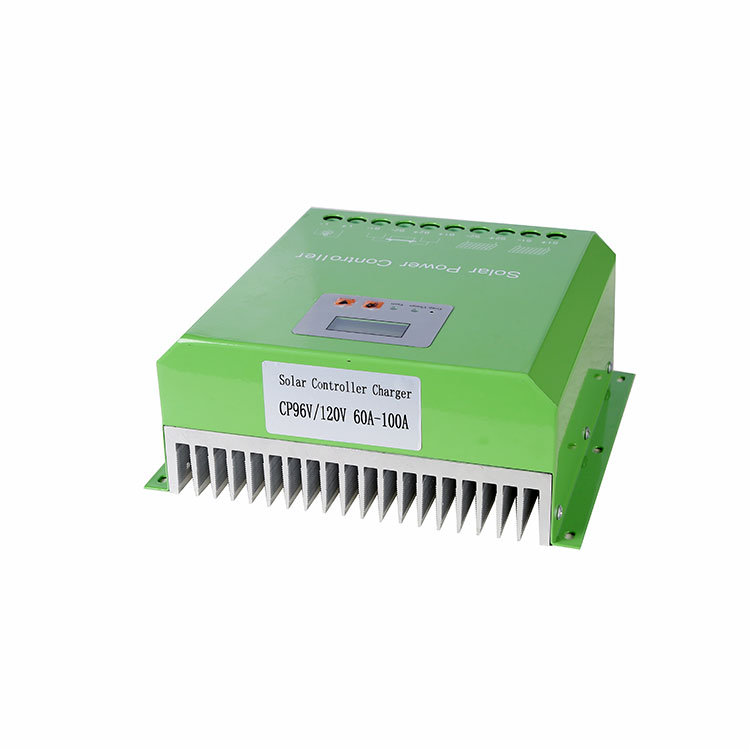

80A 100A mppt solar power charge controller

Product Specification:
  • Brand Name : TANFON
  • Model Number : CP series
  • Rated Charge Current : 80A~100A
Inquiry Now
Product Details
One-stop service
Customer Feedback

Solar power charge controller

CP series solar power charge controller features

Our MPPT controller which represents advanced technology. The features are listed below:

  1. Advanced maximum power point tracking technology to optimize using the solar system.
  2. Peak conversion efficiency of 95%, high Tracking efficiency of 97%.
  3. Very fast sweeping of the entire I-V curve several seconds tracking speed.
  4. Widely used, automatic recognize day/night.
  5. Timer function with 1-17 hours option for street light system.
  6. Unique dual timer function, enhance the flexibility of street light system.
  7. Sealed, Gel and Flooded battery be suitable.
  8. Adopting temperature compensation and correcting the charging and discharging parameters automatically, improving the battery lifetime.
  9. Electronic protection: over charging, over discharging ,overload short circuit.
  10. Reverse protection: any combination of solar module and battery, without causing damage to any component.
  11. Excellent thermal design and nature air cooling.

CP series 80A 100A solar power charge controller data sheet

Model CP80 CP100
Rated Charge current(A) 80 100
Rated DC voltage(V) 48/96V
Input Max voltage(V) 84/168
Battery Over charge protective voltage(V) 57.2/114.4
Over charge recover voltage(V) 54.8/109.6
Constant charge voltage(V) 54/108
Over discharge alarm voltage(V) 40/80


Environment Humidity and temperature 0-90% No condense,55℃
Protective Functions Protection against anti-charge at night,battery over charge,over discharge protection,Joint-reversed of solar modules
Control method PWM/MPPT


Solar power charge controller


Solar power charge controller

Tanfon Certificate

Solar power charge controller

We accept OEM order, contacting with us now for more information. All inquiries will be replied with in 24 hours.
