Solar Charge Controller

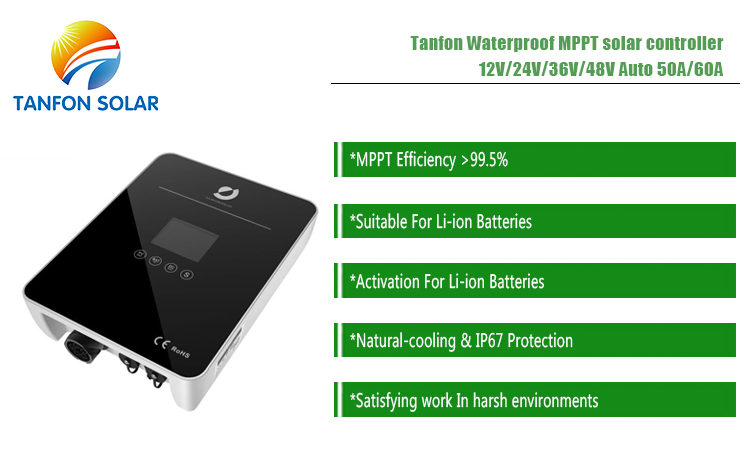

Waterproof 50A 60A MPPT charge controller

Product Specification:
  • Brand Name : TANFON
  • Model Number : Explorer Series
  • Output Power : 50A and 60A
  • Output Type : waterproof
Inquiry Now
Product Details
One-stop service
Customer Feedback

charge controller

  • MPPT Efficiency >99.5%
  •  Suitable For Li-ion Batteries
  • Activation For Li-ion Batteries
  • Natural-cooling & IP67 Protection
  • Suitable For 12V/24V/36V/48V Load Acid Batteries
  • Satisfying work In harsh environments
  • Support Parallel Connection/Compatible
    with PC Software Or APP

Explorer Series

Explorer -50A

Explorer-60A





Product Category

Controller properties

MPPT (Maximum power point tracking)

MPPT efficiency

≥99.5%

Standby power

0.5W~1.2W

System voltage

12V/24V/36V/48V auto work

Heat-Dissipating method

Fan-cooling







Input Characteristics

Max.PV input voltage(Voc)

DC150V

Start charge voltage point

Battery voltage + 3V

Low input voltage protection point

Battery voltage + 2V





PV rated power

12V system

650W

780W

24V system

1300W

1560W

36V system

1950W

2340W

48V system

2600W

3120W



Charge Characteristics

Battery types (Default Gel battery)

Gel battery, Sealed lead-acid battery, Flooded battery, User-defined

Charge rated current

50A

60A

Charge method

3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge)





LOAD Characteristics

Load voltage

Same as battery voltage

Load rated current

30A

Load control mode

On, Off , PV voltage control, Dual-time control, PV + Time control

Low voltage protection

The default protection point is 10.5V, and it is restored to 11V (can be set)

Setup method

PC software / Mobile APP / controller display



Display & Communication

Display

High-definition LCD segment code backlight display

Dry contact access voltage

5V ~ 12V

Communication

Dual RJ45 port/RS485/support PC software monitoring/support WiFi module for APP cloud monitoring/ support centralized parallel monitoring











Other Parameters

Protections

Input over/low voltage, output over/low voltage, reverse connection, over temperature, short circuit, battery shedding etc.

Operating ambient temperature

-20℃~+50℃

Storage temperature

-40℃~+75℃

IP(Ingress protection)

IP67

Max. Battery wire (mm2/AWG)

28mm2

Max. Load wire (mm2/AWG)

28mm2

Recommended breaker

≥100A

Net weight (KG)/Gross weight (KG)

4.15 / 5.5

Product size (mm)/Packing size (mm)

290×220×88 / 410×328×193

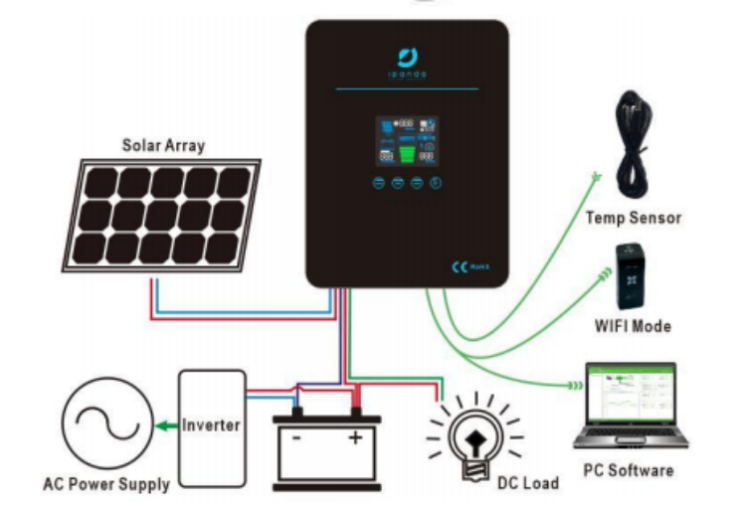

working drawing:

solar charge controller



solar controllersolar mppt controller
