200KW real estate off grid solar power system

Product Specification:
  • Brand Name : TANFON SOLAR
  • Model Number : solar system 200kw
  • DC voltage : 360V
  • Output voltage : 220V/380V/415V
  • Advantage : German Technology
Inquiry Now
Product Details
One-stop service
Customer Feedback

off grid solar system

Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.

solar panel kit

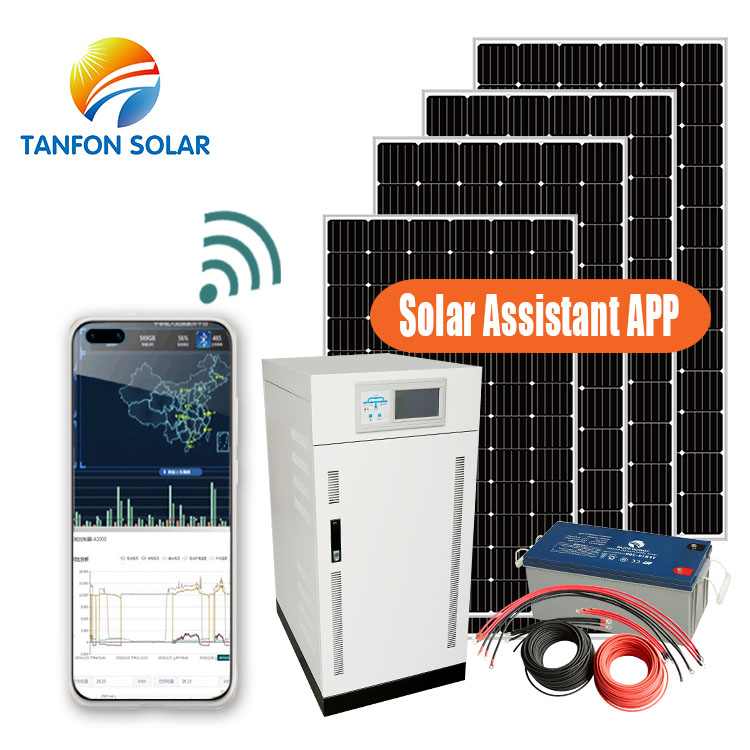

Tanfon Solar APP Super Advantage:
1)One Phone remote control ALL solar system
2)Troubleshoot and reduce maintenance costs
3)Develop your brand APP to competitiveness



three phase solar system from 5kw-300kw

For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification



For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

For our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local

off grid solar system

200KW real estate off grid solar power system

solar energy system FS380w solar panel 520pcs
H10T PV 360V combiner 4pc
360V/150A solar controller 4pc
TF200KW three phase inverter 1pc
2V/1500AH gel battery 180pcs
solar panel rack 1set
Battery cable+PV cable 1set
Packaging Information Total volume:105CBM        Total weight;27580KG
Installation area solar panel:1040m²             inverter+battery:20-60m²

200KW real estate off grid solar power system

High-end solar storage system

off grid solar system

FS380W mono solar panel(poly optional)

Vmp:38.39V  Voc:47.13V  Imp 9.75A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass:3.2mm Tem pered

Terminal block:IP65 with MC4 connector

Efficiency performance :25 years 80 % 20 year 85% 10 years 90%

Connect:each 13pcs in series, 4strings in series

off grid solar system

PV combiner

Model:H10T-360v  Multiple PV strings inputs

Simplify wiring between PV array

and controller, protections  to controller ,

Wide range of DC input voltage

Reliable thunderstorm& surge protection

MPPT controller model: 360V/150A

Charging efficiency; 90%-95%,

charging mode, intelligent control.,

various protection functions;

Can read daily,monthly and total power generation

Solar three phase Inverter power:SC200kw/360V

WiFi signal receiving module

Low voltage:324V High voltage:442V,

Charging efficiency; 90%-95%,with AC charger built-in, Protection against short-circuit,

Output: 380V 415V 50/60HZ



Solar battery

1)Gel battery,2 years warranty.

ship NEW for service.

2)Lithium battery,3 years warranty.

ship NEW for service.

Slope Rooftop or Flat rooftop

including complete fittings

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

off grid solar system

1)84pcs 25mm2*35CM battery cable

6pcs 25mm2*2M battery cable

25mm *30M

2)4mm2 PV cable 400M,16mm2 cable 50M

3)terminals and MC4* 10pairs, air breakers





                  How to control solar power system(solar panel)  quality? 200KW real estate off grid solar power system
System System Essentials Pictures

Supply

System

1. Solar cell: Dark color, black, no color difference

2. Solar Cell shape: corner piece

3. Solar cell efficiency: 21%

off grid solar system

Production

System

1. Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

2. EL test of the solar cell by EL device to ensure that the solar cell is not cracked

3. Components are fully automated production line operations

off grid solar system
QC System

1. EL tester tests the solar cell to ensure no cracks

2. The component tester performs EL and data testing before component packaging to ensure data is acceptable and components are not cracked.

3. Component products are monitored with data from a tester to ensure data is correct

off grid solar system

solar panel system

Packaging

System

1. Can be packed in carton box or wooden cases

2. The solar panel is in an upright packaging mode to reduce the transport breakage rate

off grid solar system
Factory Inspection System QC inspection qualified products, distinguish the identification zone placement, ensure the shipment quantity, model, customer name is correct.
After Sales Service System Free replacement of new solar panel during the 10-year warranty period if have any quality problem.

Solar panel production video: Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

              How to control solar power system(Solar Inverter) quality?
System System Essentials Pictures

Supply

System

1. Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier.

2. MOS tube adopts imported IR brand

3. SCR adopts imported from Germany

4. IGBT adopts Japanese Mitsubishi brand

off grid solar system

off grid solar system

Production

System

Wall-mounted inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability off grid solar system
QC System ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate. off grid solar system

Packaging

System

Power lower than 1KW inverter carton packaging, containing pearl cotton; power higher than 2KW inverter plywood wooden box packaging, containing pearl cotton. One piece one packaging. off grid solar system
Factory Inspection System Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable. off grid solar system
After Sales Service System All inverters are free to send new spare boards within the warranty. For more services, please click the link to view.

Solar inverter board production: use automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability.

                        How to control solar power system (Gel Battery) quality?
System System Essentials Pictures

Supply

System



1. Battery case, ABS material conforming to UL94HB and UL94V-0 standards, no color difference, no crack.

2. The unique lead-calcium grid improves the hydrogen evolution potential, reduces gas evolution, reduces corrosion rate, and extends battery life.

3. The use of copper terminals, excellent conductivity and high wear resistance, enhances high current discharge performance;

4. High quality AGM partition for partition



off grid solar system

Production

System



1. Battery plate production workshop, independent production of positive and negative plates, effectively ensuring the quality of the plates

2. Semi-automatic cladding machine): Semi-automatic double-layer cladding technology, double-layer separator can better prevent short circuit of the pole plate. The semi-automatic double-layer board process ensures that the packaged groups are neat, beautiful and clean.

3. Automatic slotting machine: higher efficiency, saving the process involved in manual slotting, avoiding the human contact group, maximizing the protection of the pole group, making the battery have very good self-discharge performance, battery consistency, total Voltage consistency.



off grid solar system
QC System



1. DC spectrometer: high precision detection of lead purity to ensure purity above 99.994%

2. High current detector: ensure that each battery is under high current, whether charge and discharge normal

3. Large battery tester: Under high current, whether the bus bar of the battery has a problem of melting and short circuit

4. Internal resistance meter: Make sure that the internal resistance and voltage of each battery are normal, and the consistency of the battery.



off grid solar system

Packaging

System

Carton packaging, use the inspection-free pallet to hold the shipment off grid solar system
Factory Inspection System

QC inspection qualified products, distinguish the identification zone placement, ensure the shipment quantity, model, customer name is correct

After Sales Service System

Free replacement of new batteries during the 2-year warranty period if have any quality problem



Factory inspection:



Tanfon solar certification:

Solar system application:
