20kw 20kva Solar Kit System Off Grid Battery Energy Power

Product Specification:
  • Brand Name : TANFON SOLAR
  • Model Number : Solar Power System 20kw
  • DC voltage : 48V/96V
  • Output voltage : 110V/220V
  • Advantage : German Technology
Inquiry Now
Product Details
One-stop service
Customer Feedback

Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.

For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification

For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

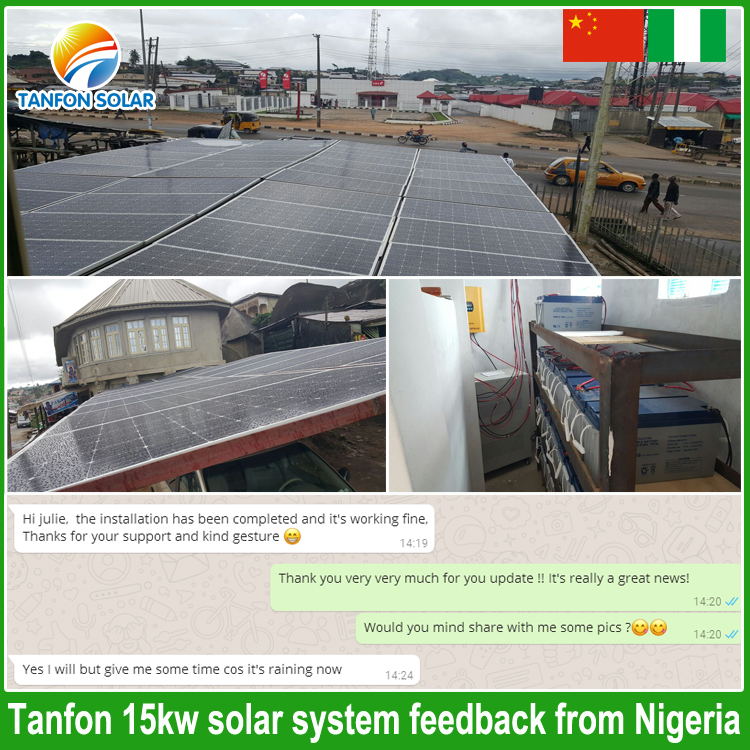

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

For our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local

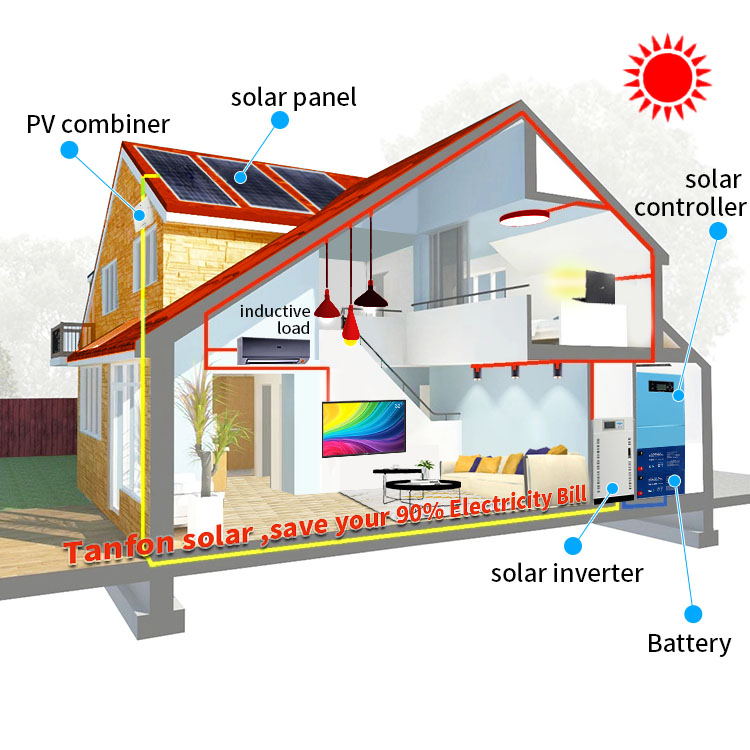

20kva Solar Kit System Off Grid Power For House
20kva Solar Kit System Off Grid FS350w solar panel 40pcs
H6T PV combiner 1pc
192V/100A solar controller 1pc
TF20KW solar inverter 1pc
192V/240AH Lithium battery 1pcs
solar panel rack 1set
Battery cable+PV cable 1set
Packaging Information Total volume;6.8CBM  Total weight:2663KG
Installation area solar panel:80m²             inverter+battery:6-10m²

Lithium battery storage 20kva Solar Kit System Off Grid Power​ For Home

High-end solar storage system

20kva Solar Kit System Off Grid Power

FS350W mono solar panel(poly optional)

Vmp:38.39V  Voc:47.13V

Imp 9.25A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass:3.2mm Tem pered

Terminal block:IP65 with MC4 connector

Efficiency performance :25 years 80 % 20 year 85% 10 years 90%

20kva Solar Kit System Off Grid Power

PV combiner

Model:H6T-192v  Multiple PV strings inputs

and controller, Prevent hot spot effect

Reliable thunderstorm& surge protection

Product Size:400*425*145mm

20kva Solar Kit System Off Grid Power

PV  controller model:192V/120A  23kw

Charging efficiency; 90%-95%,

charging mode, intelligent control.,

various protection functions;

20kva Solar Kit System Off Grid Power

Pure sine wave inverter;20kw DC input:192v

WiFi signal receiving module

AC charger 15-20A

100% Germany brand IGBT materials

Double protection, easy after sales service

O/P:110V,220VAC 50HZ or 60HZ

Product Size:590*470*730mm

20kva Solar Kit System Off Grid Power

Solar battery

1)Gel battery,2 years warranty.

ship NEW for service.

2)Lithium battery,3 years warranty.

ship NEW for service.

20kva Solar Kit System Off Grid Power

Slope Rooftop or Flat rooftop

including complete fittings

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

20kva Solar Kit System Off Grid Power

1)4pcs 16mm2*2M battery cable.

2)4mm2 PV cable 200M,100M black 100M red.

3)1set PV terminals and MC4

4)2P 100A Battery switch and box

Remark:

Compared with the traditional solar battery,it saves space and doubles the lifespan.Can be well used in home solar system,commerical solar systems, and industrial solar systems.



                  How to control 20kva Solar Kit System Off Grid Power (solar panel)  quality?
System System Essentials Pictures

Supply

System

1. Solar cell: Dark color, black, no color difference

2. Solar Cell shape: corner piece

3. Solar cell efficiency: 21%

20kva Solar Kit System Off Grid Power

Production

System

1. Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

2. EL test of the solar cell by EL device to ensure that the solar cell is not cracked

3. Components are fully automated production line operations

20kva Solar Kit System Off Grid Power
QC System

1. EL tester tests the solar cell to ensure no cracks

2. The component tester performs EL and data testing before component packaging to ensure data is acceptable and components are not cracked.

3. Component products are monitored with data from a tester to ensure data is correct

20kva Solar Kit System Off Grid Power

20kva Solar Kit System Off Grid Power

Packaging

System

1. Can be packed in carton box or wooden cases

2. The solar panel is in an upright packaging mode to reduce the transport breakage rate

20kva Solar Kit System Off Grid Power
Factory Inspection System QC inspection qualified products, distinguish the identification zone placement, ensure the shipment quantity, model, customer name is correct.
After Sales Service System Free replacement of new solar panel during the 10-year warranty period if have any quality problem.

Solar panel production video: Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

              How to control 20kva Solar Kit System (Solar Inverter) quality?
System System Essentials Pictures

Supply

System

1. Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier.

2. MOS tube adopts imported IR brand

3. SCR adopts imported from Germany

4. IGBT adopts Japanese Mitsubishi brand

20kva Solar Kit System Off Grid Power

20kva Solar Kit System Off Grid Power

Production

System

Wall-mounted inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability 20kva Solar Kit System Off Grid Power
QC System ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate. 20kva Solar Kit System Off Grid

Packaging

System

Power lower than 1KW inverter carton packaging, containing pearl cotton; power higher than 2KW inverter plywood wooden box packaging, containing pearl cotton. One piece one packaging. 20kva Solar Kit System Off Grid Power
Factory Inspection System Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable. 20kva Solar Kit System Off Grid
After Sales Service System All inverters are free to send new spare boards within the warranty. For more services, please click the link to view.
