Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.
For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification
For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project，solar goverment project etc)
we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.
For our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local

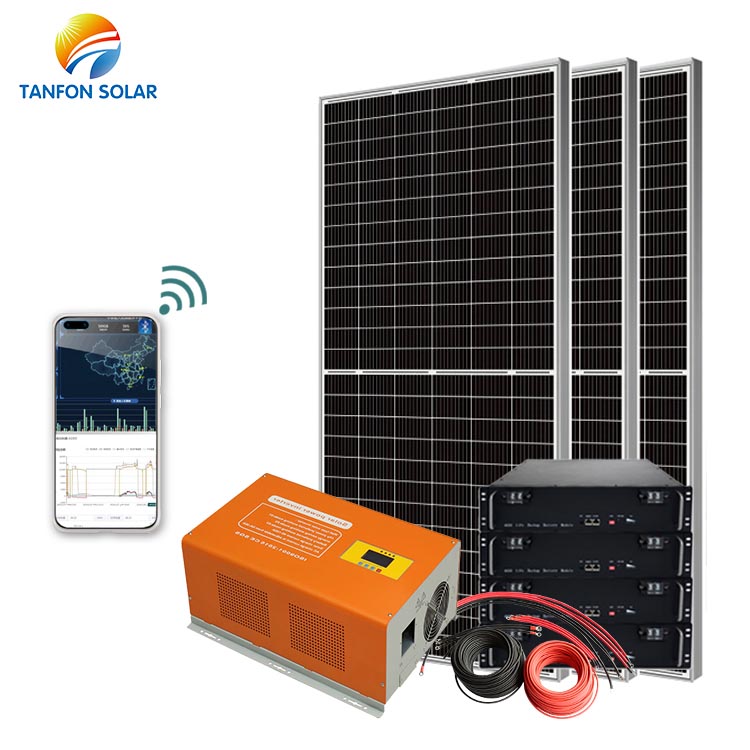

|3000W Solar Panel System Off Grid Power Kit|
|FS350w solar panel||6pcs|
|WSC3kw solar hybrid inverter||1pc|
|48V/170AH Lithium battery||1pcs|
|solar panel rack||1set|
|Battery cable+PV cable||1set|
|Packaging Information||Total volume;1.56CBM Total weight:453KG|
|Installation area||solar panel;12m² inverter+battery:3-5m²|
FS350W mono solar panel(poly optional)
Size : 1956*992*40mm
25 years life time (CE TUV)
Coated steel Glass:3.2mm Tem pered
Terminal block：IP65 with MC4 connector
Efficiency performance :25 years 80 % 20 year 85% 10 years 90%
Model:H3T-48v Multiple PV strings inputs
and controller, Prevent hot spot effect
Reliable thunderstorm& surge protection
Solar hybrid inverter
WiFi signal receiving module
Wall type Inverter power:3kw/48v
PV Controller model:48v/40A
AC charger :10-15A
100% USA brand MOS materials
Double protection, easy after sales service
O/P:110V,220VAC and 5V/12VDC
1)Gel battery,2 years warranty.
ship NEW for service.
2)Lithium battery,3 years warranty.
ship NEW for service.
Slope Rooftop or Flat rooftop
including complete fittings
wind load:55m/s,snow load:1.5kn/m2
structure:Anodized Aluminum+stainless steel, Angle adjustable
1)4pcs 16mm2*2M battery cable.
2)4mm2 PV cable 100M,50M black 50M red.
3)1set PV terminals and MC4
4)1P 63A Battery switch and box
