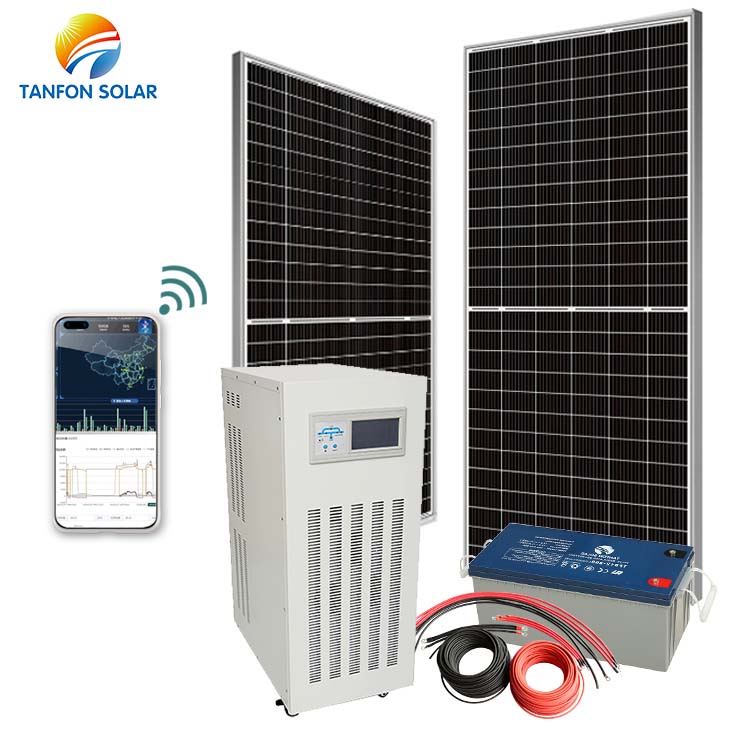

45KW Solar System Price Off Grid 45KVA Solar Power Panel With Battery

Product Specification:
  • Brand Name : TANFON SOLAR
  • Model Number : 45KW Solar Power System
  • DC voltage : 96V/360V
  • Output voltage : 220V/380V
  • Advantage : German Technology
  • Certificate : ISO, ETL, TUV, CE, RoHS
  • Payment : T/T, L/C, Paypal, Western Union
Inquiry Now
Product Details
One-stop service
Customer Feedback

45KW Solar System Price Off Grid 45KVA Solar Power Panel With Battery

45KW Solar System Price



Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.



For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification



For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

For our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local



Product Details



45KW Solar System Price Off Grid 45KVA Solar Power Panel With Battery

45KW Solar System Price

Solar Panel (Quantity: 104 pieces)

FS380W mono solar panel(poly optional)

Vmp: 38.39V       Voc: 47.13V       Imp: 9.25A

Size: 1956*992*40mm

Coated steel Glass: 3.2mm Tempered

Terminal block: IP65 with MC4 connector

Efficiency performance: 25 years 80 %, 20 year 85%, 10 years 90%. 25 years life time  (CE RoHS)

PV combiner (Quantity: 1 piece)

Model: H8T-360v Multiple PV strings inputs

Simplify wiring between PV array and controller, protections  to controller, Prevent hot spot effect

Wide range of DC input voltage

Reliable thunderstorm & surge protection

45KW Solar System Price

solar generator controller

Solar Controller (Quantity: 1 piece)

MPPT controller model: 360v/120A

Charging efficiency: 90%-95%,

Charging mode, intelligent control.

Temperature compensation,

Various protection functions

Solar Battery (Quantity: 60 pieces)

Capacity: 12V/200AH

Full sealed Solar power gel battery,

Service life: 6-8 years ,

Size: 522*240*219mm

45KW Solar System Price

45KW Solar System Price

Solar Inverter (Quantity: 1 piece)

Solar three phase Inverter power:T45kw/360v

Low voltage: 324V         High voltage: 426V

Charging efficiency; 90%-95%, with AC charger built-in, Protection against short-circuit,

Output: 220V 380V 415V 50/60HZ

Solar Panel Rack (Quantity: 1 set)

Slope Roof or Flat roof or Ground (option)

including complete fittings

wind load: 55m/s, snow load:1.5kn/m2

structure: Anodized Aluminum + stainless steel

solar panel mounting rack

pv cables

Cables (Quantity: 1 set)

48pcs 16mm2*35CM battery cable

4pcs 16mm2*1M battery cable

4mm2 PV cable 200M

Terminals and MC4



If you want to have Solar Panel to generate energy and save cost about the electricity. If you need to have energy by solar panel system to works for house, farm, hotel, factory, hospital, office, school, airport, etc.

Please contact to us to discuss more details, we can support to you all you need with your requirement.



Get Price Of 45KW Solar System Now



Solar Power System Projects



solar power projects

Tanfon Airport Projects 60kw Solar System in Indonesia (click to know more details about this project)

60kw three phase solar power system



Why Choose Tanfon?

Quality:

  • Each set solar power system has tested by power-off test of 100 times per hour.

Service:

  • Pre-sale: Have been served for 120 countries professional teams will free to hlep you to design and big project site survey.

  • Selling: Three days per time of follow-up services, video inspection.

  • After sales: Engineer can be on-site installation service.

Efficiency:

  • Project design solution will send to you quickly within 1 hour

  • The fastest will be shipped in 7 days

  • The engineer will arrive at the installation site within 10 days after the goods arrived at port.
