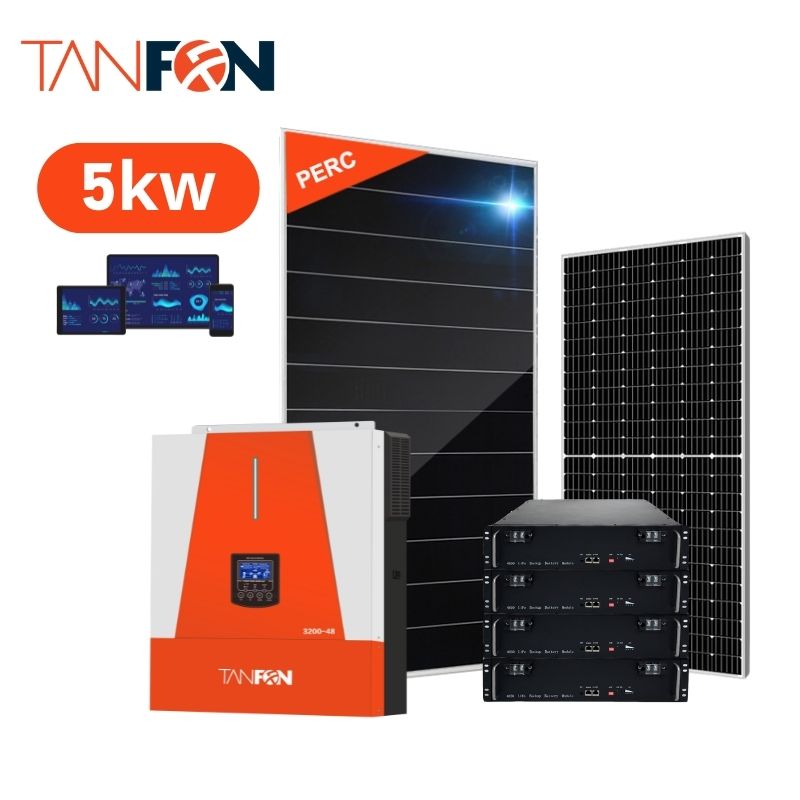

Residential 5KW 5000 Watt Lithium battery Solar Power System Kit

Product Specification:
  • Brand Name : TANFON
  • Model Number : 5KW Solar Power System
  • DC voltage : 96V
  • Output voltage : 110V/220V
  • Advantage : German Technology
  • Certificate : ISO, ETL, TUV, CE, RoHS
  • Payment : T/T, L/C, Paypal, Western Union
Inquiry Now
Product Details
One-stop service
Customer Feedback

What's Included:

5KW 5000 Watt Solar Power System
350W Solar Panel 12 (Pcs)
Hybrid Inverter 5KW IGBT inverter
H4T PV Combiner 1 (Set)
Lithium Battery 96V 170AH
Quantity of Battery 1 (Pcs)
DC Cable 100 (m)
Mounting System Full set
Battery Rack Full set
Battery cable+PV cable 1 (Set)
Monitoring System 1 (Set)
PV Tools Full set
Packaging Information volume:2.83CBM Weight:763KG
Installation area solar panel:12m²-inverter+battery:3-5m²

Note: The electricity produced every day in the picture is the maximum value reached after 6 hours of sunlight.



Product details

FS350W mono solar panel(poly optional)

Vmp:38.39V  Voc:47.13V

Imp 9.25A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass:3.2mm Tem pered

Terminal block:IP65 with MC4 connector

Efficiency performance :25 years 80 % 20 year 85% 10 years 90%

Model:H4T-96v Multiple PV strings inputs

and controller, Prevent hot spot effect

Reliable thunderstorm& surge protection

Product Size:400*425*145mm

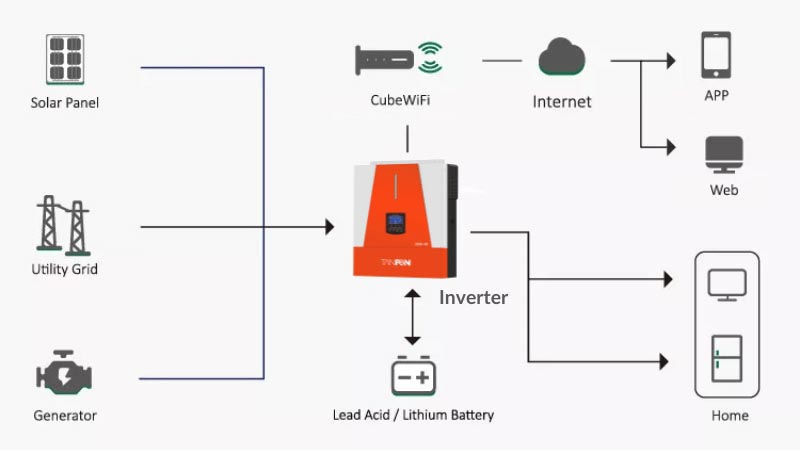

controller+inverter

WiFi signal receiving module

PV  controller model:96V/60A

Charging efficiency; 90%-95%,

charging mode, intelligent control.,

various protection functions;

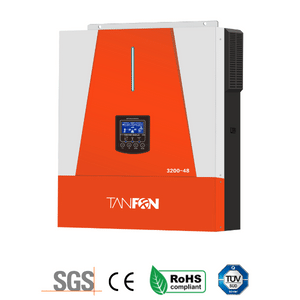

IGBT Inverter:5KW96VDC

110V/120V/220V/230V/240VAC output,

City power and generator charger build in Overload, overcharge, over-discharge protection  Fuji brand IGBT material

Solar battery

1)Gel battery,2 years warranty.

ship NEW for service.

2)Lithium battery,3 years warranty.

ship NEW for service.

Monitoring System
Data Logging Stick allows you to receive information from solar power system, in order to keep you informed about the situation of
your PV system, and the atmosphere conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi,Lan or GPRS. for PC, IOS & Andriod

Slope Rooftop or Flat rooftop

including complete fittings

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

Cable

1)4pcs 16mm2*2M battery cable.

2)4mm2 PV cable 100M,50M black 50M red.

3)1set PV terminals and MC4

4)1P 63A Battery switch and box

Installation Tools

hammer*pliers*screwdriver

Disassembly tool gloves

Screwdriver 5mm

Disassembly tool

Most Complete Configuration

Configuration is most complete on the market, which includes all necessary components. After the installation is complete, it can be directly used by household appliances.

Super load capacity, with complete short circuit protection, overvoltage protection, overload protection, backfill protection, insulation resistance protect

For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification

For our project case: Our products have been sold to more than 160 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

For our Global service in Thailand, Kenya, Senegal, Mozambique, will build 120 service centers all over the world. Provide Strong After-Sales Service To Countries in Africa, Latin America and Asia.

Get Price Now



Tanfon Factory



Transport Packaging

Can be packed in carton box or wooden cases, The solar panel is in an upright packaging mode to reduce the transport breakage rate, Free replacement of new solar panel during the 10-year warranty period if have any quality problem.



Overseas Projects:

Our products have been sold to more than 160 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

More tanfon cases



Customer service:

After 12 years of deep cultivation, we have successfully helped 28 customers to grow up and cooperate together to develop the local market more comprehensively.

Specializing in installing projects from design, detailing, fabrication to erection, having continue cooperation with engineers, exclusive agents and the foreign business partners, we are now sincerely hoping to join hands with you to create a better future together at the principle of win-win cooperation (send inquiry to know more)



Overseas exhibitions:



Certificate

TANFON mission:

Make the world away of the expensive electricity.

TANFON advantage:

German technology, Chinese prices, global service.



Q1. Are you factory?

A1. Yes, our factory and sales department are

located in Foshan and we would be pleased to welcome

you in our factory at any time when you are in Foshan.



Q2. How long is solar power products warranty?

A2. YES, products are at least 8 years warranty.



Q3. What is the shipping way of solar power products?

A3. Ship by sea.



Q4. What is the payment method?

A4. We normally require a T/T advance payment.

30% deposit and 70% before shipping.

Western Union / MoneyGram /Alibaba can also be used.



Q6. Can we add our logo on products?

A6. YES.you can add your logo on products.



Q7. Can we customize product?

A7. YES. OEM & ODM.



Q8. What is TANFON solar power products

after sales service

A9. During the warranty, ship free PCB by DHL or FEDEX.



Q9. What is your trade Asusurance

A10:100% product quality protection

        100% product on time shipment protection

        100% payment protection for your covered amount

        If you have more question, welcome to contact us freely,

       Choose TANFON, Choose Satisfaction!
