Solar Power For Industrial Use 25kw Photovoltaic Solar Panels System CE ROHS

Product Specification:
  • Brand Name : TANFON SOLAR
  • Model Number : solar system 25kw
  • DC voltage : 192V
  • Output voltage : 110V/220V
  • Battery type : Gel or lithium
  • Advantage : German Technology
  • Certificate : ISO, ETL, TUV, CE, RoHS
  • Payment : T/T, L/C, Paypal, Western Union
Inquiry Now
Product Details
One-stop service
Customer Feedback

solar power plant

Tanfon Solar APP Super Advantage:
1)One Phone remote control ALL solar system
2)Troubleshoot and reduce maintenance costs
3)Develop your brand APP to competitiveness



Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.

For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification

For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

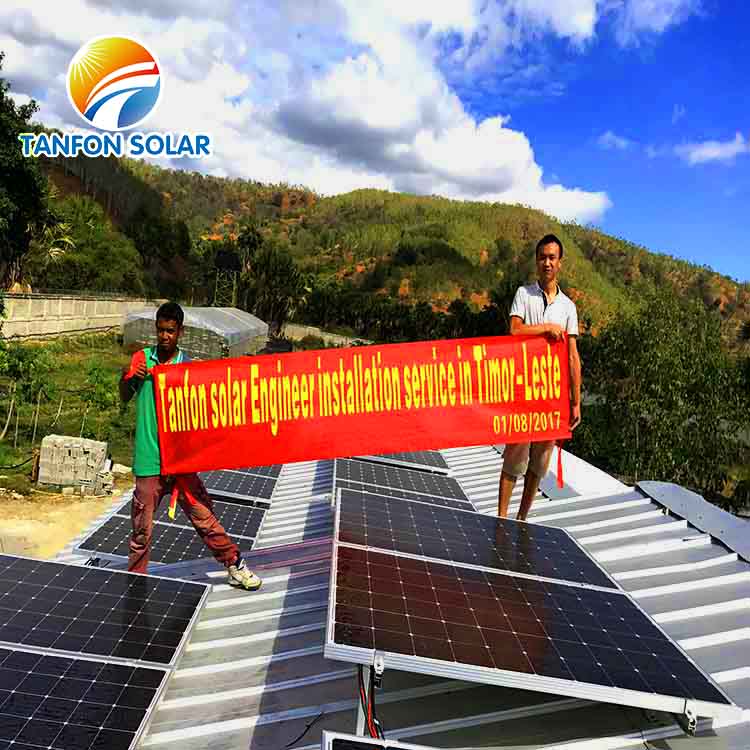

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

For our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local

solar power plant

Tanfon 25kw solar energy system
solar energy system FS360w solar panel 50pcs
H8T PV combiner 1pc
240V/100A solar controller 1pc
TF25KW solar inverter 1pc
96V/240AH Lithium battery 1pcs
solar panel rack 1set
Battery cable+PV cable 1set
Packaging Information Total volume;4.12CBM     Total weight:1138KG
Installation area solar panel:100m²             inverter+battery:6-10m²

Lithium battery storage 25kw solar power plant

High-end solar storage system

solar power plant

FS350W mono solar panel(poly optional)

Vmp:38.39V  Voc:47.13V

Imp 9.25A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass:3.2mm Tem pered

Terminal block:IP65 with MC4 connector

Efficiency performance :25 years 80 % 20 year 85% 10 years 90%

solar power plant

PV combiner

Model:H6T-192v  Multiple PV strings inputs

and controller, Prevent hot spot effect

Reliable thunderstorm& surge protection

Product Size:400*425*145mm

PV  controller model:192V/120A  23kw

Charging efficiency; 90%-95%,

charging mode, intelligent control.,

various protection functions;

solar power plant

Pure sine wave inverter;25kw DC input:192v

WiFi signal receiving module

AC charger 15-20A

100% Germany brand IGBT materials

Double protection, easy after sales service

O/P:110V,220VAC 50HZ or 60HZ

Product Size:590*470*730mm

Solar battery

1)Gel battery,2 years warranty.

ship NEW for service.

2)Lithium battery,3 years warranty.

ship NEW for service.

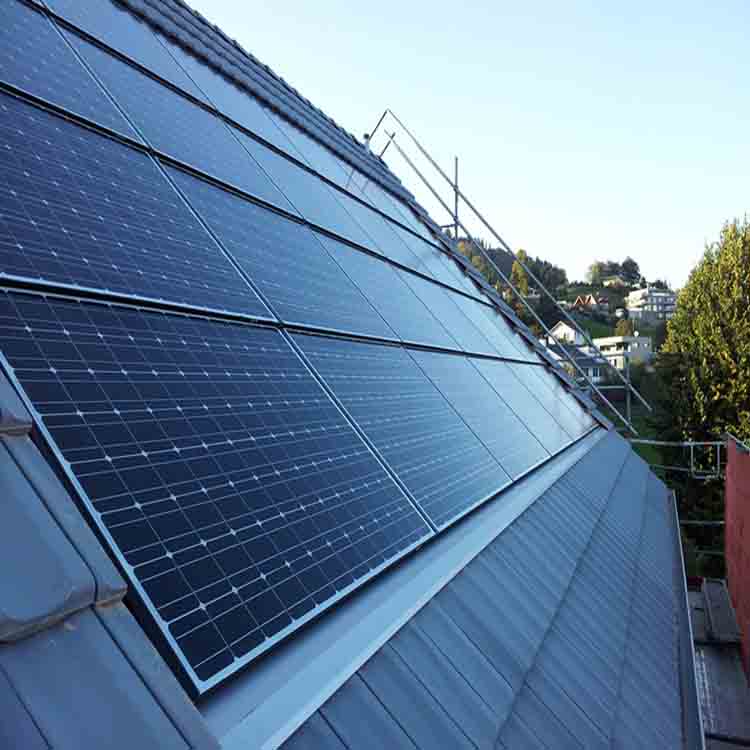

Slope Rooftop or Flat rooftop

including complete fittings

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

solar power plant

1)4pcs 16mm2*2M battery cable.

2)4mm2 PV cable 200M,100M black 100M red.

3)1set PV terminals and MC4

4)2P 100A Battery switch and box

Remark:

Compared with the traditional solar battery,it saves space and doubles the lifespan.Can be well used in home solar system,commerical solar systems, and industrial solar systems.



                  How to control solar power plant system(solar panel)  quality?
System System Essentials Pictures

Supply

System

1. Solar cell: Dark color, black, no color difference

2. Solar Cell shape: corner piece

3. Solar cell efficiency: 21%

solar power plant

Production

System

1. Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

2. EL test of the solar cell by EL device to ensure that the solar cell is not cracked

3. Components are fully automated production line operations

solar power plant
QC System

1. EL tester tests the solar cell to ensure no cracks

2. The component tester performs EL and data testing before component packaging to ensure data is acceptable and components are not cracked.

3. Component products are monitored with data from a tester to ensure data is correct

solar power plant

solar power plant

Packaging

System

1. Can be packed in carton box or wooden cases

2. The solar panel is in an upright packaging mode to reduce the transport breakage rate

solar power plant
Factory Inspection System QC inspection qualified products, distinguish the identification zone placement, ensure the shipment quantity, model, customer name is correct.
After Sales Service System Free replacement of new solar panel during the 10-year warranty period if have any quality problem.

Solar panel production video: Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

              How to control solar power plant system(Solar Inverter) quality?
System System Essentials Pictures

Supply

System

1. Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier.

2. MOS tube adopts imported IR brand

3. SCR adopts imported from Germany

4. IGBT adopts Japanese Mitsubishi brand

solar power plant

solar power plant

Production

System

Wall-mounted inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability solar power plant
QC System ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate. solar power plant

Packaging

System

Power lower than 1KW inverter carton packaging, containing pearl cotton; power higher than 2KW inverter plywood wooden box packaging, containing pearl cotton. One piece one packaging. solar power plant
Factory Inspection System Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable. solar power plant
After Sales Service System All inverters are free to send new spare boards within the warranty. For more services, please click the link to view.

Solar inverter board production: use automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability.



Factory inspection:



Tanfon solar certification:



Solar system application:

solar power plant

solar power plant

solar power plant
