Three in one plug and play 3000W portable solar power generator

Product Specification:
  • Type : All in one solar generator
  • Brand Name : TANFON
  • Model Number : SCB3000W
  • Output Power : 3KW
Inquiry Now
Product Details
One-stop service
Customer Feedback

solar home system

TANFON advantages:

1. The most competitive price in the whole network

2. 12 years of installation experience, with global service centers

Solar power generator advantages:

1. Small size, light weight, environmental protection, no noise, maintenance-free, portable.

2. Gel battery and lithium battery optional,service life 5-8 years

3. Universal socket, suitable for all countries

4. Easy to install, even an 80-years elder can install well.

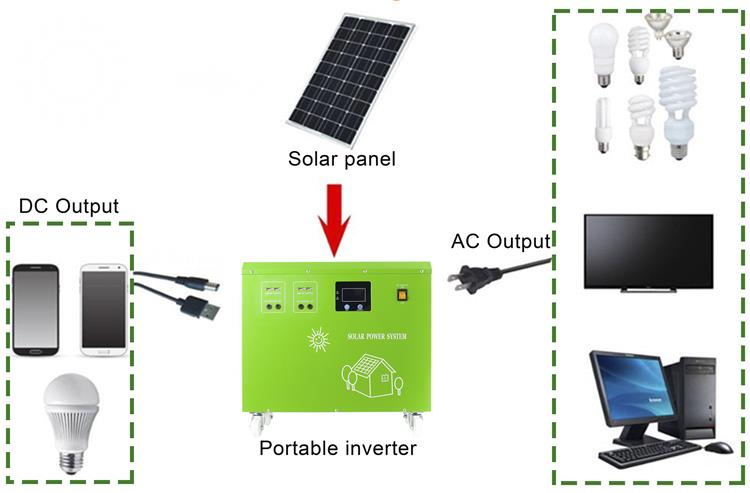

5.Everything in 1 solar generator MPPT controller,pure sine wave inverter,battery All in one.portable plug and play

6.For camping/boating/RV/Home use

solar power generator

Features and function

1.for light, radio, DVD, TV set, fans, freezer, computers, small hand-drill, and the other house appliance

2.Rate power 500w-3kw,pure sine wave output

3.MPPT solar charge controller,15A grid charger,with Gel battery

4.The mains supply mode/energy-saving mode/battery mode can be set for flexible

5.Convenient and practical 5VDC-USB output port and 12VDC output port

6.Overcharge protechon and overdischarge protection for a longer battery life

7.Safe and reliable with intelligent exhaust fan control

8.Overall automatic protection and alarms induding AC output overload protection . short arcuit protection

Model SCL-3000W
Battery Voltage 24V
Inverter
Rated power 5000VA/3000W
Input Voltage Range 140-275V
Input Frequency 45-65HZ
Output Voltage 220VAC
Output Frequency 50/60HZ
Output Wave Sine Wave
Speficifation Of Built-in Lifepo4 Battery 24V200AH
Communication RS232
Working model 01:City power priority 02:Energy Saving mode 03:Solar Power Priority
Solar Input
Max.PV power 1440W
Max.PV voltage ≤50VDC
Range of charging Voltage 20-50VDC
Rated charge current 30A
Voltage For Overcharge Protection 28.4VDC
Voltage For Overcharge Recovery 28VDC
Voltage For Floating Charge 27.4VDC
DC Output
Voltage For High Voltage Protection 32VDC
High Voltage Recovery Voltage 30.2VDC
Low Voltage Recovery Voltage 25.2VDC
Low Voltage Protection Voltage 22VDC
5V DC USB Output 2pcs*2A
12V DC Output Ports 2pcs*2A
PHYSICAL
Heat Dissipation/Cooling Temperature control by intelligent exhaust fan
Display Digital LCD
Electricity Charging YES
Extermal Size:W*D*H(mm) 475*455*365mm
Package Size:W*D*H(mm) 525*545*415mm
G.W.(Gross Weight) 56kg

solar power systemsolar power systemAfter sales service:

All inverters are free to send new spare boards within the warranty. For more services, please contact our team
