10kw / 10kva Solar Panel System Off Grid Power Kit Price In Philippines

Product Specification:
  • Brand Name : TANFON SOLAR
  • Model Number : solar system 10kw
  • DC voltage : 48V / 96v
  • Output voltage : 110V / 220V
  • Battery type : lithium or gel Battery
  • Advantage : German Technology
Inquiry Now
Product Details
One-stop service
Customer Feedback



Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.

For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification

For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

For our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local



10kva Solar Panel System Off Grid Power Kit

FS350w solar panel 20pcs
H6T PV combiner 1pc
96V/100A solar controller 1pc
TF10KW solar inverter 1pc
96V/240AH Lithium battery 1pcs
solar panel rack 1set
Battery cable+PV cable 1set
Packaging Information Total volume;4.12CBM    Total weight:1138KG
Installation area solar panel:40m²              inverter+battery:6-10m²



10kw / 10kva Solar Panel System Off Grid Power Kit

solar power system

FS350W mono solar panel(poly optional)

Vmp:38.39V  Voc:47.13V

Imp 9.25A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass:3.2mm Tem pered

Terminal block:IP65 with MC4 connector

Efficiency performance :25 years 80 % 20 year 85% 10 years 90%

solar power system

Model:H6T-96v Multiple PV strings inputs

and controller, Prevent hot spot effect

Reliable thunderstorm& surge protection

Product Size:400*425*145mm

solar power system

controller+inverter

PV  controller model:96V/60A

Charging efficiency; 90%-95%,

charging mode, intelligent control.,

various protection functions;

IGBT Inverter:5KW96VDC

110V/120V/220V/230V/240VAC output,

City power and generator charger build in Overload, overcharge, over-discharge protection  Fuji brand IGBT material

solar power system

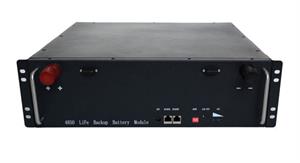

lithium battery

Capacity:96V/240AH

Rate voltage:3.2V*15S3P

Max. Charge Voltage:109V

Discharge cut-off voltage:84V

Charge Current:100A

solar power system

Slope Rooftop or Flat rooftop

including complete fittings

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

solar power system

1)4pcs 16mm2*2M battery cable.

2)4mm2 PV cable 100M,50M black 50M red.

3)1set PV terminals and MC4

4)1P 63A Battery switch and box



Remark:

Compared with the traditional solar battery,it saves space and doubles the lifespan.Can be well used in home solar system,commerical solar systems, and industrial solar systems.
