15kw / 15kva Solar Panel System Off Grid Power Kit Price In Philippines

Product Specification:
  • Brand Name : TANFON SOLAR
  • Model Number : solar system 15kw
  • DC voltage : 96V / 192V
  • Output voltage : 110V / 220V
  • Battery type : lithium or gel Battery
  • Advantage : German Technology
Inquiry Now
Product Details
One-stop service
Customer Feedback



Tanfon Supply: Free site survey, design, production, installation, maintenance with our sophiscaticated one-stop service.

For the products, Each set solar power system has power on&off test 100 times per hour.Each step of production is under strict quality control. Our products are qualified with CE, ROHS, ISO, SGS certification

For our project case: Our products have been sold to more than 120 countries, (solar home project,solar school project ,solar hospital project,solar farm project ,solar hotel project,solar air port project ,solar millitary project ,Solar energy water treatment equipment project,solar goverment project etc)

we have a professional installation team, which has been to 32 countries and regions ( Egypt, Bangladesh, Chad, Nigeria,Thailand,Ghana, Doha, East Timor state, Pakistan, kenya ,indonesia ,Dubai,Mozambique etc.) for installation service. We also win many good feedbacks from the customers.

For our Global service in Thailand,Kenya,Senegal,Mozambique,will build 120 service centers all over the world. Give strong after-sales service in Local



15kva Solar Panel System Off Grid Power Kit Price

FS375w solar panel 32pcs
H6T PV combiner 1pc
192V/100A solar controller 1pc
TF15KW solar inverter 1pc
192V/200AH Lithium battery 1pcs
solar panel rack 1set
Battery cable+PV cable 1set
Total volume;8CBM  Total weight:3325KG
Packaging Information Total volume;1.56CBM   Total weight:453KG
Installation area solar panel:64m²             inverter+battery:6-10m²



15kw Off Grid Solar System Price In Philippines

High-end solar storage system

15KW Off Grid  Solar Power System Kit

FS350W mono solar panel(poly optional)

Vmp:38.39V  Voc:47.13V

Imp 9.25A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass:3.2mm Tem pered

Terminal block:IP65 with MC4 connector

Efficiency performance :25 years 80 % 20 year 85% 10 years 90%

15KW Off Grid  Solar Power System Kit

PV combiner

Model:H4T-192v Multiple PV strings inputs

and controller   Prevent hot spot effect

Reliable thunderstorm& surge protection

Product Size:400*425*145mm

15KW Off Grid  Solar Power System Kit

PV  controller model:192V/80A

Charging efficiency; 90%-95%,

charging mode, intelligent control.,

various protection functions;

15KW Off Grid  Solar Power System Kit

Pure sine wave inverter;15kw, DC input:192v

WiFi signal receiving module

AC charger 15-20A

100% Germany brand IGBT materials

Double protection, easy after sales service

O/P:110V,220VAC

Product Size:590*470*730mm

15KW Off Grid  Solar Power System Kit

Solar battery

1)Gel battery,2 years warranty.

ship NEW for service.

2)Lithium battery,3 years warranty.

ship NEW for service.

15KW Off Grid  Solar Power System Kit

Slope Rooftop or Flat rooftop

including complete fittings

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

15KW Off Grid  Solar Power System Kit

1)4pcs 16mm2*2M battery cable.

2)4mm2 PV cable 200M,100M black 100M red.

3)1set PV terminals and MC4

4)1P 63A Battery switch and box



Remark:

Compared with the traditional solar battery,it saves space and doubles the lifespan.Can be well used in home solar system,commerical solar systems, and industrial solar systems.



Get 15KW Solar System Price in Philippines Now

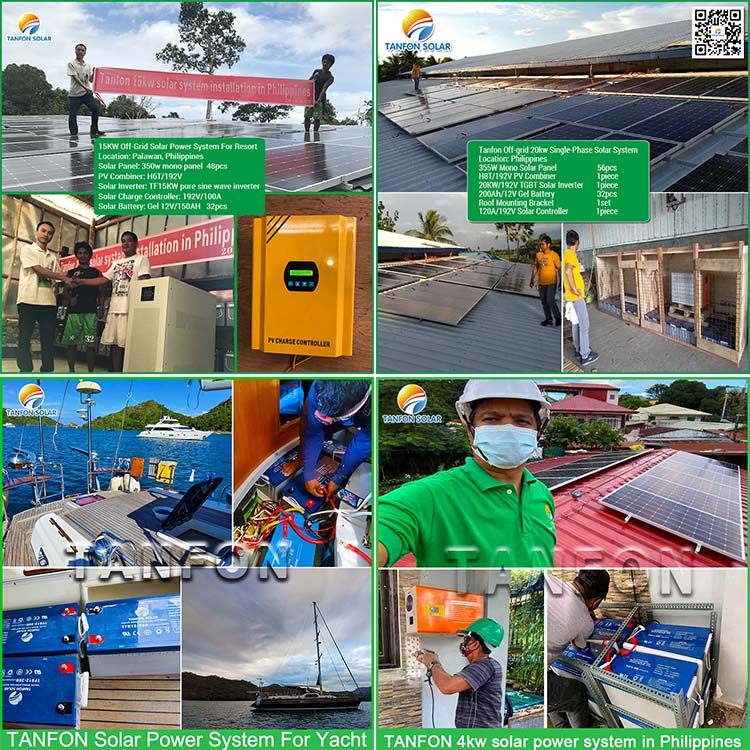

Tanfon Philippines Case Feedback:

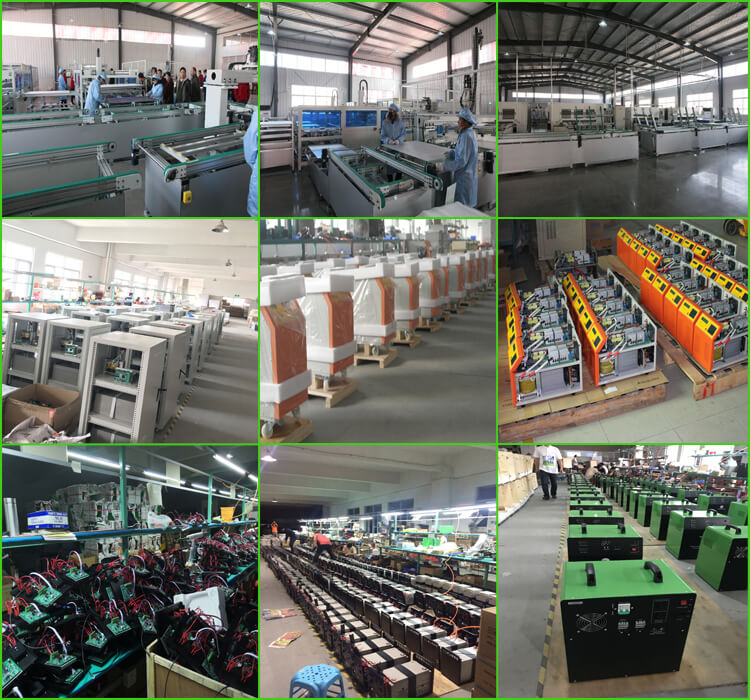

Tanfon Solar Factory:



Packing and shipping:
