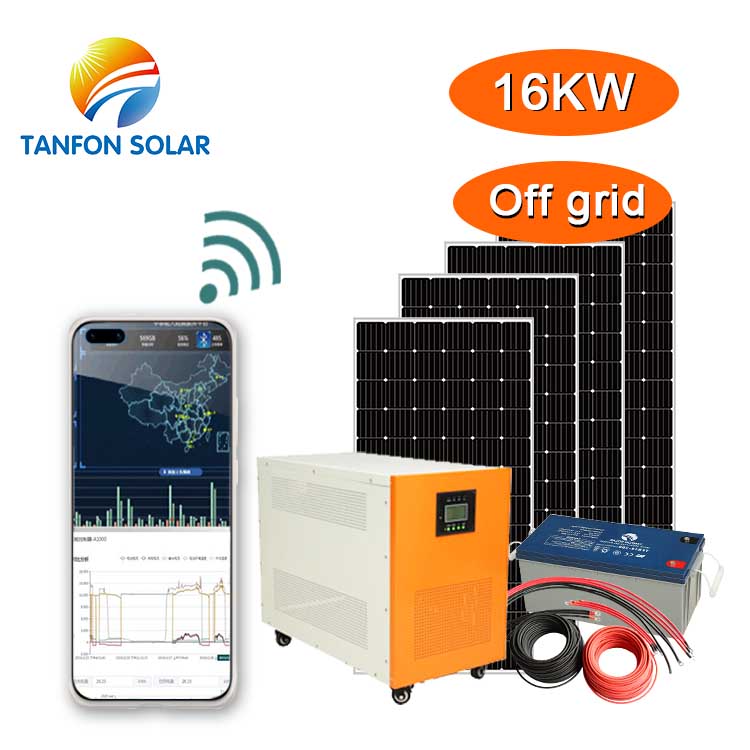

16kw 16kva Off Grid Solar Power System With Battery Storage

Product Specification:
  • Brand Name : TANFON SOLAR
  • Model Number : Solar Power System 16kw
  • DC voltage : 48V/96V
  • Output voltage : 110V/220V
  • Advantage : German Technology
  • Certificate : ISO, ETL, TUV, CE, RoHS
  • Payment : T/T, L/C, Paypal, Western Union
Inquiry Now
Product Details
One-stop service
Customer Feedback



16kw Off Grid Solar Power System For Home
16kva Off Grid Solar System FS350w solar panel 40pcs
H6T PV combiner 1pc
96V/100A solar controller 1pc
TF16KW solar inverter 1pc
96V/240AH Lithium battery 1pcs
solar panel rack 1set
Battery cable+PV cable 1set
Packaging Information Total volume;4.12CBM    Total weight:1138KG
Installation area solar panel:40m²              inverter+battery:6-10m²

16kva Off Grid Solar Power System

High-end solar storage system

16kva Off Grid Solar System Price

FS350W mono solar panel(poly optional)

Vmp:38.39V  Voc:47.13V

Imp 9.25A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass:3.2mm Tem pered

Terminal block:IP65 with MC4 connector

Efficiency performance :25 years 80 % 20 year 85% 10 years 90%

16kw Off Grid Solar System Price

Model:H6T-96v Multiple PV strings inputs

and controller, Prevent hot spot effect

Reliable thunderstorm& surge protection

Product Size:400*425*145mm

16kw Off Grid Solar System Cost

controller+inverter

WiFi signal receiving module

PV  controller model:96V/60A

Charging efficiency; 90%-95%,

charging mode, intelligent control.,

various protection functions;

IGBT Inverter:16KW96VDC

110V/120V/220V/230V/240VAC output,

City power and generator charger build in Overload, overcharge, over-discharge protection  Fuji brand IGBT material

16kw Solar System Home

Solar battery

1)Gel battery,2 years warranty.

ship NEW for service.

2)Lithium battery,3 years warranty.

ship NEW for service.

16 kva Off Grid Solar System

Slope Rooftop or Flat rooftop

including complete fittings

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

16 kva Solar System

1)4pcs 16mm2*2M battery cable.

2)4mm2 PV cable 100M,50M black 50M red.

3)1set PV terminals and MC4

4)1P 63A Battery switch and box



Remark:

Compared with the traditional solar battery,it saves space and doubles the lifespan.Can be well used in home solar system,commerical solar systems, and industrial solar systems.



                        How to control solar power system(solar panel)  quality?
System 16kw Off Grid Solar Power System Pictures

Supply

System

1. Solar cell: Dark color, black, no color difference

2. Solar Cell shape: corner piece

3. Solar cell efficiency: 21%

16kw Solar System

Production

System

1. Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

2. EL test of the solar cell by EL device to ensure that the solar cell is not cracked

3. Components are fully automated production line operations

16kva Off Grid Solar System With Battery
QC System

1. EL tester tests the solar cell to ensure no cracks

2. The component tester performs EL and data testing before component packaging to ensure data is acceptable and components are not cracked.

3. Component products are monitored with data from a tester to ensure data is correct

16kw Off Grid Solar System With Battery

16kw Off Grid Solar System With Battery

Packaging

System

1. Can be packed in carton box or wooden cases

2. The solar panel is in an upright packaging mode to reduce the transport breakage rate

16kw Solar System With Battery

Factory Inspection System

QC inspection qualified products, distinguish the identification zone placement, ensure the shipment quantity, model, customer name is correct.
After Sales Service System Free replacement of new solar panel during the 10-year warranty period if have any quality problem.

Solar panel production video: Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

              how to control solar power system(Solar Inverter) quality?
System System Essentials Pictures

Supply

System

1. Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier.

2. MOS tube adopts imported IR brand

3. SCR adopts imported from Germany

4. IGBT adopts Japanese Mitsubishi brand

16kw Off Grid Solar System

16kw Off Grid Solar System

Production

System

Wall-mounted inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability 16kw Off Grid Solar System
QC System ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate. 16kw Off Grid Solar System Home

Packaging

System

Power lower than 1KW inverter carton packaging, containing pearl cotton; power higher than 2KW inverter plywood wooden box packaging, containing pearl cotton. One piece one packaging. 16kw Off Grid Solar System Cost
Factory Inspection System Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable. 16kw Off Grid Solar System Cost
After Sales Service System All inverters are free to send new spare boards within the warranty. For more services, please click the link to view.
