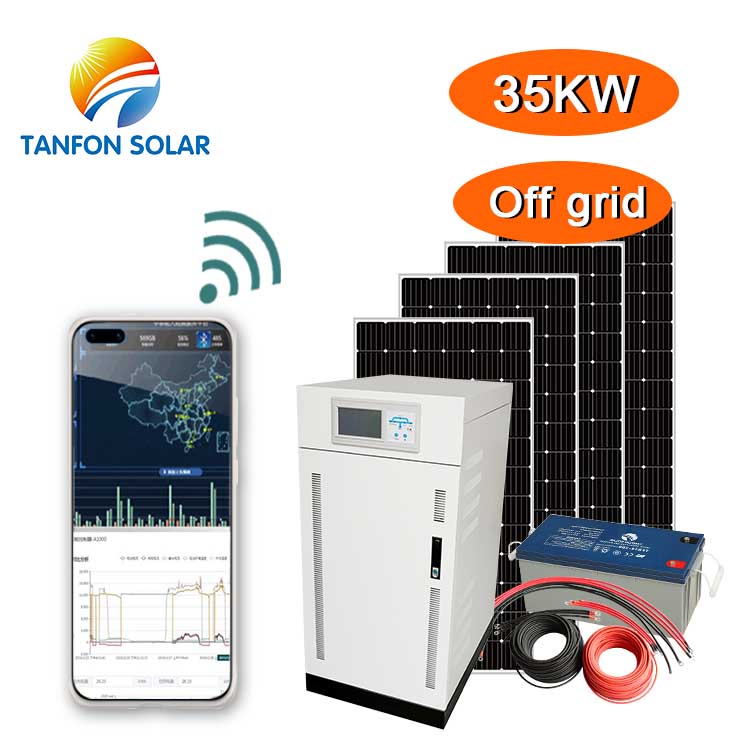

Off Grid Solar System 35kw 35kva With Battery Power Storage

Product Specification:
  • Brand Name : TANFON
  • Model Number : 35KW Solar Power System
  • DC voltage : 360V
  • Output voltage : 220V/380V
  • Advantage : German Technology
  • Certificate : ISO, ETL, TUV, CE, RoHS
  • Payment : T/T, L/C, Paypal, Western Union
Inquiry Now
Product Details
One-stop service
Customer Feedback



Off Grid Solar System 35kva With Battery Power Storage

High-end solar storage system

Off Grid Solar System 35kw

FS380W mono solar panel(poly optional)

Vmp:38.39V  Voc:47.13V  Imp 9.75A

Size : 1956*992*40mm

25 years life time  (CE TUV)

Coated steel Glass:3.2mm Tem pered

Terminal block:IP65 with MC4 connector

Efficiency performance :25 years 80 % 20 year 85% 10 years 90%

Connect:each 13pcs in series, 4strings in series

35 kw Off Grid Solar System

PV combiner

Model:H6T-360v  Multiple PV strings inputs

Simplify wiring between PV array

and controller, protections  to controller ,

Wide range of DC input voltage

Reliable thunderstorm& surge protection

35kva Off Grid Solar System

MPPT controller model: 360V/100A

Charging efficiency; 90%-95%,

charging mode, intelligent control.,

various protection functions;

Can read daily,monthly and total power generation

35 kva Off Grid Solar System

Pure sine wave inverter 35KW/360VDC input

Use copper transformer;

Bypass function with AC charger;

Product size:785*580*1197mm  Weight:400KG

Output: 220V 380V 415V 50/60HZ

35kw Off Grid Solar System Price

 Gel battery

Capacity:12V/200AH  full sealed Solar power

gel battery, Service life:6-8 years, Size:522*240*219mm

Connect way: each 30pcs in series ,2 strings in parallel

35kw Off Grid Solar System Cost

Slope Rooftop or Flat rooftop

including complete fittings

wind load:55m/s,snow load:1.5kn/m2

structure:Anodized Aluminum+stainless steel, Angle adjustable

35kw Off Grid Solar System

1)58pcs 16mm2*35CM battery cable

4pcs 16mm2*2M battery cable

25mm 20M power cable

2)4mm2 PV cable 100M*2pcs

3)terminals and MC4+2P100A Power switch box



More Power Types;

10kva Off Grid Solar Power System For Home

15KW Solar Power System Kit With Battery

20kva Solar Kit System Energy Power

25kw Off Grid Solar Energy Storage Systems Kit With Battery



                  How to control solar power system (solar panel)  quality?
System System Essentials Pictures

Supply

System

1. Solar cell: Dark color, black, no color difference

2. Solar Cell shape: corner piece

3. Solar cell efficiency: 21%

35kw Off Grid Solar System

Production

System

1. Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment

2. EL test of the solar cell by EL device to ensure that the solar cell is not cracked

3. Components are fully automated production line operations

35kw Off Grid Solar System
QC System

1. EL tester tests the solar cell to ensure no cracks

2. The component tester performs EL and data testing before component packaging to ensure data is acceptable and components are not cracked.

3. Component products are monitored with data from a tester to ensure data is correct

35kw Off Grid Solar System

35kw Off Grid Solar System

Packaging

System

1. Can be packed in carton box or wooden cases

2. The solar panel is in an upright packaging mode to reduce the transport breakage rate

35 kw Off Grid Solar System
Factory Inspection System QC inspection qualified products, distinguish the identification zone placement, ensure the shipment quantity, model, customer name is correct.
After Sales Service System Free replacement of new solar panel during the 10-year warranty period if have any quality problem.

Solar panel production video: Classification of solar cell with different colors, powers and efficiencies using automatic sorting equipment



              How to control solar power system(Solar Inverter) quality?
System Off Grid Solar System 35kw 35kva With Battery Pictures

Supply

System

1. Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier.

2. MOS tube adopts imported IR brand

3. SCR adopts imported from Germany

4. IGBT adopts Japanese Mitsubishi brand

35kw Off Grid Solar System

35kw Off Grid Solar System

Production

System

Wall-mounted inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability 35kw Off Grid Solar System
QC System ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate. 35kw Off Grid Solar System

Packaging

System

Power lower than 1KW inverter carton packaging, containing pearl cotton; power higher than 2KW inverter plywood wooden box packaging, containing pearl cotton. One piece one packaging. 35kw Off Grid Solar System
Factory Inspection System Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable. 35kw Off Grid Solar System
After Sales Service System All inverters are free to send new spare boards within the warranty. For more services, please click the link to view.

Solar inverter board production: use automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability.
